Transition Networks MEDIA CONVERTER A-CF-01 User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS

Standards
ATM UNI 3.1 #AF-PHY-0015
Case dimensions
3.9" x 3.0" x 1.0"
Environment
Temperature:
Humidity
Altitude
Warranty
Lifetime

Power Supply Requirements

Replace power supply with only the equivalent input
rating (see below) and output rating (regulated 9VDC at 0.5 A).
TN PN Requirement
3517 240 volts, 50 hertz
3516 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3515 240 volts, 50 hertz
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1997 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(99mm x 76mm x 25mm)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
33021.D
25/155 Mb/s ATM
Copper-to-Fiber Media Converter
A-CF-01, A-CF-01(SM)
USER'S GUIDE

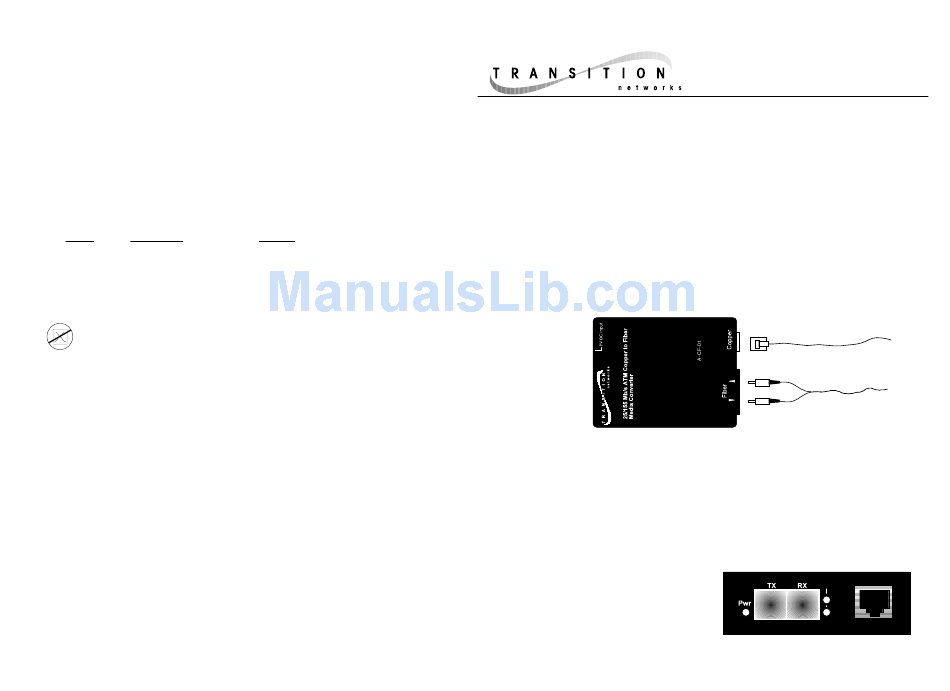

The TRANSITION Networks ATM (Asynchronous Transfer Mode) copper-to-
fiber media converters connect twisted-pair copper cable network segments to
multimode fiber optic cable network segments (using A-CF-01) OR to
singlemode fiber optic cable network segments (using A-CF-01(SM)).
The ATM media converters provide network connection using an RJ-45 twisted-
pair ATM connector and a set of RX (receive) and TX (transmit) SC-type ATM fiber
connectors. NOTE: Effective cable distances are determined by ambient RF noise
and by signal loss in the cable. The fiber connection, with low signal loss and high
resistance to radio frequency noise, allows extended distances between ATM
devices. Twisted-pair runs are best kept as short as possible to preserve signal
integrity.
Status LEDs on the connector side of the media converter provide the following
information:
Pwr (Power) Illuminated
green LED indicates
connection to external
AC power.
Activity Steady green LED
(Fiber)
indicates the fiber port is active.
Activity Steady green LED indicates the twisted-pair port is active.
(Copper)
Minneapolis, MN 55344 USA
UTP
Fiber
Activity
Fiber
Copper
Fiber Copper
Link
