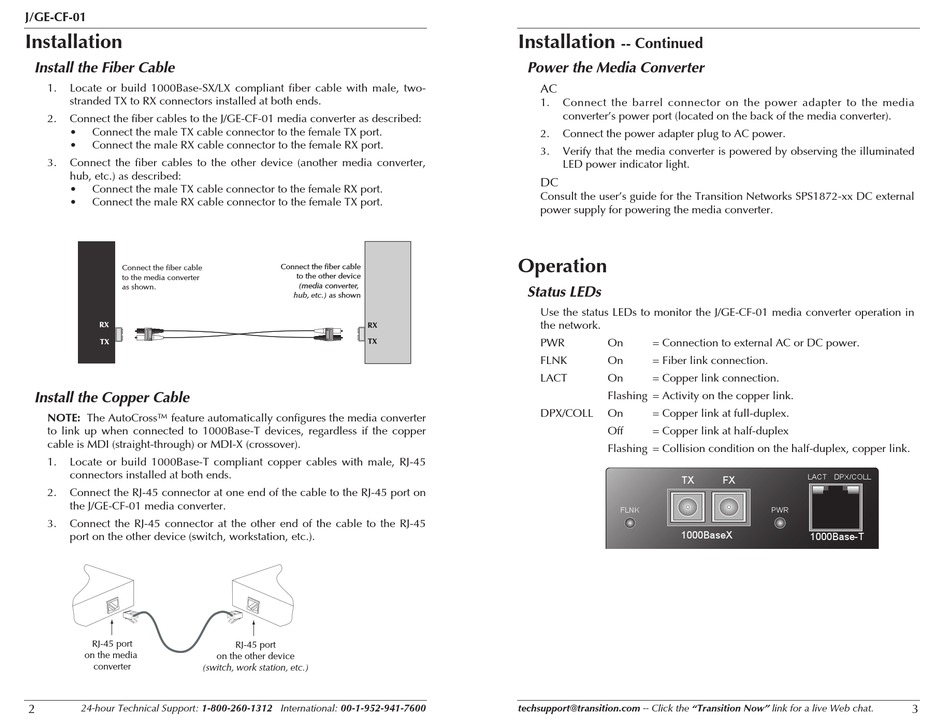

Installation

Install the Fiber Cable

1. Locate or build 1000Base-SX/LX compliant fiber cable with male, two-
stranded TX to RX connectors installed at both ends.
2. Connect the fiber cables to the J/GE-CF-01 media converter as described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Connect the fiber cable
to the media converter
as shown.
RX
TX

Install the Copper Cable

NOTE: The AutoCross™ feature automatically configures the media converter
to link up when connected to 1000Base-T devices, regardless if the copper
cable is MDI (straight-through) or MDI-X (crossover).
1. Locate or build 1000Base-T compliant copper cables with male, RJ-45
connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the J/GE-CF-01 media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (switch, workstation, etc.).
RJ-45 port
on the media
converter
(switch, work station, etc.)
2 24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
Connect the fiber cable C C Connect the fiber cable
to the other device to the other device
(media converter, (media converter, r r
hub, etc.) as shown
hub, etc.) as shown
RX
TX
RJ-45 port
on the other device
Installation
-- Continued

Power the Media Converter

AC
1. Connect the barrel connector on the power adapter to the media
converter's power port (located on the back of the media converter).
2. Connect the power adapter plug to AC power.
3. Verify that the media converter is powered by observing the illuminated
LED power indicator light.
DC
Consult the user's guide for the Transition Networks SPS1872-xx DC external
power supply for powering the media converter.

Operation

Status LEDs
Use the status LEDs to monitor the J/GE-CF-01 media converter operation in
the network.
PWR On = Connection to external AC or DC power.
FLNK On = Fiber link connection.
LACT On = Copper link connection.
Flashing = Activity on the copper link.
DPX/COLL On = Copper link at full-duplex.
Off = Copper link at half-duplex
Flashing = Collision condition on the half-duplex, copper link.
TX
FLNK
1000BaseX
