Transition Networks ARCNET AR-CF-02 User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards
ANSI/ATA 878
Delay
300ns one-way
Case dimensions
4.75" x 3.0" x 1.0"
Shipping Weight
2 pounds
Environment
Temperature:
Humidity
Altitude
Warranty
Five years
Power Supply Requirements
Replace power supply with only the equivalent
input rating (see below) and output rating (regulated 9VDC at 0.2 A).
TN PN Requirement
3525 240 volts, 50 hertz
3525 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3525 240 volts, 50 hertz
NOTE: This product also can be powered by the Transition Networks E-MCR series media
converter rack.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
ARCNET is a registered trademark of Datapoint Corporation.
All registered trademarks and trademarks are the property of their respective owners.
(119mm x 76mm x 25mm)
(0.9 kilograms)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
33095.B
®
ARCNET Coax Copper/Fiber
AR-CF-02, AR-CF-02(SC), AR-CF-02(SM)
USER'S GUIDE

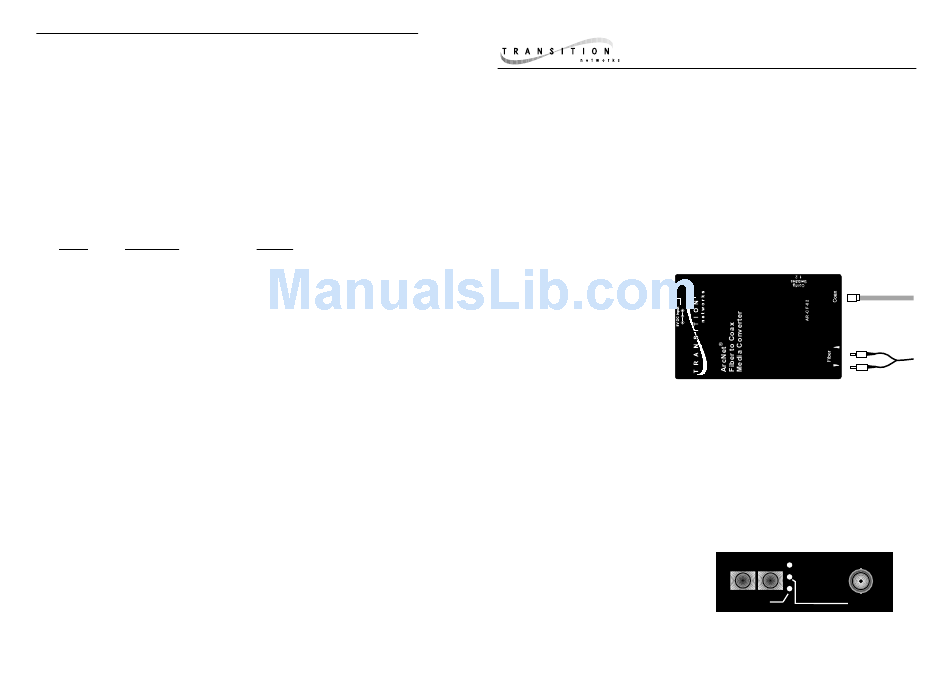

The TRANSITION Networks ARCNET
(AR-CF-02) extends the signal distance of an ARCNET
link up to 2 kilometers over fiber*, up to 600 meters over coax cable in a star
topology, and up to 300 meters over coax cable in a bus topology.
A switch on the media converter allows the media converter to be used to
terminate the link or node signal.
AR-CF-02
Provides a BNC
connector to coaxial
cable and a set of RX
(receive) and TX
(transmit) ST connectors
to multimode fiber-optic
cable.
AR-CF-02(SC)
Provides a BNC connector to
coaxial cable and an RX (receive)
and TX (transmit) SC connector to
multimode fiber-optic cable.
STATUS LEDS
Power Steady green LED indicates connection to external AC power.
Coax Blinking green LED
indicates network
traffic on coaxial cable
link.
Fiber Blinking green LED
indicates network traffic on fiber link.
*Consider carefully the network constraints imposed by the maximum latency
response time of installed equipment. Some equipment cannot handle the extended
response time that 2 kilometers of fiber introduces.
Minneapolis, MN 55344 USA

Media Converter

® Coax Copper/Fiber Media Converter
® segment or node
AR-CF-02(SM)
Provides a BNC connector to
coaxial cable and an RX (receive)
ST and TX (transmit) SC connector
to singlemode fiber-optic cable.
Power
TX RX
10BASE-T
Coax
Fiber
