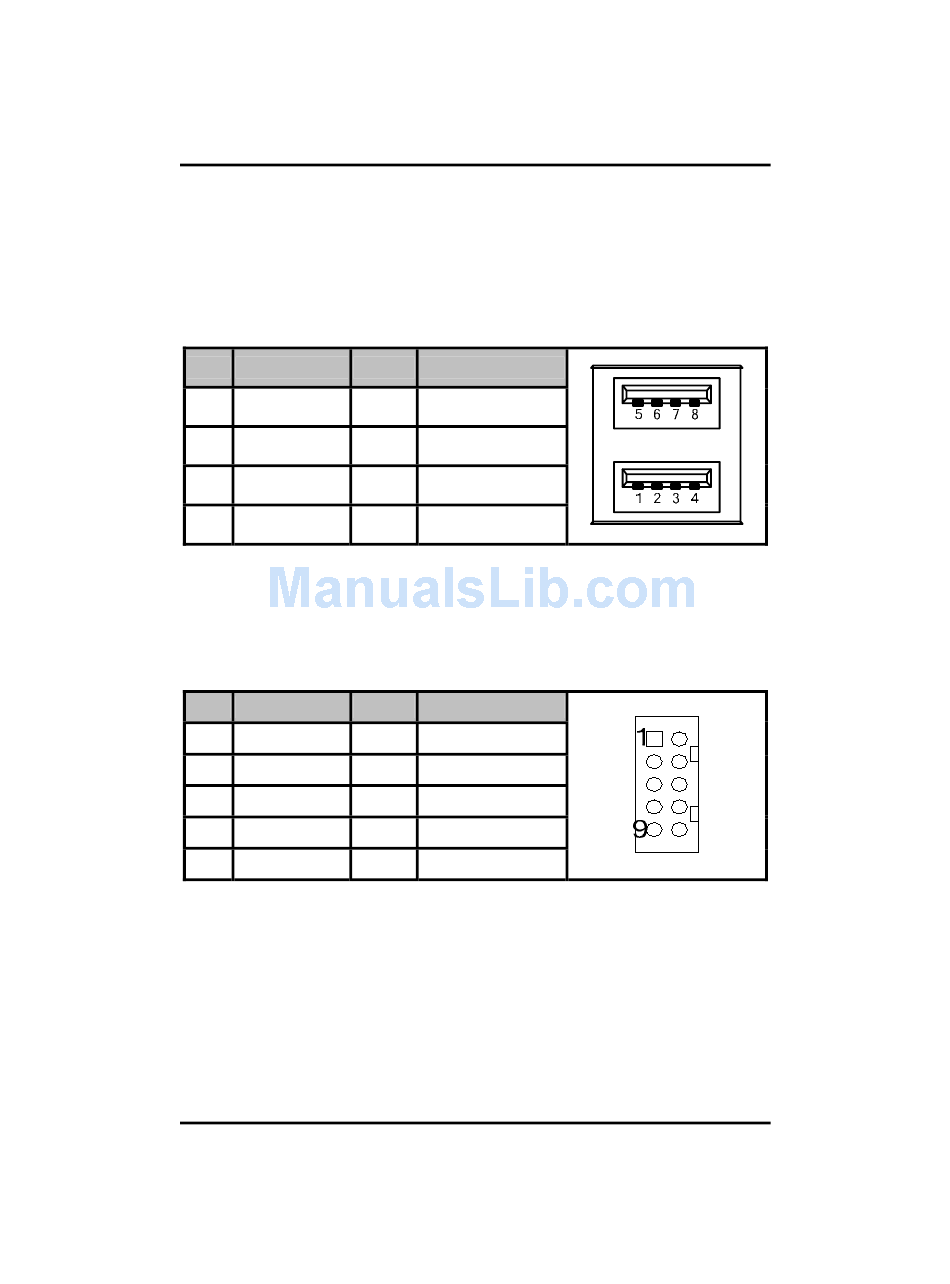

2.4.16 USB Port Connector (USB3)

The EP850 Series features Universal Serial Bus (USB) connectors,
compliant with USB 2.0 (480Mbps) that can be adapted to any USB
peripherals, such as monitor, keyboard and mouse.
USB3 is a double-deck USB port connector that consists of two 4-pin
standard USB ports.
Pin Signal
1 +5V
3 USB D0+
5 +5V
7 USB D1+

2.4.17 USB Connectors (USB1, USB2)

The Universal Serial Bus (USB) connector on the board is for the
installation of peripherals supporting the USB interface. USB1 and
USB2 is a 10-pin standard onboard USB connector.
Pin Signal
1 +5V
3 USB D2-
5 USB D2+
7 GND
9 GND
2.4.18 CompactFlash
The board is equipped with a CompactFlash
solder side to support an IDE2 interface CompactFlash
The socket is especially designed to avoid incorrect installation of the
TM
CompactFlash disk card. When installing or removing the
TM
CompactFlash disk card, please make sure the system power is off.
TM
The CompactFlash disk card is defaulted as the C: or D: disk drive in
your PC system.
Jumpers and Connectors
EP850 All-In-One EPIC Board User's Manual
Pin Signal
2 USB DO-
4 GND
6 USB D1-
8 GND
Pin Signal
2 +5V
4 USB D3-
6 USB D3+
8 GND
10 GND
™
Socket (SCF1)
TM
disk socket on the
TM
disk card.
