RealPresence Collaboration Server (RMX) 1800 Hardware Guide

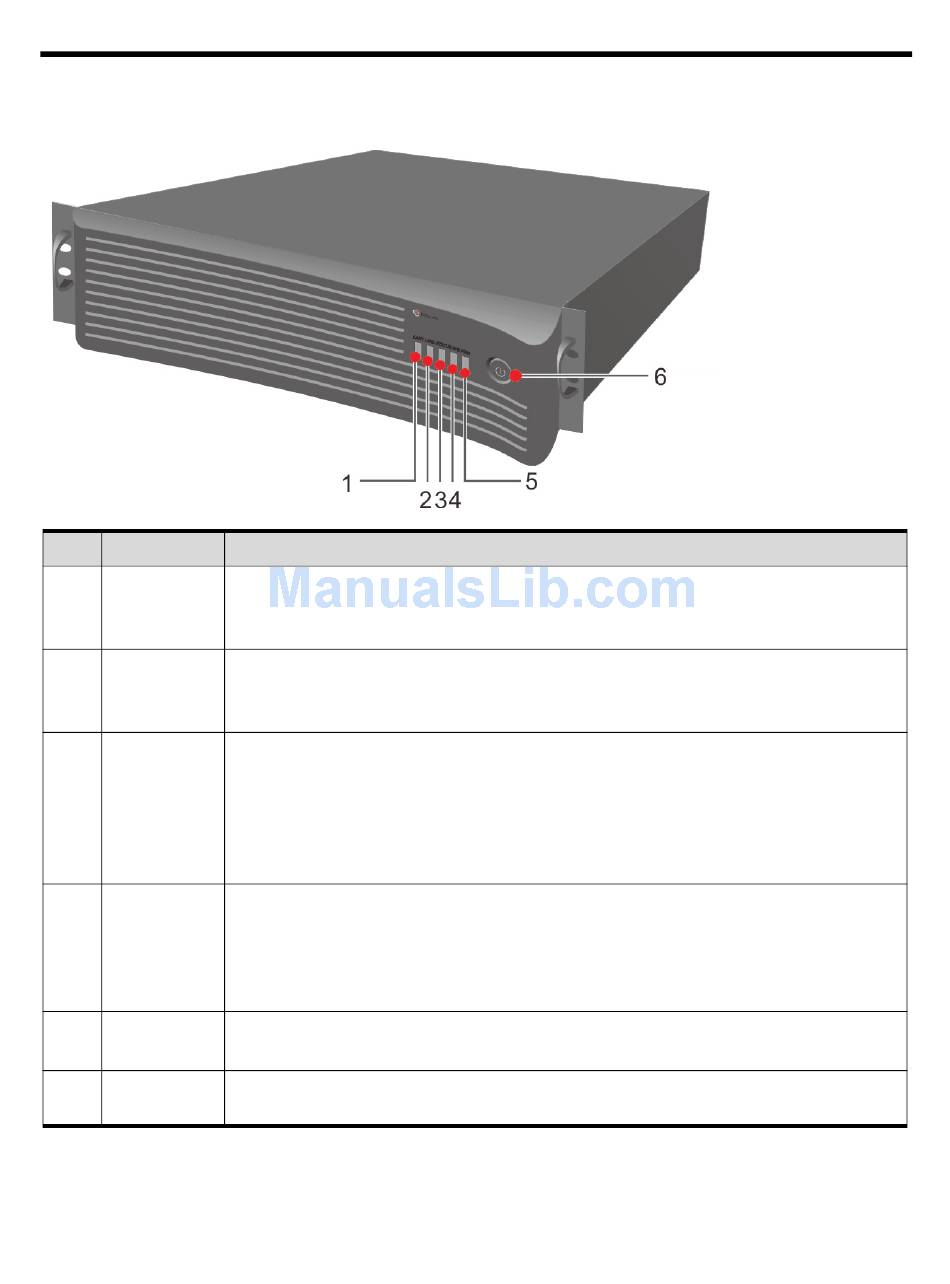

RealPresence Collaboration Server 1800 Front Panel

You can power on or off the system, and view the system status from its front panel.
No. Name
1 LAN 1 LED
2 LAN 2 LED
3 STATUS LED
4 M/S LED
5 PWR LED
6 ON/OFF
button
Polycom, Inc.
Description
Off - No network connection
Green - Network connected
Flickering green - In use
Off - No network connection
Green - Network connected
Flickering green - In use
Red - System alarms
Green - Endpoints are connected to a meeting
Flickering green - No system alarms and no endpoints connected to the meeting
Flickering blue - Diagnostic tests are running
Blue - Diagnostic tests are completed. Remove the USB key (if applicable) and restart the
system
Blue - System upgrade completed, waiting for reboot
Flickering blue - System upgrading in progress
Green - The system works normally, either in single mode, or as the master MCU in the hot
backup mode
Flickering green - The system works normally, as the slave MCU in the hot backup mode
Green - Power normal
Red - Power alarms
Power the RealPresence Collaboration Server 1800 System on or off.
