Summary of Contents for Bell and Howell Tr?per

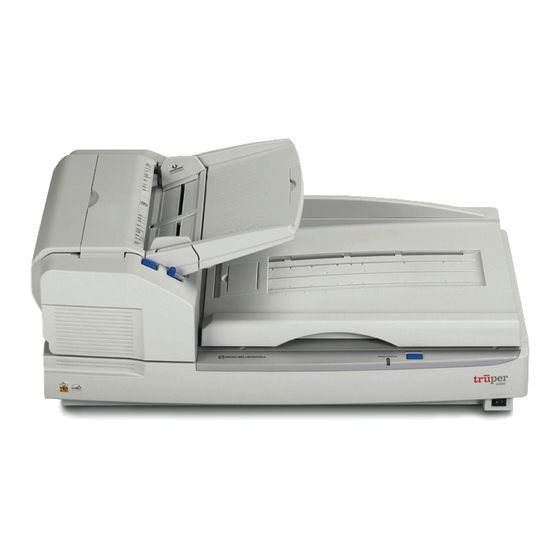

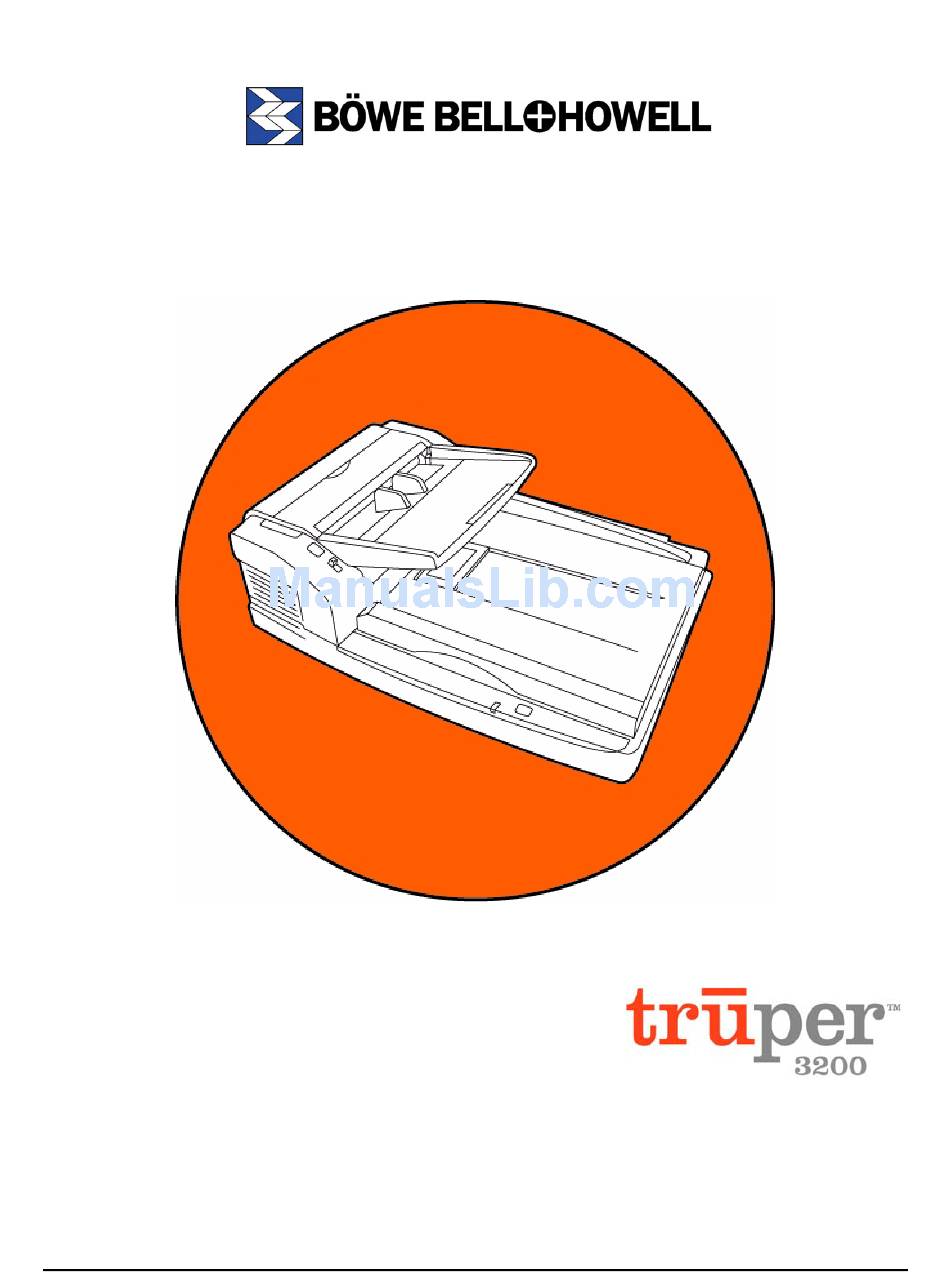

- Page 1 Trūper Advanced Features Manual Color Scanner Part Number S006078 Rev. B...
- Page 2 Böwe Bell + Howell Scanners Please read this manual for information about the proper installation, operation and maintenance of the scanner. Keep this documentation in a safe place for future reference. Disclaimer The instructions and descriptions contained in this document were accurate at the time of publishing. However, succeeding products and documents are subject to change without notice.
- Page 3 International Offices Centurion House, London Road Staines Middlesex TW18 4AX, England In Europe Telephone +44-1784-410-406 Fax +44-1784-410-303 Technical Support +44-1784-410-207 No. 2 room, 601 Tower W3, Oriental Plaza No. 1 East Chang An Ave, Dong Cheng Dist. Beijing, 100738 In Asia: China China (PRC) Telephone (86) 10 85181839 Fax +86-10-85181839...
-
Page 4: Trademark Acknowledgments
Trademark Acknowledgments ENERGY STAR® and the ENERGY STAR certification mark are registered U.S. marks. ® ® ® Windows 2000 is Microsoft Windows 2000 operating system. ® ® ® Windows XP is Microsoft Windows XP operating system. ® ® Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. -
Page 5: Typographical Conventions
Typographical Conventions This table describes the typographical conventions used in this manual. Items Convention Names of buttons, links, These items appear in bold typeface. menus, check boxes, radio Examples: buttons, lists, and fields • Click the Next button. found with software •... -
Page 6: Table Of Contents
Table of Contents Trademark Acknowledgments ..........4 Typographical Conventions . - Page 7 2.5.3 Patchcode Detection ..........23 2.5.4 Image Scaling .
- Page 8 3.6.13 Skeleton ............44 3.6.14 Smoothing .
-
Page 9: Introduction
1.0 Introduction This manual provides detailed information, including descriptions and procedures, for using the Trūper scanner’s advanced feature set. Along with VRS (VirtualReScan), the Trūper scanner can enhance image quality, enable faster scanning processes, and make it possible to customize how your documents are scanned. -
Page 10: Using Vcdemo With The Vrs Driver
2.0 Using VCDemo with the VRS Driver This section describes how to set parameters for the way in which documents are scanned using VirtualReScan with the VRS driver. This section contains the following topics: • “2.1 Scanner Properties” on page 11 •... -
Page 11: Scanner Properties
2.1 Scanner Properties The Scanner Properties window allows you to specify how documents are to be scanned. This includes setting the resolution, page orientation, color preferences, and whether documents are scanned in simplex or duplex mode. 2.1.1 Source The Source drop-down list is used to select how the document is to be fed into the scanner. If Flatbed is selected, documents are scanned from the glass and can only be scanned single-sided. -
Page 12: Paper Size
2.1.4 Paper Size Use the Paper Size option to specify the size of the documents to be scanned. Refer to the Trūper Operator Manual for a list of page sizes. 2.1.5 Orientation The Orientation section is used to specify the layout in which the documents scanned are to be displayed on the computer screen. -
Page 13: Sides
2.1.11 Sides This section allows you to choose if your documents are scanned single-sided (one side only) or duplex (front and back). Note When ADF and Duplex are selected, both sides of the document are scanned, but the top loaded side is output to the PC first followed by the back side. -
Page 14: Page Layout
2.2.1 Page Layout The Page Layout section has the same functionality as “2.1.5 Orientation” on page 12. However, setting the Page Layout here overrides the Orientation setting on the Scanner Properties window. 2.2.2 Feed The Feed section allows you to choose which edge of the document is to be fed first in the ADF (Automatic Document Feeder);... -
Page 15: Detect Double Feed
2.3.2 Detect Double Feed This function detects the feeding of more than one sheet at a time. Ultrasonic waves are aimed at the document to detect double feed by the level at which the waves pass through the sheets. This function can detect double feed even when sheets are superimposed exactly on top of each other, but it may not detect properly with some paper thicknesses and when creasing and other factors are present. -
Page 16: Manual Feed Mode
2.3.6 Manual Feed Mode Manual Feed mode allows you to choose how documents are fed to the scanner. Note Scanning does not stop if the application does not come with a cancel function. However, pressing the START/STOP button on the scanner or opening the scanner cover will discontinue scanning. Property Description Manual Feed mode is not used. -
Page 17: Other Settings
2.4 Other Settings The Other Settings window allows you to enhance scanning by setting the properties for image processing, noise reduction, additional feeding features and more. To view the Other Settings window: 1. Select Advanced Properties from the Source menu. 2. -
Page 18: White Level From Paper
2.4.2 White Level From Paper This function uses white as the reference for the background colors of documents being scanned. When a document with a colored background other than white is scanned, the resulting images contain a lot of noise. This is because the texture of the paper is scanned, however, when the White Level From Paper function is set to On, the texture is ignored resulting in clear images and text. -
Page 19: Gamma
2.4.7 Gamma This function selects the gamma curve (shading adjustment curve). The settings available for the gamma curve are Normal, For CRT, User Download and Linear, which are described in detail in Table 3, "Gamma Settings". Gamma can be set in Color mode, Grayscale mode, or Black & White mode. Note The Gamma function cannot be used when sRGB or ICM have been selected by Color Matching. -
Page 20: Creating Gamma Pattern Files
2.4.7.1 Creating Gamma Pattern Files You can create custom gamma pattern files using a text editor (such as Windows Notepad) or by editing the invert.pxg file located in the application directory. Note If you edit the invert.pxg file, use Save As, type in a name for the file, and make sure the file extension is .PXG. -
Page 21: Chroma
2.4.14 Chroma For information on the Chroma property, refer to your application’s user manual. 2.4.15 Length Control (paper length control) When the Length Control function is selected, the scanner scans the documents in the size that corresponds to the documents length. If, for instance, Length Control is not selected when A4 and A5 width documents are scanned continuously, the documents with the A5 width will also be scanned in the A4 size and the roller will be scanned for the parts corresponding to their bottom halves. -
Page 22: Image Filters On The Imaging Menu
2.5 Image Filters on the Imaging Menu In order to use the advanced image filters for scanning, you must have VRS 4.00.101 (OEM version). The image filters listed on the Imaging menu allow you to utilize functionality such as bar coding, deskewing, border removal, patchcode properties and so on. -
Page 23: Deskew
In order to obtain the ideal image quality and speed for barcode detection, it is recommended that the settings of the image filters be adjusted while scanning a test document. Property Description Types section If the barcode type is known ahead of time, clear the check boxes at the sides of the barcode types which will not be used. -
Page 24: Line Removal
2.5.5 Line Removal For information on the Line Removal property, refer to your application’s user manual or the VRS User’s Manual. 2.6 Image Filters using VRS Adjustment Controls The image filters in the VRS Adjustment Controls window allow you to utilize functionality such as Auto Orientation, Noise Reduction, and so on. -
Page 25: Invert Image
2.6.2 Invert Image For information on the Invert Image property, refer to your application’s user manual or the VRS User’s Manual. 2.6.3 Noise Removal This image filter reduces the noise (black spots) of images. Noise is caused by particles of carbon deposited from the printing by the copier or fax machine and by dirt and other foreign matter on the documents when they are scanned. -
Page 26: Using Quickscan With The Isis Driver
3.0 Using QuickScan with the ISIS Driver This section contains the standard procedures for setting the parameters for the way in which documents are scanned using QuickScan Pro with the ISIS driver. This section contains the following topics: • “3.1 Preview Settings” on page 27 •... -
Page 27: Preview Settings
3.1 Preview Settings The Preview Settings window is where you can configure your scanning preferences. You can specify if you want to scan in color or black and white, image quality, page layout and more. To view the Preview Settings window: 1. -
Page 28: Dots Per Inch
3.1.2 Dots per inch This function specifies the resolution DPI (dots per inch) for the main and subdocument scanning parameters. The available resolution setting ranges are 100 to 600 dpi. The typical dpi setting is 200 for bitonal documents and 150 for color documents. When the resolution is increased, the image becomes clearer. -
Page 29: Brightness
You can create custom dither patterns using Windows Notepad or Wordpad which you can upload to your scanning application. The dither pattern should follow the format in Table 7, "Dither (Halftone) Pattern Format". Once you have finished creating the file, save it with the file extension .pxh. Line Number Description Name - Do not use... -
Page 30: Side
3.1.6 Side This section allows you to choose if your documents are scanned single-sided (one side only) or duplex (front and back). Note When ADF and Duplex are selected, both sides of the document are scanned, but the top loaded side is output to the PC first followed by the back side. -
Page 31: More Settings
3.2 More Settings The More Settings window allows you to set how the documents will be fed into the scanner, whether they will be scanned in color or grayscale, and if they will be feed manually or automatic. To view the More Settings window: 1. -
Page 32: Feeding Speed
3.2.3 Feeding Speed There are two settings for the Feeding Speed; Slow and Normal. It is recommended that you select Slow when scanning thin paper, badly creased paper, fragile paper, etc. In this mode, documents are fed at about one-half of the speed as in the Normal mode. Scanning documents in Slow mode does not affect image quality. -
Page 33: Other Settings
3.3 Other Settings The Other Settings window is used to set the properties for advanced scanning preferences. To modify the More Settings window: 1. Select Preview Settings from the Scan menu. 2. Click the More button on the Preview Settings window. 3. -
Page 34: Scan Area
3.4 Scan Area The Scan Area option allows a selected portion or region to be scanned, rather than the entire document. The scanning area is specified by the start position X (horizontal) and Y (vertical) from the top left corner of the paper, the image width and the length. -
Page 35: Page Size
3.4.2 Page Size Use the Page Size option to specify the size of the documents to be scanned. Note Changing the page size initializes the “3.4 Scan Area” “3.5 Sub Area”. Ensure that the Page Size and Feed properties are set before adjusting the Sub Area. 3.4.3 Page Layout The Page Layout section is used to specify the layout in which the documents scanned are to be displayed on the computer screen. -
Page 36: Sub Area
3.5 Sub Area The Sub Area function enables separate scanning conditions to be set in one part of the scanning range. For example, if there is a region of the document that consistently contains a color graphic, you can achieve better scanning results by specifying the whole page in Black and White mode and then specifying the photo area as a Halftone. -
Page 37: Dither
3.5.2 Dither The Dither mode is primarily used for black and white photographs. It accelerates scanning speed by choosing one of the five preset dither patterns described in “3.1.3 Dither” on page 3.5.3 Brightness For information on the Brightness property, refer to “3.1.4 Brightness”... - Page 38 More than one image filter can be set at a time. However, as additional filters are added, the scanning speed may decrease. Note Image filters can be used only in the Black and White mode. To add image filters in QuickScan: 1.
-
Page 39: Barcode Detection
3.6.1 Barcode Detection This image filter recognizes the barcodes in the scanned images. Refer to the scanning application’s operating manual how to use the barcode. If the barcodes cannot be recognized properly, the quality of the scanned images can be improved by using another image filter, examples of which are given in Table 9, "Example of Image Filters with Descriptions". -
Page 40: Crop
3.6.2 Crop This image filter removes the white margins around images. The dimensions of the white margins to remain at the top, bottom, left and right can be set separately. Furthermore, by selecting the Force Symmetry check box, the same dimensions can be left at the top, bottom, left and right. Note The Cropping image filter does not work properly when there is black noise in the margins of the images. -
Page 41: Erosion
3.6.4 Erosion This image filter makes the black areas smaller. When it is used, some information of the image’s detailed areas is lost. Property Description Number of Input the number of times the Erode image filter is to be applied. When this number is passes increased, the text and patterns appear finer. -
Page 42: Line Removal
3.6.8 Line Removal This image filter reconstructs or removes the ruled lines on images. This function can be used to improve OCR results. Property Sub-property Description Mode Remove lines The lines are detected and removed. Repair First, the lines are detected and removed. Next, the text and/or patterns superimposed on the removed lines are restored. -
Page 43: Noise Removal
3.6.9 Noise Removal This image filter reduces the noise (black spots) of images. Noise is caused by particles of carbon deposited from the printing by the copier or fax machine and by dirt and other foreign matter on the documents when they are scanned. When noise is removed from the text areas, the dots over the letters “i”... -
Page 44: Patchcode Detection
3.6.10 Patchcode Detection This image filter detects the patchcodes on the images and decodes them. If a patchcode cannot be recognized satisfactorily, the quality of the scanning images can be improved by using other image filters. For instance, the filters listed below can be used: Deskew Straightens out the image skew Noise Removal... -
Page 45: Smoothing
3.6.14 Smoothing This image filter removes the protrusions and indentations appearing in characters and patterns. When five or six surrounding pixels have a different color, this function inverts the pixel concerned. It enables the size of files to be reduced when they are compressed with no accompanying loss of image information. Property Description Trim First... -
Page 46: Using Adobe Acrobat With The Twain Driver
4.0 Using Adobe Acrobat with the TWAIN Driver This section contains the standard procedures for setting the parameters for the way in which documents are scanned using Adobe Acrobat with the TWAIN driver. This section contains the following topics: • “4.1 Kofax VRS Properties”... -
Page 47: Kofax Vrs Properties
4.1 Kofax VRS Properties The Kofax VRS properties window allows you to specify how documents are to be scanned, the resolution in which they are scanned, page orientation, color preferences, and whether the documents are scanned in simplex or duplex mode. 4.1.1 Source The Source drop-down list is used to select how the document is to be scanned. -
Page 48: Color Mode
4.1.4 Color Mode The Mode drop-down list provides multiple scanning modes. Table 16, "Mode Options and Descriptions", lists the available mode options. Mode Description Black/White Bitonal, image is threshold to either black or white High quality image, large file size, image is threshold to 24-bit color Grayscale High quality image, large file size, image is threshold to 256 shades of gray Table 16: Mode Options and Descriptions...
