Table 71 System Monitor > Traffic Status > LAN (continued)
LABEL
Data
Error
Drop
Received (Packet)
Data
Error
Drop

20.4 The NAT Status Screen

Click System Monitor > Traffic Status > NAT to open the following screen. You can view the NAT
status of the Device's client(s) in this screen.

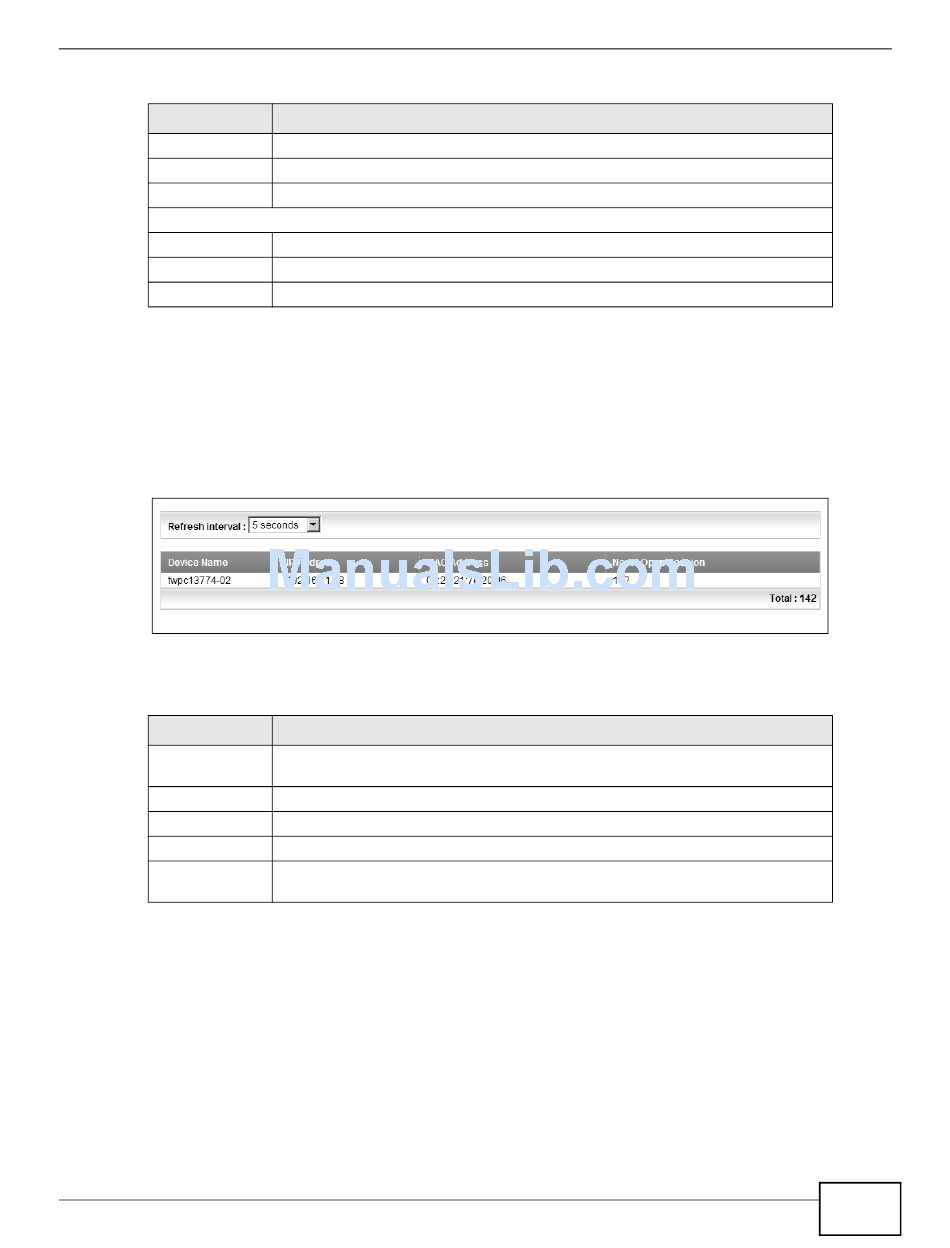

Figure 108 System Monitor > Traffic Status > NAT
The following table describes the fields in this screen.
Table 72 System Monitor > Traffic Status > NAT
LABEL
Refresh Interval
Device Name
IP Address
MAC Address
No. of Open
Session

20.5 The 3G Backup Status Screen

Click System Monitor > Traffic Status > 3G Backup to open the following screen. You can view
the 3G connection traffic statistics in this screen.
FMG3024-D10A / FMG3025-D10A Series User's Guide
DESCRIPTION
This indicates the number of transmitted packets on this interface.
This indicates the number of frames with errors transmitted on this interface.
This indicates the number of outgoing packets dropped on this interface.
This indicates the number of received packets on this interface.
This indicates the number of frames with errors received on this interface.
This indicates the number of received packets dropped on this interface.
DESCRIPTION
Select how often you want the Device to update this screen from the drop-down
list box.
This shows the name of the client.
This shows the IP address of the client.
This shows the MAC address of the client.
This shows the number of NAT sessions used by the client.
Chapter 20 Traffic Status
