Chapter 9 Quality of Service (QoS)

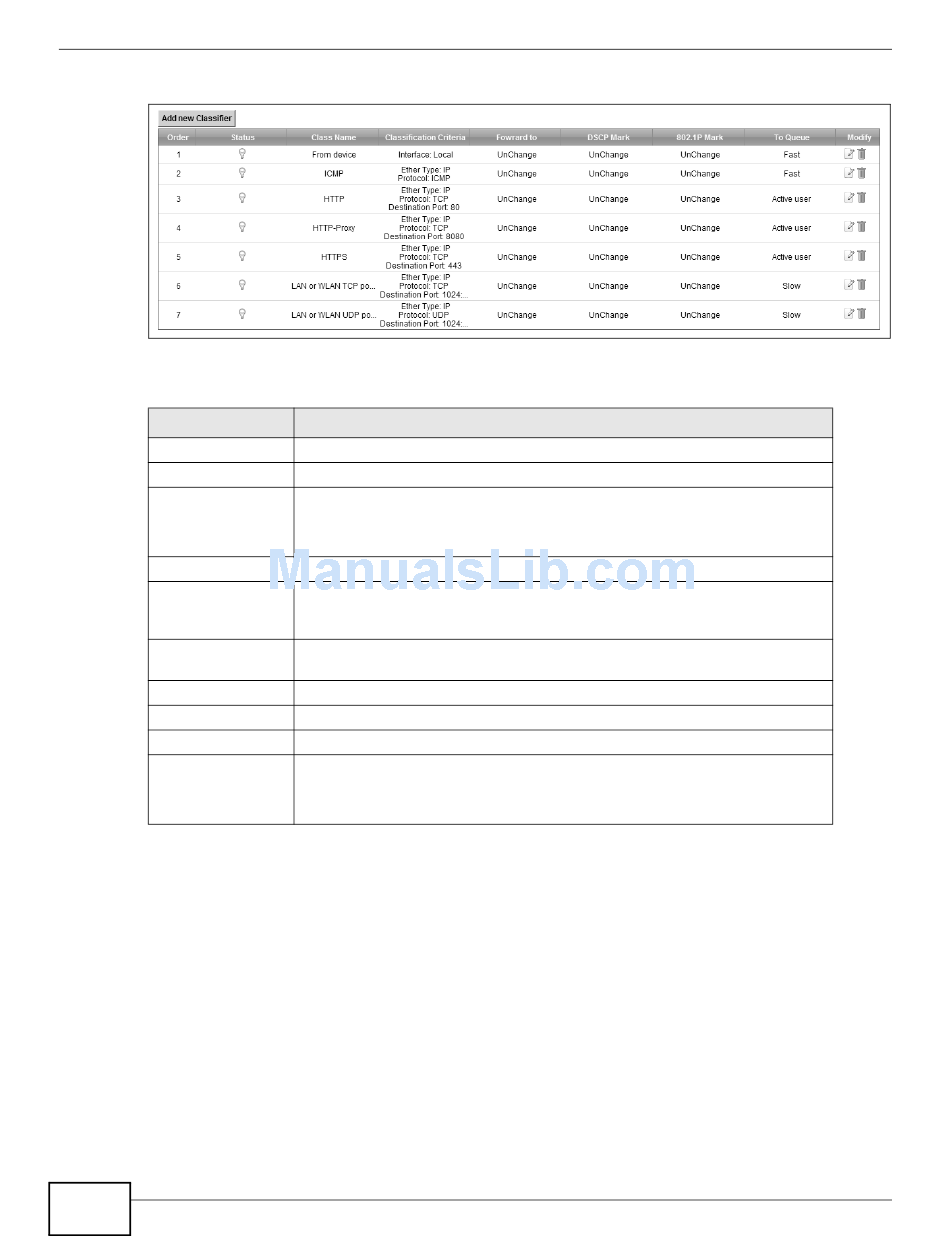

Figure 56 Network Setting > QoS > Class Setup
The following table describes the labels in this screen.
Table 26 Network Setting > QoS > Class Setup
LABEL
Add new Classifier
Order
Status
Class Name
Classification
Criteria
Forward to
DSCP Mark
802.1p Mark
To Queue
Modify

9.4.1 Add/Edit QoS Class

Click Add new Classifier in the Class Setup screen or the Edit icon next to an existing classifier
to configure it.
126
DESCRIPTION
Click this to create a new classifier.
This field displays the order number of the classifier.
This indicates whether the classifier is active or not.
A yellow bulb signifies that this classifier is active. A gray bulb signifies that this
classifier is not active.
This is the name of the classifier.
This shows criteria specified in this classifier, for example the interface from
which traffic of this class should come and the source MAC address of traffic
that matches this classifier.
This is the interface through which traffic that matches this classifier is
forwarded out.
This is the DSCP number added to traffic of this classifier.
This is the IEEE 802.1p priority level assigned to traffic of this classifier.
This is the name of the queue in which traffic of this classifier is put.
Click the Edit icon to edit the classifier.
Click the Delete icon to delete an existing classifier. Note that subsequent
rules move up by one when you take this action.
