7.10 Using UPnP in Windows XP Example
This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP
installed in Windows XP and UPnP activated on the Device.
Make sure the computer is connected to a LAN port of the Device. Turn on your computer and the
Device.
Auto-discover Your UPnP-enabled Network Device
Click Start and Control Panel. Double-click Network Connections. An icon displays under
1
Internet Gateway.
Right-click the icon and select Properties.
2

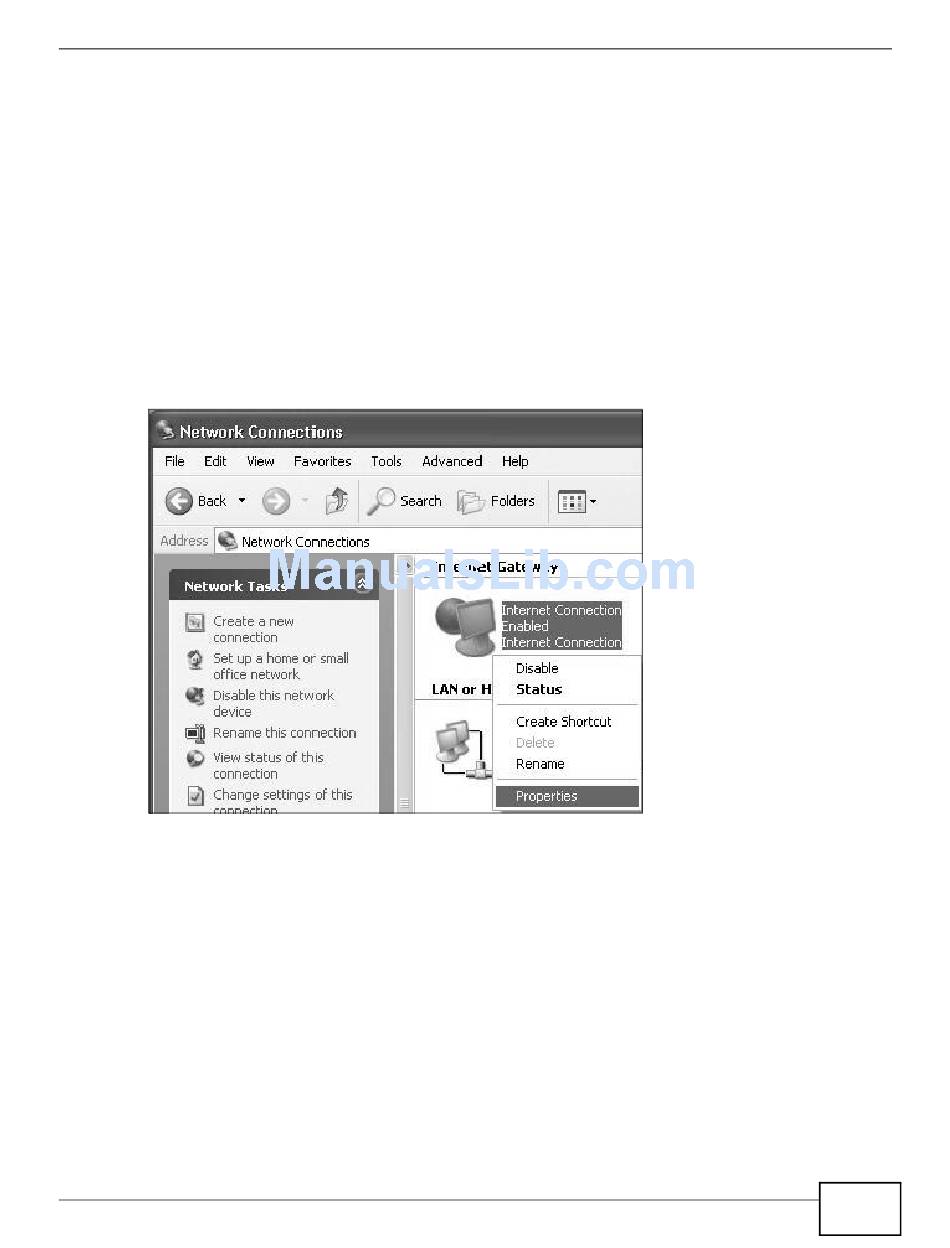

Figure 41 Network Connections
In the Internet Connection Properties window, click Settings to see the port mappings there
3
were automatically created.
FMG3024-D10A / FMG3025-D10A Series User's Guide
Chapter 7 Home Networking
111
