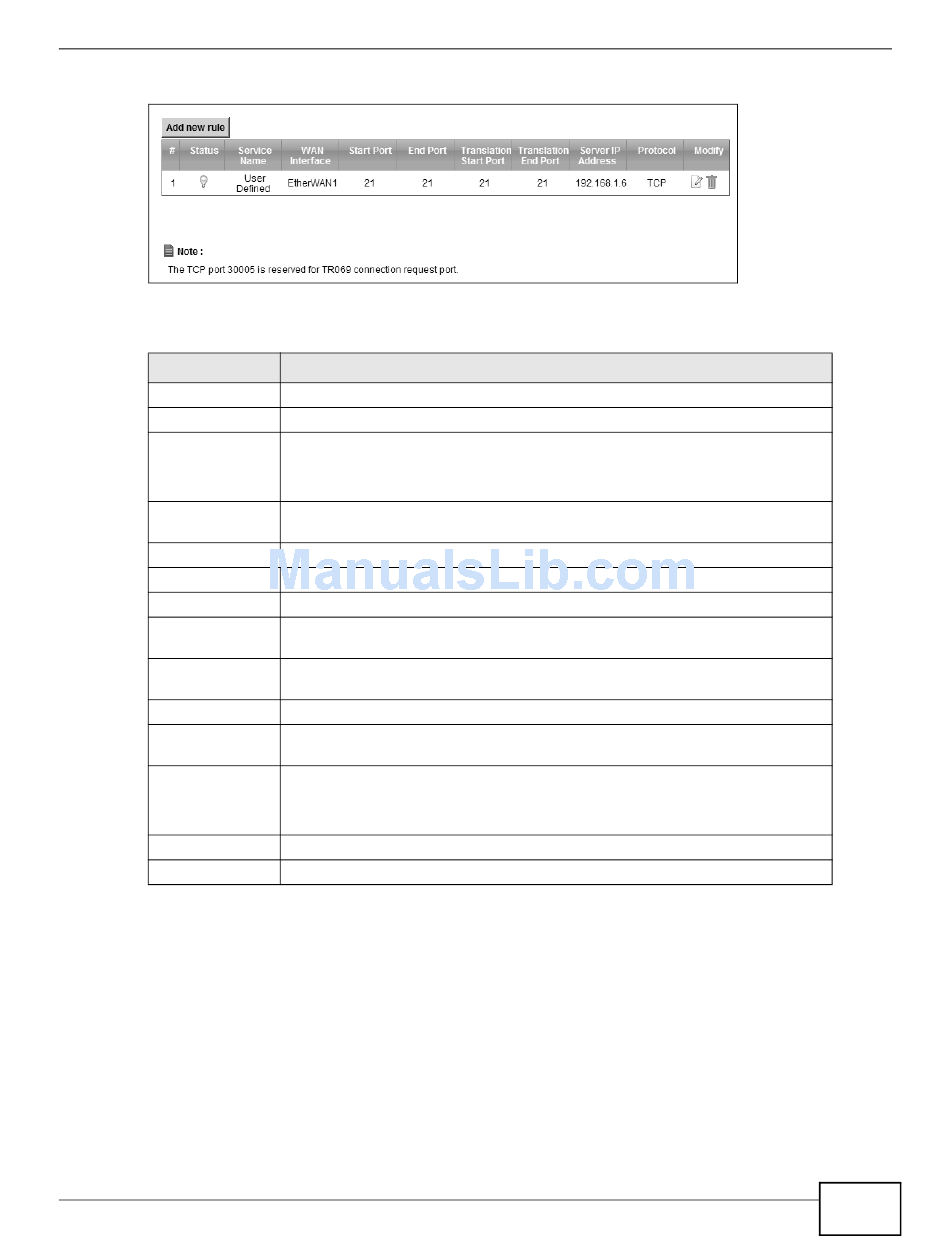

Figure 60 Network Setting > NAT > Port Forwarding
The following table describes the fields in this screen.
Table 30 Network Setting > NAT > Port Forwarding
LABEL
Add new rule
#
Status
Service Name
WAN Interface
Start Port
End Port
Translation Start
Port
Translation End
Port
Server IP Address This is the server's IP address.
Protocol
Modify
Apply
Cancel

10.2.2 The Port Forwarding Edit Screen

This screen lets you create or edit a port forwarding rule. Click Add new rule in the Port
Forwarding screen or the Edit icon next to an existing rule to open the following screen.
FMG3024-D10A / FMG3025-D10A Series User's Guide
DESCRIPTION
Click this to add a new port forwarding rule.
This is the index number of the entry.
This field indicates whether the rule is active or not.
A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is
not active.
This is the service's name. This shows User Defined if you manually added a
service. You can change this by clicking the edit icon.
This shows the WAN interface through which the service is forwarded.
This is the first external port number that identifies a service.
This is the last external port number that identifies a service.
This is the first internal port number that identifies a service.
This is the last internal port number that identifies a service.
This shows the IP protocol supported by this virtual server, whether it is TCP,
UDP, or TCP/UDP.
Click the Edit icon to edit the port forwarding rule.
Click the Delete icon to delete an existing port forwarding rule. Note that
subsequent address mapping rules move up by one when you take this action.
Click Apply to save your changes.
Click Cancel to restore your previously saved settings.
