Chapter 20 Traffic Status
The following table describes the fields in this screen.
Table 70 System Monitor > Traffic Status > WAN
LABEL
Status
Refresh Interval
Connected
Interface
Packets Sent
Data
Error
Drop
Packets Received
Data
Error
Drop
20.3 The LAN Status Screen
Click System Monitor > Traffic Status > LAN to open the following screen. You can view the LAN
traffic statistics in this screen.

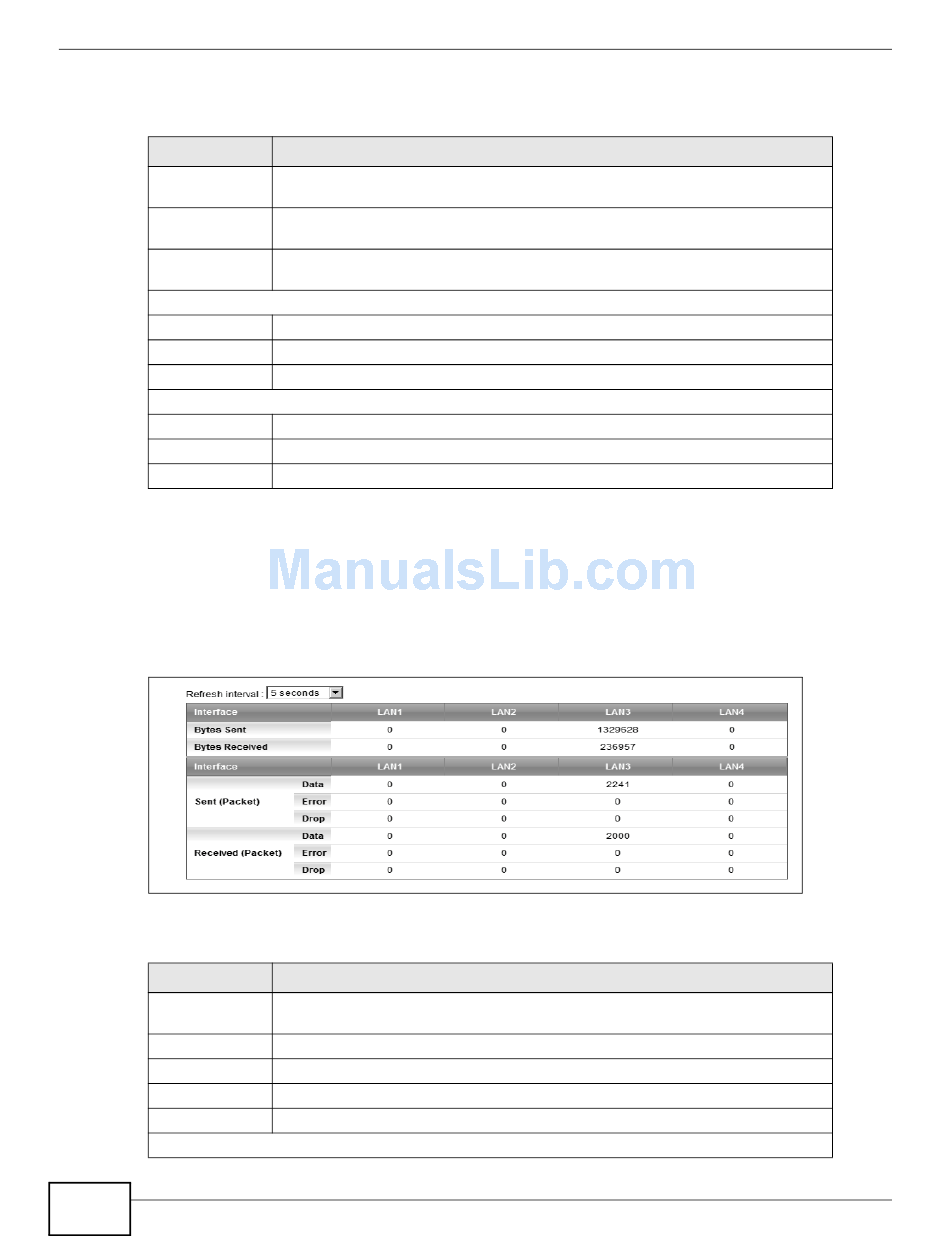

Figure 107 System Monitor > Traffic Status > LAN
The following table describes the fields in this screen.
Table 71 System Monitor > Traffic Status > LAN
LABEL
Refresh Interval
Interface
Bytes Sent
Bytes Received
Interface
Sent (Packet)
210
DESCRIPTION
This shows the number of bytes received and sent through the WAN interface of
the Device.
Select how often you want the Device to update this screen from the drop-down
list box.
This shows the name of the WAN interface that is currently connected.
This indicates the number of transmitted packets on this interface.
This indicates the number of frames with errors transmitted on this interface.
This indicates the number of outgoing packets dropped on this interface.
This indicates the number of received packets on this interface.
This indicates the number of frames with errors received on this interface.
This indicates the number of received packets dropped on this interface.
DESCRIPTION
Select how often you want the Device to update this screen from the drop-down
list box.
This shows the LAN interface.
This indicates the number of bytes transmitted on this interface.
This indicates the number of bytes received on this interface.
This shows the LAN interface.
FMG3024-D10A / FMG3025-D10A Series User's Guide
