Chapter 9 Quality of Service (QoS)

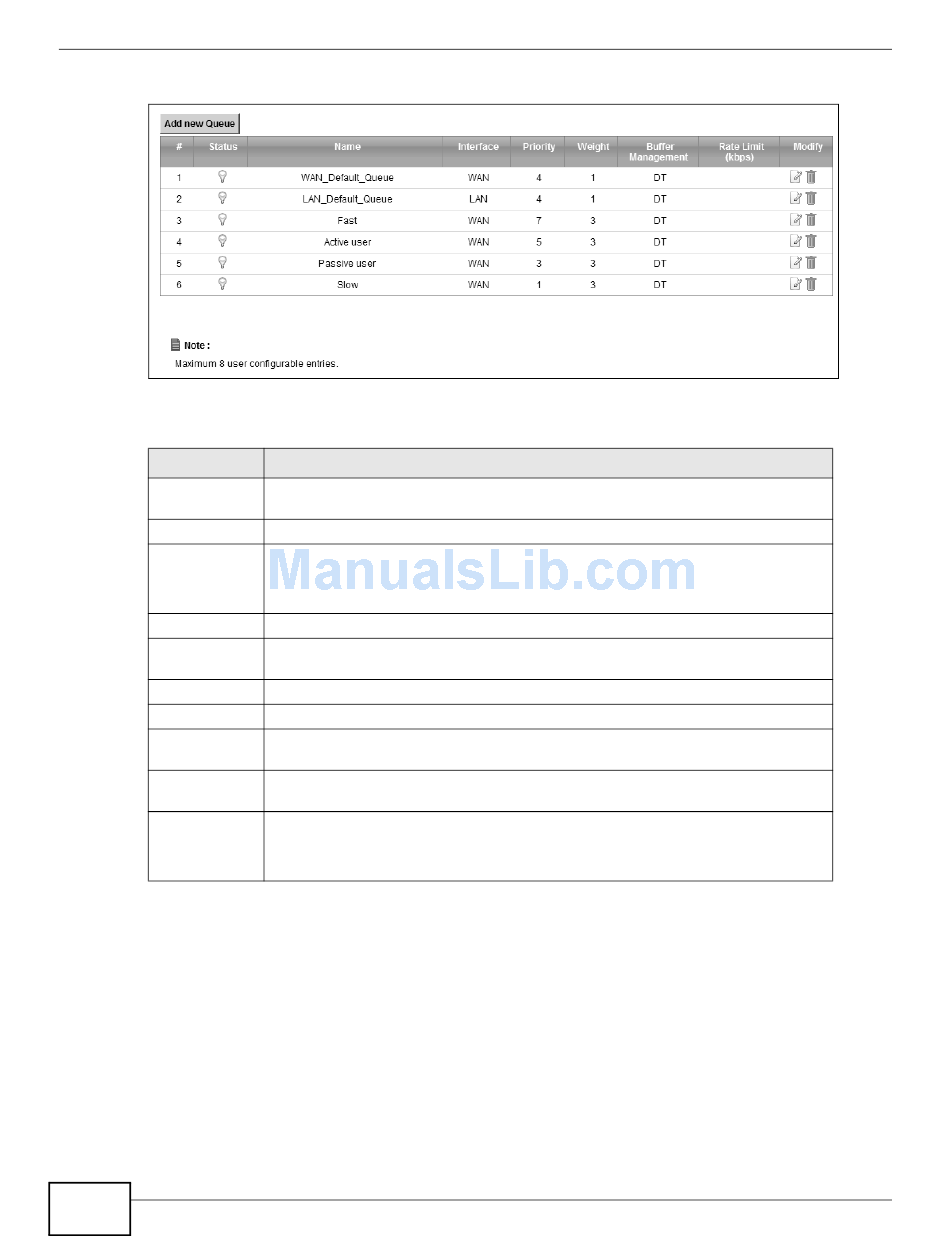

Figure 54 Network Setting > QoS > Queue Setup
The following table describes the labels in this screen.
Table 24 Network Setting > QoS > Queue Setup
LABEL
Add new
Queue
#
Status
Name
Interface
Priority
Weight
Buffer
Management
Rate Limit
(kbps)
Modify

9.3.1 Add/Edit a QoS Queue

Use this screen to configure a queue. Click Add new queue in the Queue Setup screen or the
Edit icon next to an existing queue.
124
DESCRIPTION
Click this to create a new entry.
This is the index number of this entry.
This indicates whether the queue is active or not.
A yellow bulb signifies that this queue is active. A gray bulb signifies that this queue
is not active.
This shows the descriptive name of this queue.
This shows the name of the Device's interface through which traffic in this queue
passes.
This shows the priority of this queue.
This shows the weight of this queue.
This shows the queue management algorithm used by the Device.
This shows the maximum transmission rate allowed for traffic on this queue.
Click the Edit icon to edit the queue.
Click the Delete icon to delete an existing queue. Note that subsequent rules move
up by one when you take this action.
