Section 2: Hardware Installation
DIN rail should be mounted horizontally so that the unit's ventilation holes
are vertical in relation to cabinet orientation. A minimum clearance of 1 inch
(25.4 mm) should be maintained above and below the unit in order to ensure
proper thermal regulation
.

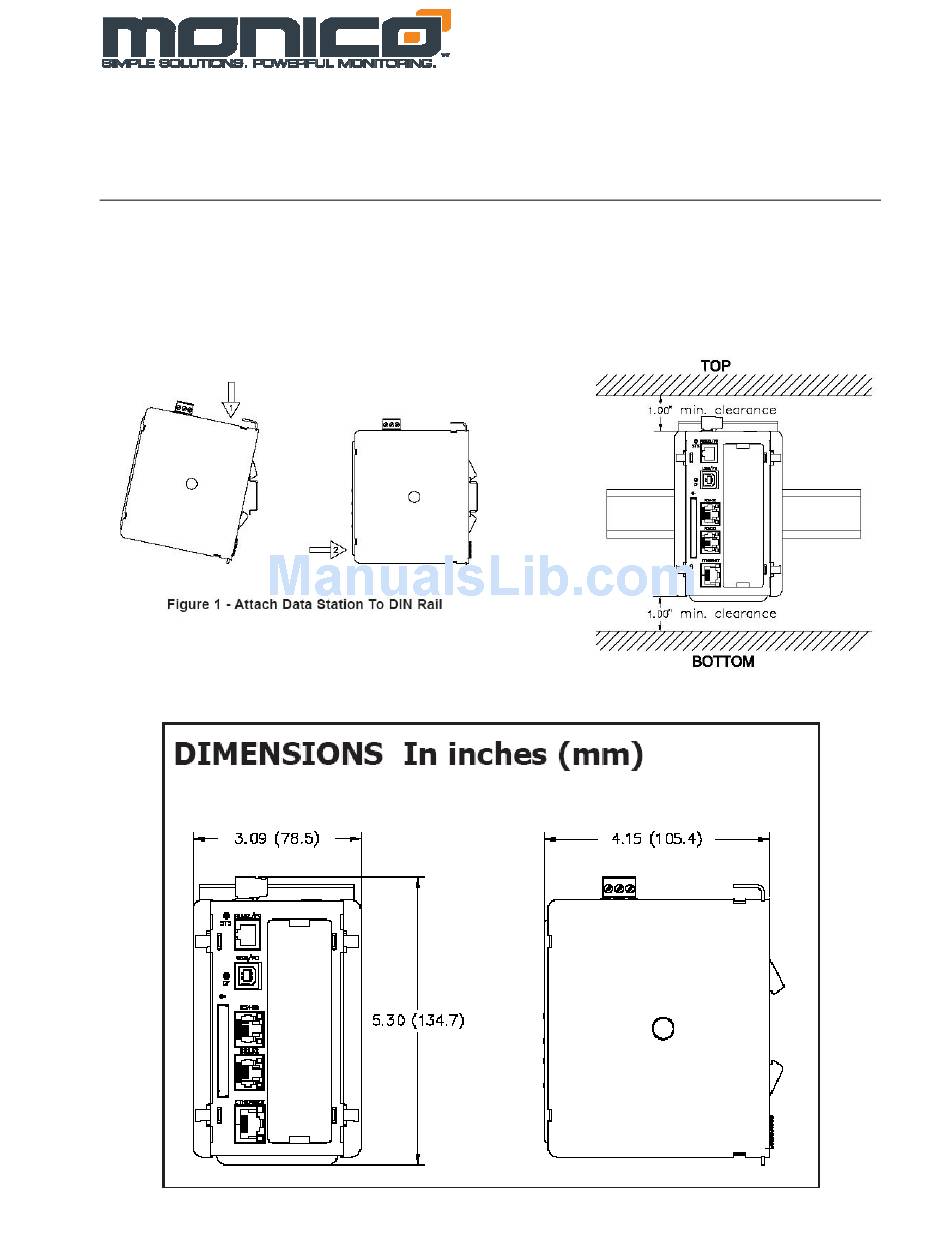

Figure 2.1 Hardware Installation
Figure 2.2 Hardware Dimensions
