v1.05
6.26.09

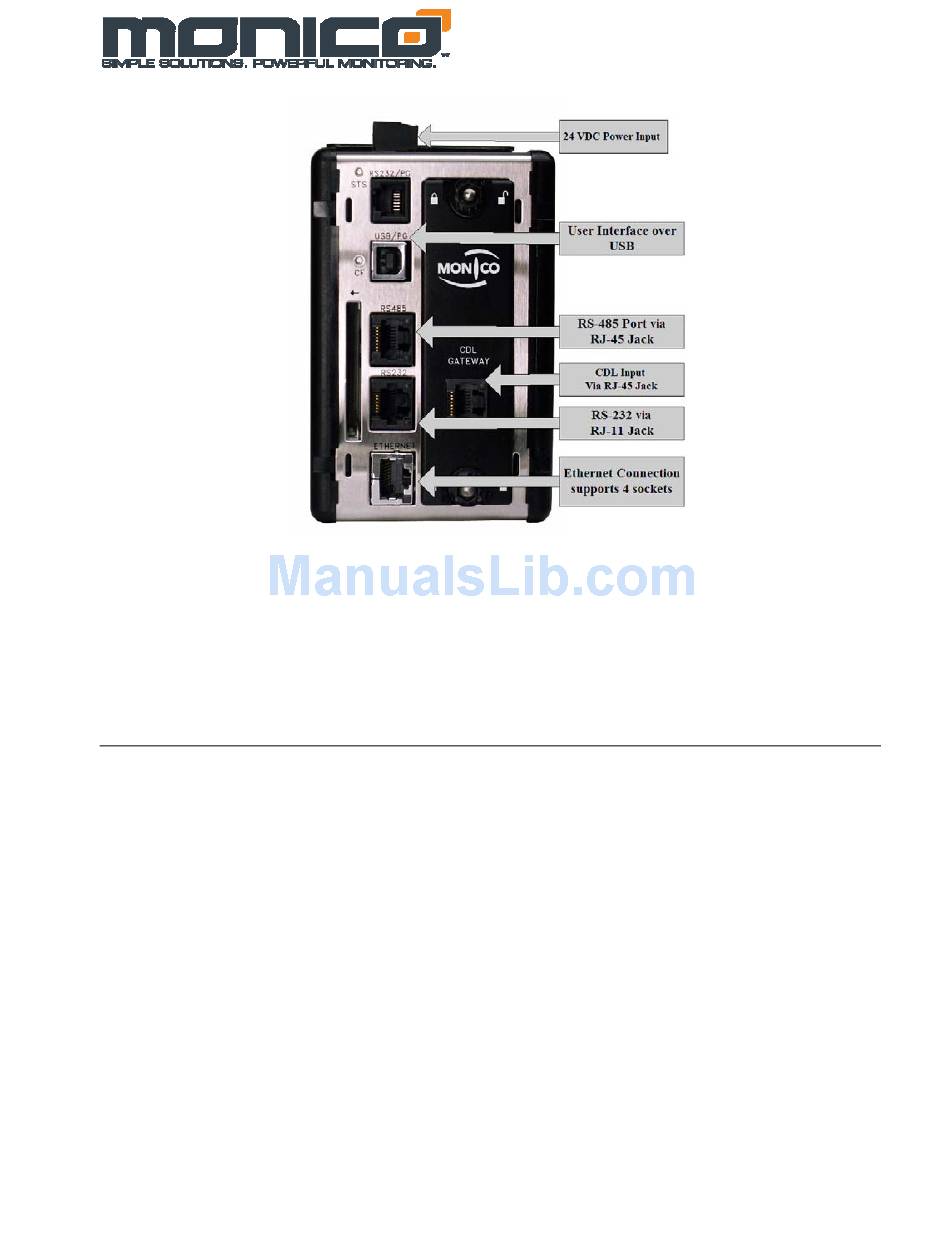

Figure 1.0 Gateway Connections Overview
Section 1: Power Supply
The CDL Gateway™ requires regulated 24 Vdc +/- 10% with 1000 ma power maximum.
Must use Class 2 or SELV rated power supply. You may use either an Isolated power
supply, or the properly grounded engine batteries to power the Gateway. If using an
isolated power supply, make sure to use CDL Monitor 2.0. If power is applied, the green
STS light will function. If this light is blinking, then no setup file is installed or it is
currently loading a file. If this light is solid, then a setup file is resident and operating.
- 4 -
