Monico CDL Gateway Installation And Operation Manual page 26

1. After highlighting the desired device, click on Add Gateway Block. Then
highlight the Gateway Block and Click EDIT under the Starting Address
section. Choose the appropriate starting address.
2. Then click EDIT under Block Size to choose the total number of registers you
want to use for fault codes. So, for five codes using all details you will need
35 registers.
3. Highlight the first register and double-click on FaultSource on the right-hand
side of the screen. The resulting screen will be shown in Figure 7.4.
4. Click OK and then it will ask you how many you want to create. This screen
is shown in figure 7.5. If you want to capture the last five fault codes, then
enter five. If you want the last 25 fault codes, then enter 25.
5. Repeat 1-4 to map registers for each code you wish to capture.

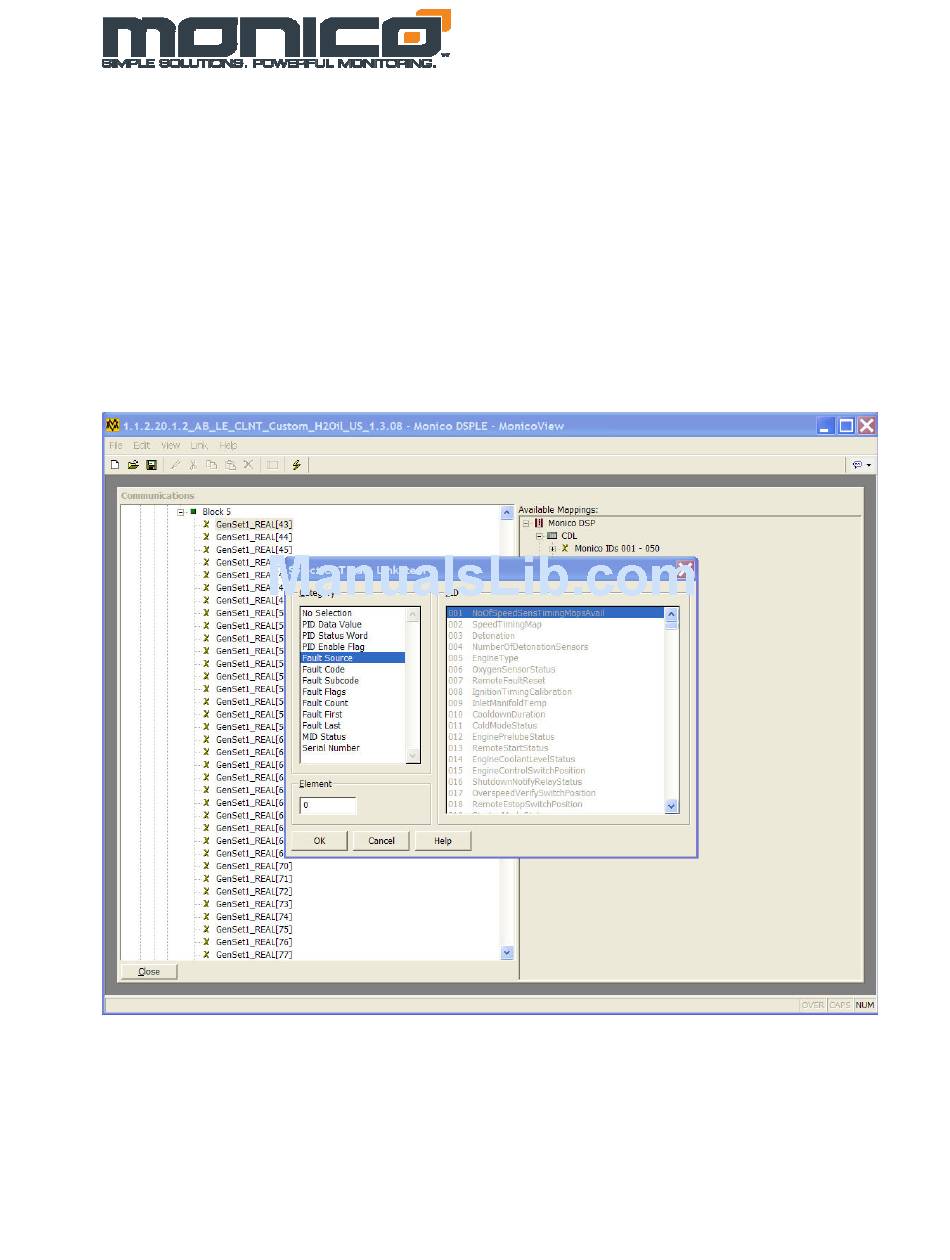

Figure 7.4 Fault Block Creation Example
