If Bit 0 of this value is high, then the code is currently ACTIVE. If low, then it is
inactive.
Figure 7.3 below shows a data block example with the Details Fault information
where:
FaultCount=Number of Occurrences of this specific Code
FaultFirst=First Occurrence in Engine Operating Hours
FaultLast=Last Occurrence in Engine Operating Hours
The example in Figure 7.3 will result in detailed fault and event codes information for
the most recent five fault codes as sorted by Last Occurrence. If more than the last 25
codes are desired, the list is easily expanded.

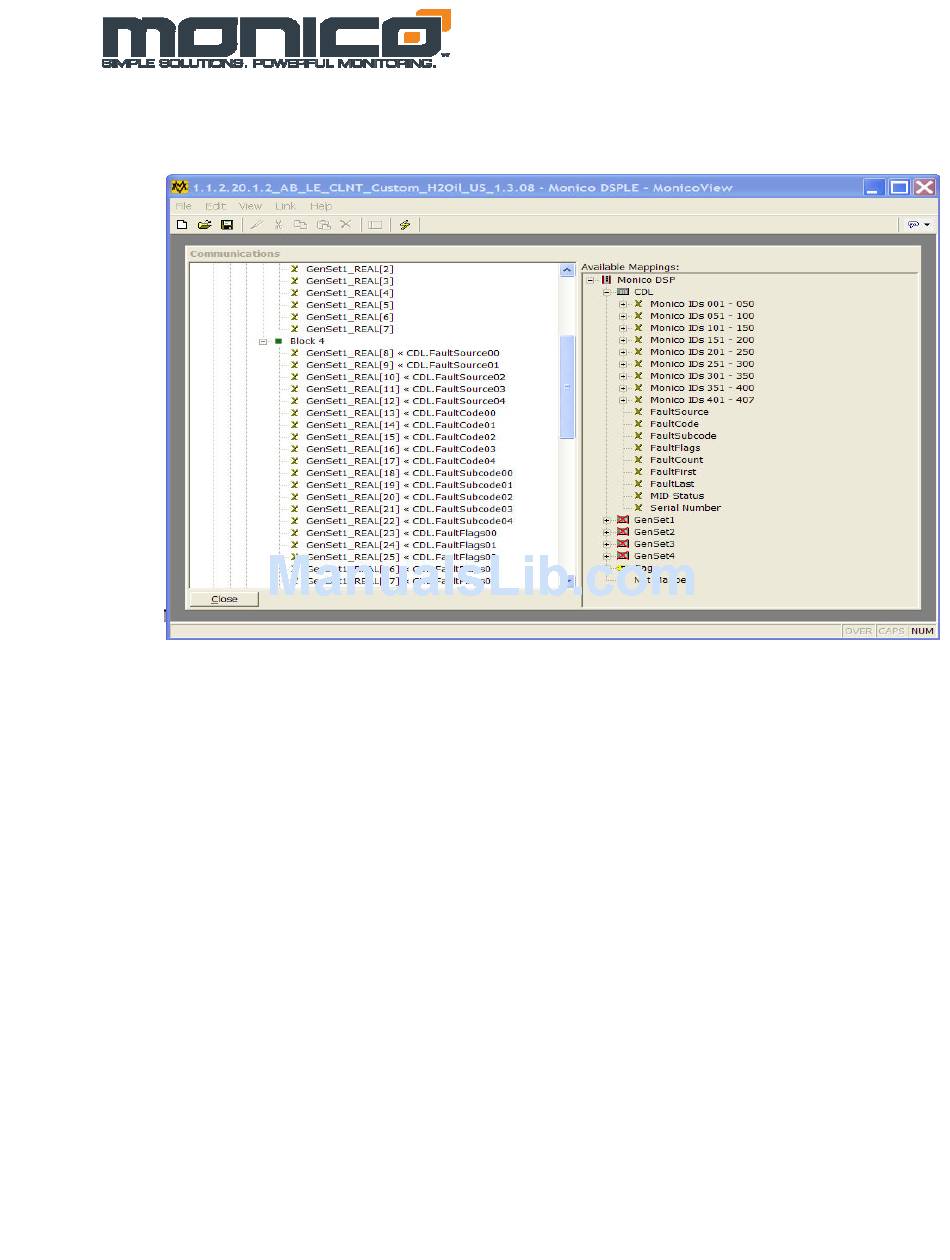

Figure 7.2 FaultCode Data Block
