Interface. When you delete the parameter, you are only removing it from the
CDL communications.
Adjusting Port Settings
The CDL Gateway™ has several HOST PORTS including two RS-232 ports, an RS-485
port, and an Ethernet port. MonicoView can be used to adjust the settings for any of these
ports and to disable the ports that are not being used. For example, if you need to change the
port settings for the RS-232 port you would see:

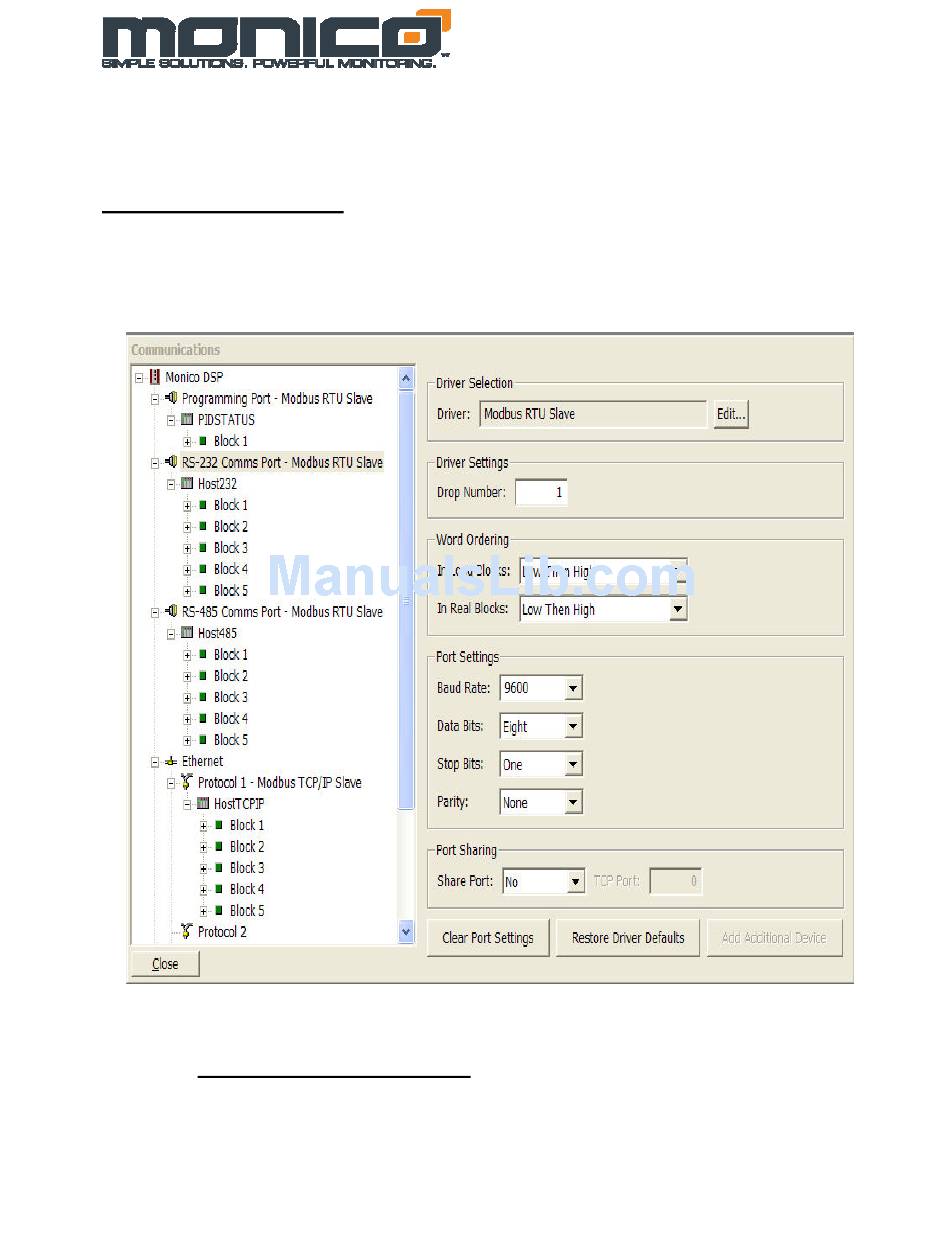

Figure 6.3: Serial Port Communications Settings
To change any of the settings shown in Figure 6.3, highlight the value and enter the new
setting and press enter to record the change. If the value is in a drop down window, just
select the new settings. Notice that you can set a Drop Number. This allows you to use the
RS-232 port with a multi-drop network using RS-232 to RS-485 converters. Enter the Device
Address for the CDL Gateway™ (in the case of Slave protocols) in the Drop Number box
and press ENTER. If the port is setup as a Master Device, then the target drop number will be
entered.
