# Feature
1 Mounting holes (2)
2 Faceplate Attachment Holes For attaching the faceplate to the controller
3 IR IN Receiver
4 Configurable Control
Buttons (Macro Buttons)
5 RELAY2
6 RELAY1
7 RS-485 Terminal Block
Connector
8 RS-232 Terminal Block
Connector (1 and 2)
9 IR OUT1 PIN
GND PIN
IR OUT2 PIN
10 GND PIN
11 +12VDC IN PIN
Figure 2 and Table 2 define the RC-8IR rear panel:
# Feature
12 N.U Switch
13 PROGRAM Switch
14 RS-485 TERM. Switch
15 FACTORY DEFAULT Button Press to return to the factory default settings, including all the configured
16 Ethernet Port
1 These screws should not be removed during or after mounting
2 See the examples in Figure 3
3 Including the factory default IP number: 192.168.1.39 (an IP number is a device' s numerical address as expressed in the
format specified in the Internet Protocol)
4
Your Universal Room Controller

Table 1: RC-8IR Features

For fastening the controller in place
Accepts IR remote commands (for the IR-learner feature)
Control the room and the A/V equipment (eight buttons)
Connect each relay to a room item (such as lighting, screen
settings, blinds, and so on)
Connect to the RS-485 detachable terminal block on a switcher or
PC
Connect to the RS-232 connector on the A/V equipment or a PC or
other Serial Controller
Control up to 4 machines via IR Emitters
Connects (-) to the Ground
Connects (+) to the connector for powering the unit

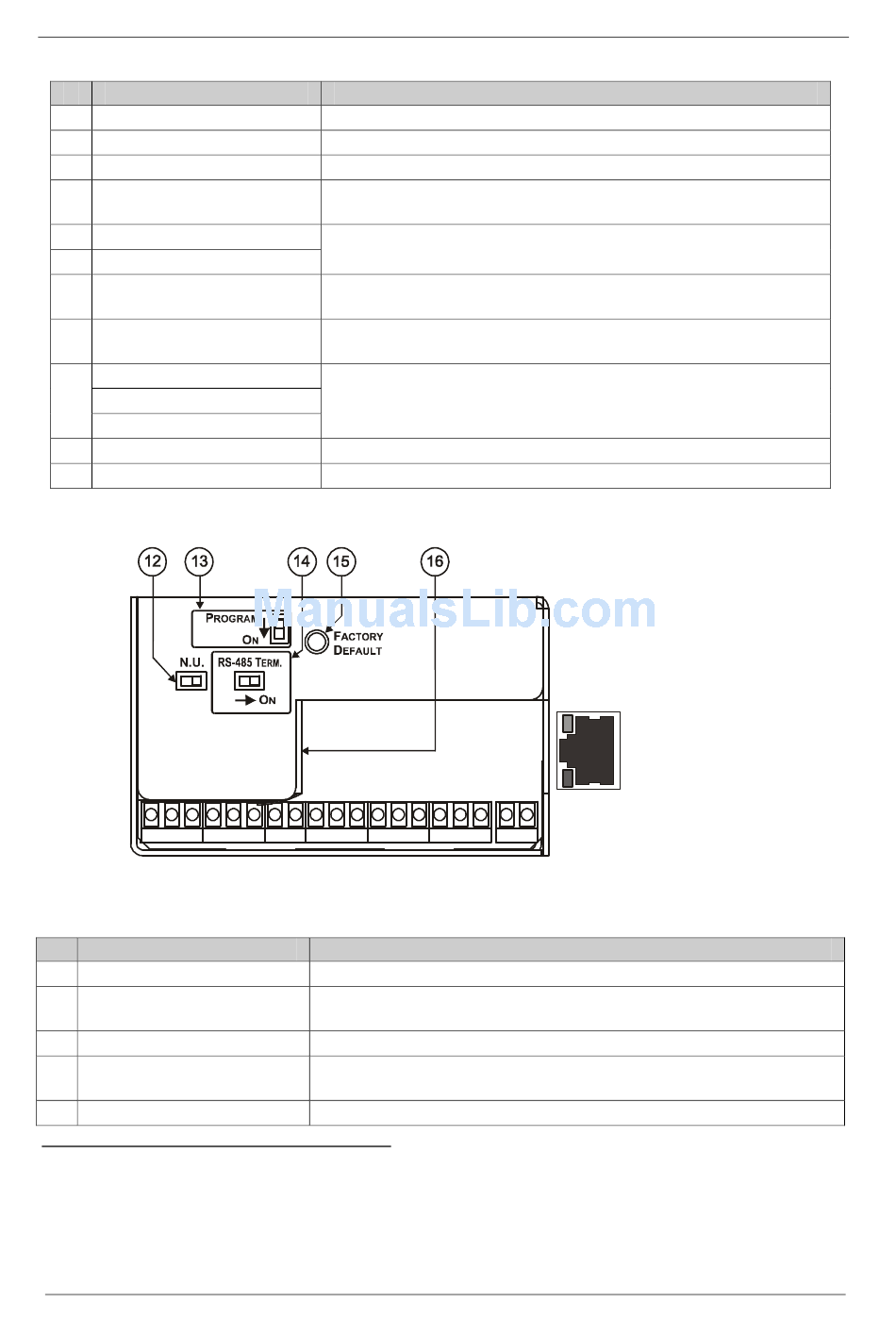

Figure 2: RC-8IR Rear Panel

Table 2: RC-8IR Rear Panel Features

Not used
Switch to OFF for normal operation;
Switch to ON for firmware upgrade
Switch to ON for RS-485 line termination
buttons and the network settings
Connects to a PC or other controller through computer networking
Function
1
2
Ethernet Port
Side View
Function
3
