    Kramer Electronics, Ltd. USER MANUAL Model: RC-2 Wall Plate / RS-232 Controller...

  • Page 2: Table Of Contents

    Figure 3: RS-232 PINOUT Connection Figure 4: RC-SV Configuration Window Figure 5: Setting the Macro Sequences Tables Table 1: Features and Functions of the RC-2 Table 2: RS-232 PINOUT Connection Table 3: Technical Specifications of the RC-2 Wall Plate / RS-232 Controller...

  • Page 3: Introduction

    Use Kramer high performance high resolution cables Overview The RC-2 is a 1 Gang 2-button controller with an RS-232 port and two backlit and label capable buttons. It sends an RS-232 command—with the push of a button—to a device (such as a projector, display or switcher) via serial control protocols.

  • Page 4: Your

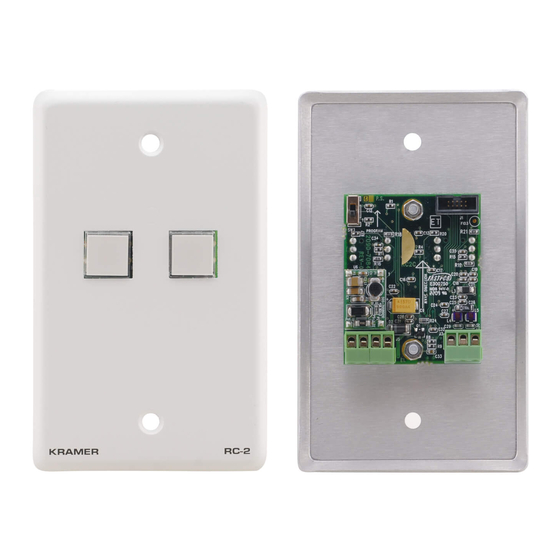

    Your RC-2 Your RC-2 The RC-2 is available in three versions (see Figure 1): one for Belgium and Germany, one for England and Europe (except Belgium and Germany), and one for the United States: Figure 1: RC-2 Front Panel for Europe and the United States...

  • Page 5: Figure 2: Rc-2 Rear Panel

    Your RC-2 Figure 2 and Table 1 define the RC-2 rear panel: Figure 2: RC-2 Rear Panel Table 1: Features and Functions of the RC-2 Feature Function RC-2 Front Panel Front panel, including 2 control buttons PROGRAM ENABLE Switch For technical support use only...

  • Page 6: The Rs-232 Pinout

    To configure the RC-2 buttons: 1. Connect the power to the RC-2 and connect the RS-232 terminal block connector on the RC-2 unit to the 9-pin D-sub COM port on your PC as defined in section 4.1. 2. Open the Configuration program.

  • Page 7: Configuring The

    Configuring the RC-2 Figure 4: RC-SV Configuration Window 3. Follow the instructions in the RC-SV Configuration guide to configure the RC-2 buttons.

  • Page 8: Setting The Macro Sequences

    Technical Specifications 6.1 Setting the Macro Sequences The RC-2 configuration software (RC-SV Configuration software) lets you assign up to four macro sequences each containing up to four commands to each button by setting the behavior drop down box in the button area to Toggle 1-2-3-4 and the toggle state to 4.
  • Page 9 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 10 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
