- Page 1 Vertrieb von CAMBOARD Electronics Kramer Electronics, Ltd. USER MANUAL Models: RC-2C, Wall Plate / RS-232 / IR Controller RC-2, Wall Plate / RS-232 Controller www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
-
Page 2: Table Of Contents
Tables Table 1: Features and Functions of the RC-2C Table 2: Features and Functions of the RC-2 Table 3: RS-232 PINOUT Connection Table 4: Technical Specifications of the RC-2C/RC-2 Wall Plate / RS-232 Controller www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 3: Introduction
Controller and/or the RC-2 Wall Plate / RS-232 Controller which are available in European (80mm and 86mm versions) and American versions. The package includes the following items: RC-2C Wall Plate / RS-232/ IR Controller or RC-2 Wall Plate / RS-232 • Controller •... -
Page 4: Overview
The RC-2C/RC-2 is a 1 Gang 2-button controller with an RS-232 port, an IR OUT port (for the RC-2C only) and two backlit and label capable buttons. It sends an RS-232 command—with the push of a button—to a device (such as a projector, display or switcher) via serial control protocols. -
Page 5: Your Rc-2C

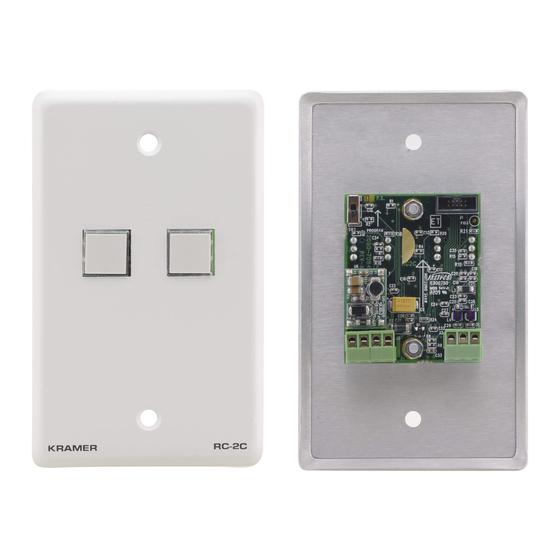

RC-2C Figure 1: RC-2/RC-2C for Europe and the United States Figure 2 Table 1 define the RC-2C rear panel: 1 The RC-2C front panel has the same appearance as the RC-2 panel www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 6: Figure 2: Rc-2C Rear Panel
Vertrieb von CAMBOARD Electronics Your RC-2C/RC-2 Figure 2: RC-2C Rear Panel Table 1: Features and Functions of the RC-2C Feature Function RC-2C Front Panel Front panel, including two control buttons PROGRAM ENABLE Switch For technical support use only GND PIN... -
Page 7: Figure 3: Rc-2 Rear Panel
Vertrieb von CAMBOARD Electronics Your RC-2C/RC-2 define the RC-2 rear panel: Figure 3 Table 2 Figure 3: RC-2 Rear Panel Table 2: Features and Functions of the RC-2 Feature Function RC-2 Front Panel Front panel, including two control buttons... -
Page 8: 4.1 The Rs-232 Pinout
IR OUT, the black side connects to the Ground, and the LED Emitter Shell is affixed to the IR sensor window with the adhesive layer. Figure 5: IR Emitter Wiring 1 Using the Kramer 3.5mm to IR Emitter Control Cable (C-A35/IRE-10) www.camboard.de Tel. 07131 911201 ce-info@camboard.de... -
Page 9: Installing The Configuration Software
ACCESSORIES: K-Config software OPTIONS: RS-232 9-pin D-sub port to 3-pin terminal block connector cable (C-D9F/3PM-0.6) 1 Download up-to-date Kramer user manuals and guides from the Internet at this URL: http://www.kramerelectronics.com 2 Specifications are subject to change without notice www.camboard.de Tel. 07131 911201 ce-info@camboard.de... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 11 Vertrieb von CAMBOARD Electronics For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
