Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: RC-76R/RC-78R Room Controllers P/N: 2900-300253 Rev 2... -
Page 3: Table Of Contents
Installing the Front Panel Button Caps and Labels Technical Specifications Figures Figure 1: RC-76R/RC-78R Room Controllers Figure 2: Connecting the RC-76R/RC-78R Room Controllers Figure 3: K-NET PINOUT Connection Figure 4: Grounding Connection Components Figure 5: Sample Button Label Sheet Figure 6: Removing the Button Cover Plate Mounting Screws... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer RC-76R/RC-78R away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The RC-76R/RC-78R are highly versatile master room controllers that act as an all-in-one extended remote control panel for control of AV equipment—especially projectors and associated equipment—in any room (such as classrooms, boardrooms, or auditoriums). They streamline operations and simplify control by integrating audio, video, and computer-video sources into a centralized system. -
Page 8: Defining The Rc-76R/Rc-78R Room Controllers

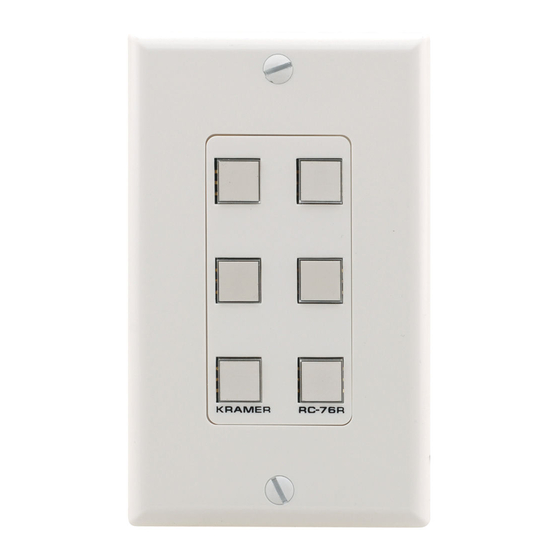

Defining the RC-76R/RC-78R Room Controllers This section defines the RC-76R/RC-78R. Figure 1: RC-76R/RC-78R Room Controllers Feature Function 6/8 Configurable Buttons Function is programmed by the K-Config Configuration software USB Connector Connect to a computer for firmware upgrade or for uploading the configuration file... - Page 9 Slide the DIP-switch up to terminate the K-Net line with a 120Ω load; down is for no termination Button Cover Plate Mounting 2 screws that hold the button cover plate to the Screws body of the device. Remove to access the buttons (see Figure RC-76R/RC-78R - Overview...
-
Page 10: Connecting The Rc-76R/Rc-78R
Always switch off the power to each device before connecting it to your RC-76R/RC-78R. After connecting your RC-76R/RC-78R, connect its power and then switch on the power to each device. To connect the RC-76R/RC-78R as illustrated in the example in Figure 1. Connect the IR outputs as follows: ... -
Page 11: Connecting Rs-232 Devices
Using a straight cable, connect pin 2 to TX, pin 3 to RX and pin 5 to GND on the RS-232 terminal block connector of the RC-76R/RC-78R Connecting RS-485 Devices You can control up to one AV device by connecting it to the RC-76R/RC-78R via its RS-485 connection. To connect a device to the RC-76R/RC-78R via RS-485:... -
Page 12: Connecting The Ethernet Port
Site-CTRL control program to control AV devices. To connect the RC-76R/RC-78R to a network: 1. Connect the Ethernet port of the RC-76R/RC-78R to the Ethernet port on a network hub or network router, via a straight cable with RJ-45 connectors. -
Page 13: Connecting The K-Net Port
The grounding screw is used to earth the chassis of the unit to the building ground preventing static electricity from impacting the performance of the unit. Figure 4 defines the grounding screw components. Component Description M3X6 screw 1/8" Toothed Lock Washer M3 Ring Tongue Terminal Figure 4: Grounding Connection Components RC-76R/RC-78R - Connecting the RC-76R/RC-78R... - Page 14 2. Insert the M3x6 screw through the toothed lock washers and the tongue terminal in the order shown above. 3. Insert the M3x6 screw (with the two toothed lock washers and ring tongue terminal) into the grounding screw hole and tighten the screw. RC-76R/RC-78R - Connecting the RC-76R/RC-78R...
-
Page 15: Operating The Rc-76R/Rc-78R
Operating the RC-76R/RC-78R You can operate your RC-76R/RC-78R using: Front panel buttons. These are configured using the K-Config software. For instructions on using the software, see the K-Config Software Guide available from our Web site www.kramerelectronics.com A PC running Site-CTRL control software:... -
Page 16: Front Panel Button Caps And Labels
Front Panel Button Caps and Labels The RC-76R/RC-78R are supplied with a button label sheet and 6/8 clear, button caps to house the labels. Figure 5 illustrates a sample button label sheet. RC-76R/RC-78R - Front Panel Button Caps and Labels... - Page 17 RC-76R/RC-78R - Front Panel Button Caps and Labels...
-
Page 18: Figure 5: Sample Button Label Sheet
Figure 5: Sample Button Label Sheet RC-76R/RC-78R - Front Panel Button Caps and Labels... -
Page 19: Installing The Front Panel Button Caps And Labels
4. Lift each cap away from its button. 5. Holding the button cap with the “wings” on the top and bottom as shown in Figure 7, insert the label inside the cap. RC-76R/RC-78R - Front Panel Button Caps and Labels... -
Page 20: Figure 7: Button Cap Orientation With Label
8. Replace the button cover plate and screw it into place with its mounting screws. 9. Replace the Decora face plate over the unit and screw it into place with its mounting screws. RC-76R/RC-78R - Front Panel Button Caps and Labels... -
Page 21: Technical Specifications
7.9cm x 2.8cm x 12.4cm (3.1" x 1.1” x 4.9") W, D, H (with DIMENSIONS: wall plate) WEIGHT: 0.6kg (1.4lbs) approx. ACCESSORIES: Power supply, black and white front plates, black and white Decora frames Specifications are subject to change without notice at http://www.kramerelectronics.com RC-76R/RC-78R - Technical Specifications... - Page 23 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
