OPERATING THE 4X1 DVI SWITCHER

The front panel of the 4x1 DisplayPort Switcher has a set of four (4) LED
indicators, displaying which input (source) is being displayed. Each of these LED
indicators corresponds to one of the push-buttons on the front panel.

Switching sources using the front-panel buttons

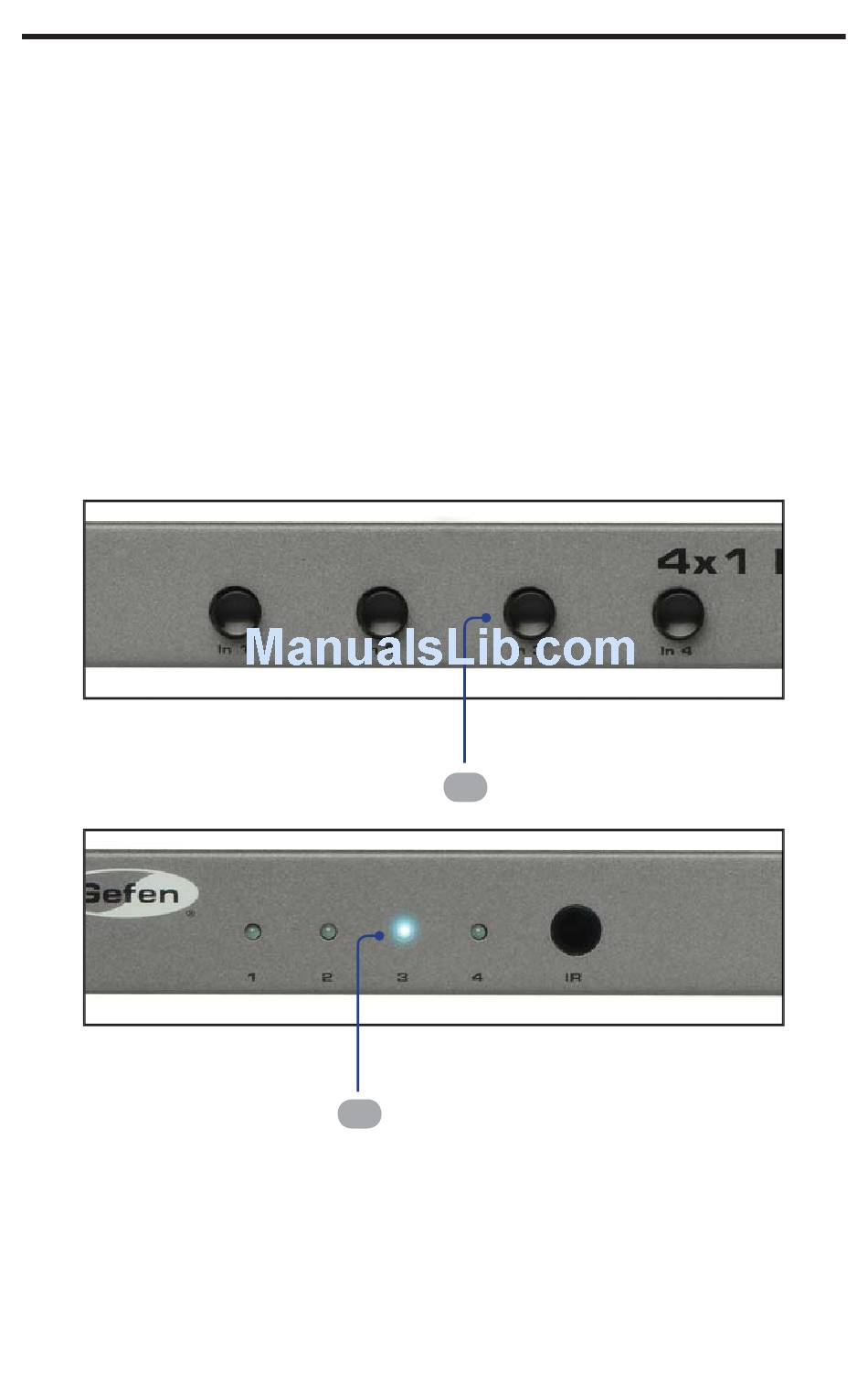

Example: Switch to input 3 using the front-panel buttons:
1 Press button 3 on the front panel of the 4x1 DisplayPort Switcher.
2 The LED indicator for input 3 will glow bright blue on the front panel.

Front Panel Buttons and LED Indicators

2
1
13
