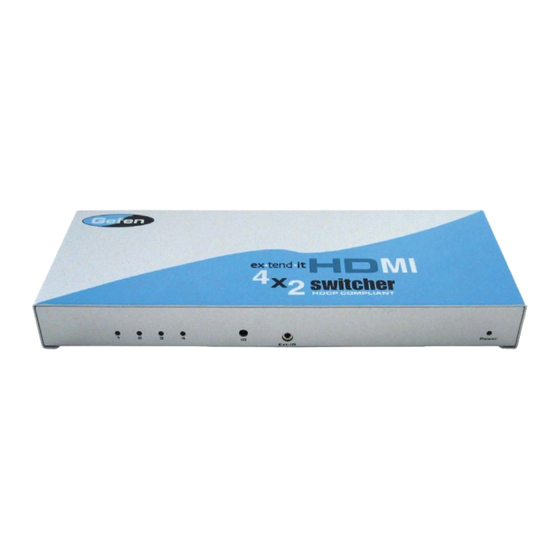

- Page 1 4x2 HDMI Switcher U S E R M A N U A L www.gefen.com...
- Page 2 6265 Variel Ave. Woodland Hills, CA 91367-9897 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 4x2 HDMI Switcher is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the 4x2 HDMI Switcher RMT4-IR Installation RS-232 Interface Specifi cations Warranty... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime support from a team of outstanding engineers. The ex•tend•it 4x2 HDMI Switcher allows four HDTV HDMI devices to be switched eas- ily in to two HDTV HDMI compatible monitors or projectors. -
Page 5: Features
• HDMI or DVI to HDMI cables are used to connect the inputs and switcher output • Inputs can be switched with the IR remote control, contact closure controller or through the RS232 connector. • Installs in seconds Includes: Four - 6’ HDMI cables (m-m) 5VDC Power Supply RMT4-IR The 4x2 HDMI Switcher Users Manual... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 4X2 Hdmi Switcher
Connecting and Operating the 4x2 HDMI Switcher How to Connect the 4x2 HDMI Switcher to your devices 1 Connect the supplied cables from the HDTV HDMI sources into the 4x2 HDMI Switcher inputs. 2 Connect the cables from your displays (monitor or projector) into the HDMI outs of the 4x2 HDMI Switcher. -
Page 8: Rmt4-Ir Installation
RMT4-IR Installation 1. Remove battery cover from the back of the RMT4-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 9: Rs-232 Interface
RS-232 Interface Binary Table Input Binary 0011 0001 0011 0010 0011 0011 0011 0100 Terminal Settings Bits per second ...................... 19200 Data bits ......................... 8 Parity ........................None Stop bits ..........................1 Flow Control ......................None... -
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................. 1.65 GHz Input Video Signal ..................1.2 volts p-p Input DDC Signal ..................5 volts p-p (TTL) Single Link Range ................1080p / 1920 x 1200 Input Connector Type ....................HDMI Output Connector Type ....................HDMI Output Audio Connector Type................ -
Page 11: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 12 6265 Variel Avenue Woodland Hills, CA 91367 1-800-545-6900 818-884-6294 fax: 818-884-3108 www.gefen.com gsinfo@gefen.com...
