CONNECTING THE 4X1 DVI SWITCHER

1 Connect up to four (4) computers to the DVI inputs on the back panel of the
Switcher using the included DVI cables.
2 Connect a DVI display to the DVI output on the back panel of the Switcher.
a OPTIONAL: To use the RS-232 control, connect an RS-232 cable
between the Switcher and RS-232 host controller.
b OPTIONAL: To extend the range of the IR control, connect an IR
Extender (Gefen part no. EXT-RMT-EXTIR) to the back of the Switcher.
3 Connect the included 5V locking power supply to the power receptacle on
the 4x1 DVI Switcher
4 Connect the AC power cord to an available electrical outlet.

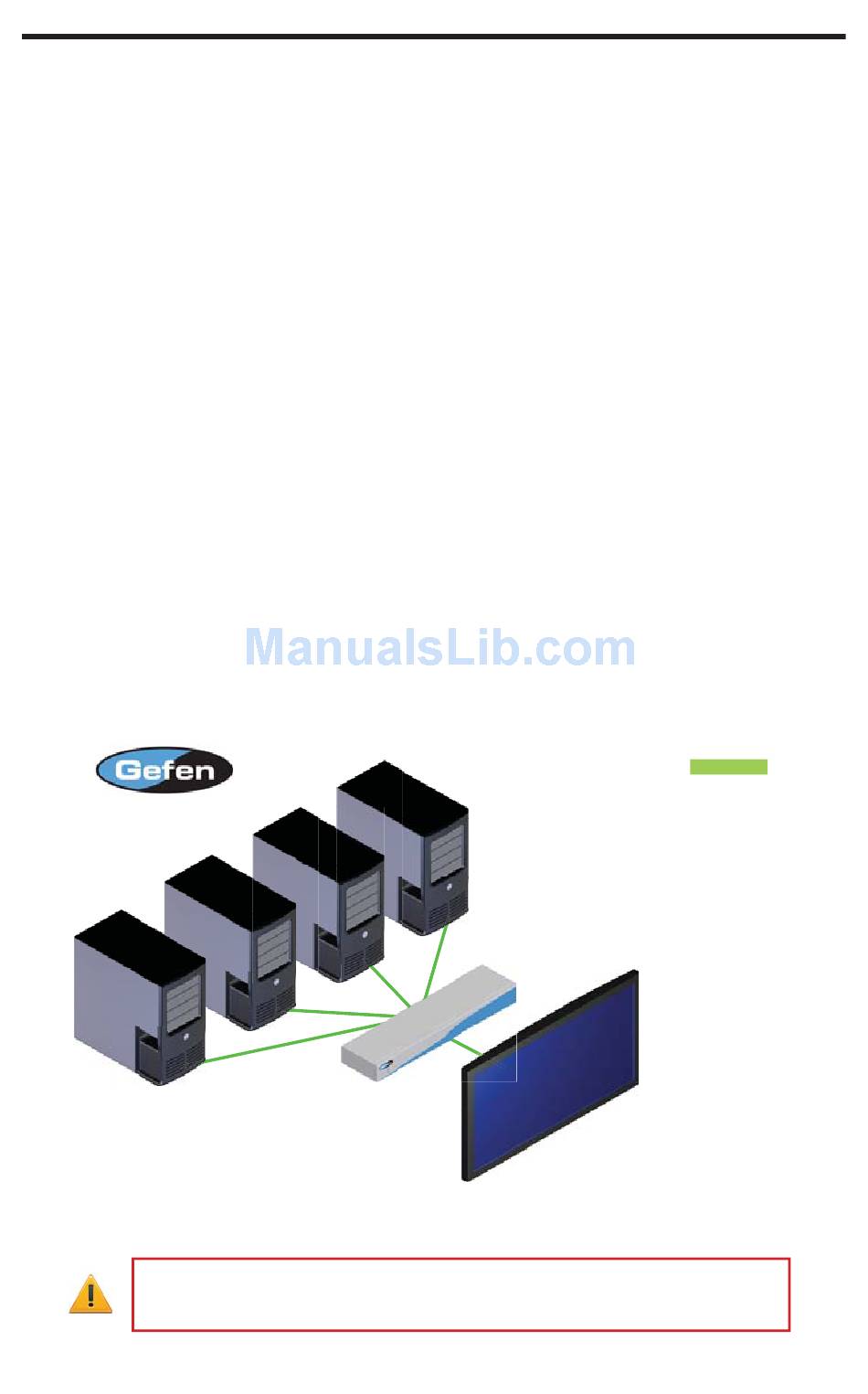

Wiring Diagram for the 4x1 DisplayPort Switcher
Computer
Computer uter e
ATTENTION: This product should always be connected to a
grounded electrical socket.
How to Connect the 4x1 DVI Switcher
Computer
Computer
DVI CABLE
Switcher
12
DVI MONITOR
EX EXT-DVI-441N XT
