Setting the IR channel on the 4x1 DVI Switcher

In order for the IR Remote Control Unit to communicate properly with the
Switcher, both the Remote and the Switcher must be set to the same IR channel.
The 4x1 DVI Switcher has a bank of eight (8) DIP switches on the bottom of the
unit. DIP switch 7 and 8 are used to set the IR channel for the Switcher. DIP
switches 1 - 6 are reserved for future expansion.
Use the following settings for DIP switch 7 and 8 to set the IR channel on the 4x1
DVI Switcher:
IR Channel 0
ON
7 8
IR REMOTE CONTROL UNIT
IR Channel 1
ON
7 8

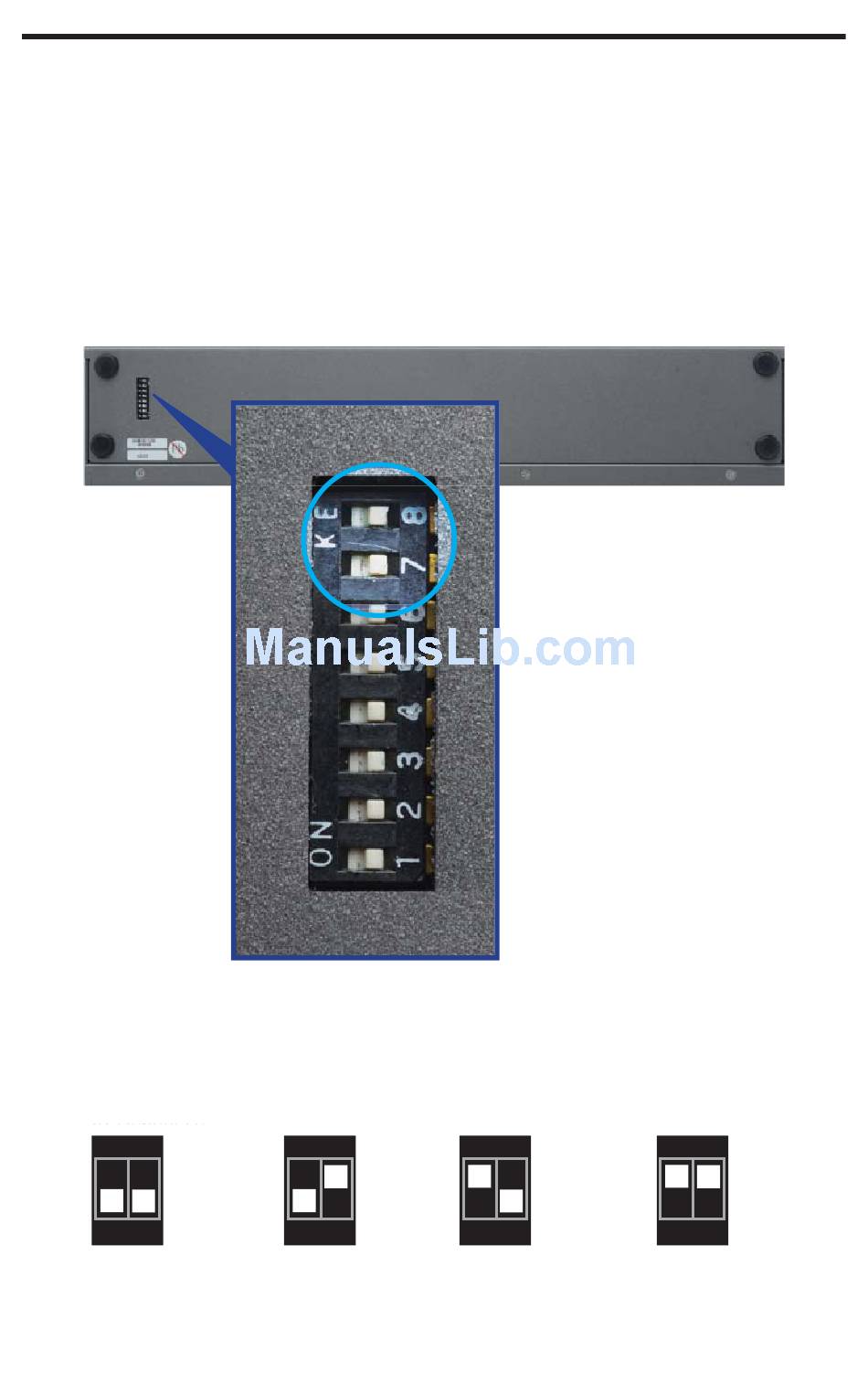

Left : DIP switch 7 and 8 on
the bottom of the Switcher.
These DIP switches are in the
default (OFF) position.
IR Channel 2
ON
7 8
11
IR Channel 3
ON
7 8
