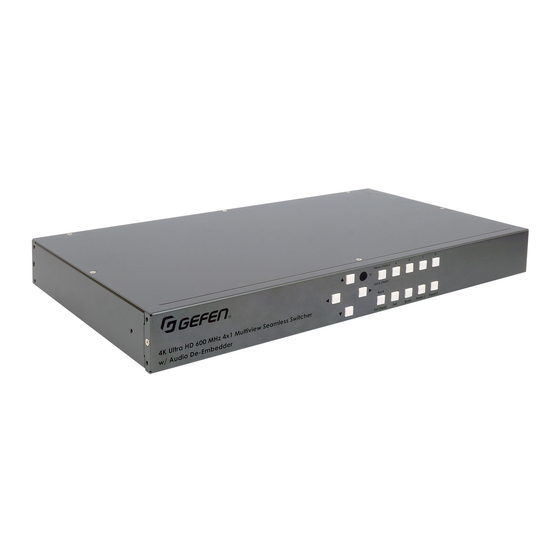

4K Ultra HD 600 MHz
4x1 Multiview Seamless Switcher
with Audio De-Embedder
User Manual
Version A2
Firmware v3.66 only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4x1 Multiview Seamless Switcher and is the answer not in the manual?

Questions and answers

Related Manuals for Gefen 4x1 Multiview Seamless Switcher

Summary of Contents for Gefen 4x1 Multiview Seamless Switcher

  • Page 1 4K Ultra HD 600 MHz 4x1 Multiview Seamless Switcher with Audio De-Embedder User Manual Version A2 Firmware v3.66 only...
  • Page 2 Important Safety Instructions General SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3 Warranty Information For the latest warranty coverage information, refer to the Warranty and Return Policy under the Connect section of the Gefen website at http://www.gefen.com/connect/warranty-and- return-policy...
  • Page 4 © 2018 Nortek Security & Control, LLC. All Rights Reserved. All trademarks are the property of their respective owners. Gefen and Nortek Security & Control, LLC reserve the right to make changes in the hardware, packaging, and any accompanying documentation without prior notice.
  • Page 5 Operating Notes ● When using the 4x1 Multiview Seamless Switcher for the first time, it is recommended that the unit be configured using the web interface. Firmware upgrade is handled through Gefen Syner-G Software Suite. Download the application at: http://www.gefen.com/synerg/ ●...
  • Page 6 Licensing This product uses software that is subject to open source licenses, including one or more of the General Public License Version 2 and Version 2.1, Lesser General Public License Version 2.1 and Version 3, BSD, and BSD-style licenses. Distribution and use of this product is subject to the license terms and limitations of liability provided in those licenses.
  • Page 7 ● Easy to use on-screen Graphical User Interface (GUI) and web server interface ● Handheld IR remote control and IR Extender input on back panel ● Field-upgradable firmware using the Gefen Syner-G™ software ● Default pre-configured Multiview window arrangements can be accessed via two front panel preset push-buttons ●...

  • Page 8: Table Of Contents

    Sample Wiring Diagram ................7 Network Configuration using Syner-G ............8 Operating the Seamless Switcher Introduction ....................... 12 Turning on the 4x1 Multiview Seamless Switcher ........12 Window Source ................... 13 Preset Activation ..................14 Multiple Window Display ................16 Window Priority ...................
  • Page 9 Contents Advanced Operation RS-232 and IP Configuration ................52 Using Telnet ....................52 Using RS-232 ....................53 Commands ......................54 Appendix Default Settings ....................78 Specifications*....................80...

  • Page 11: 01 Getting Started

    Multiview Seamless Switcher 01 Getting Started...

  • Page 12: Panel Layout

    Panel Layout Front Name Description The Menu and Navigation keys control the operation of the on screen user interface. Pressing and holding down the Menu Menu and Navigation key also allows locking and unlocking controls. See Menu System, pg. 28, for details.

  • Page 13: Back

    Panel Layout Back Name Description Connect up to four Full High Definition HDMI In (1 - 4) sources to these inputs using HDMI cables. If IR control is required and the unit is not installed in line of sight, connect the included IR extender module EXT-RMT-EXTIRN or IR In/Ext electrical IR output from an automation control...

  • Page 14: Ir Remote Control Unit

    IR Remote Control Unit page | 4...
  • Page 15 IR Remote Control Unit Name Description Menu Press this button to display the built-in menu system. Press this button to power-ON or power-OFF the Multiview Power button Seamless Switcher. Mute Mutes the audio on both HDMI and analog outputs. Audio Cycles through the four audio sources to be used on the output.

  • Page 16: Remote Bottom - Installing The Batteries

    IR Remote Control Unit Remote Bottom - Installing the Batteries Name Description Battery slot Holds battery carriage in place. Press inward with your thumb to release the tab that holds the battery carriage in Release Tab place. Remove and replace the battery, then slide and snap the battery carriage back in to place.

  • Page 17: Connecting The 4X1 Multiview Seamless Switcher

    Installation Connecting the 4x1 Multiview Seamless Switcher Connect up to four Full High Definition sources to the input ports (HDMI In 1 - 4) on the 4x1 Multiview Seamless Switcher. Connect an HD or 4K display to the HDMI Out port on the 4x1 Multiview Seamless Switcher.

  • Page 18: Network Configuration Using Syner-G

    Installation Network Configuration using Syner-G Launch the Gefen Syner-G application. Download the application here: http://www.gefen.com/synerg/ Select the EXT-UHD600A-MVSL-41 from the list of products. Under the Device Settings section, select either Static or DHCP from the IP Mode drop-down list. ● Select Static to manually enter the IP address, subnet mask, and gateway IP.
  • Page 19 Installation Click the Save button at the bottom of the screen. After saving, select Reboot for the new network settings to take effect. Use the IP address of the switcher to access the built-in web interface or start a Telnet session.

  • Page 21: 02 Operating The Seamless Switcher

    Multiview Seamless Switcher 02 Operating the Seamless Switcher...

  • Page 22: Introduction

    Introduction Turning on the 4x1 Multiview Seamless Switcher To power-on the unit, press the any button on the front panel, or press the power button on the handheld remote. Navigation button (◄, ►, ▲, and ▼) LEDs will illuminate when powered up.

  • Page 23: Window Source

    Window Basics Window Source Up to 4 individual windows can be active on-screen at one time. Each window has its own dedicated source button and are labeled in alphabetical order starting with “A” and ending with “D”. The source for each window can be any of the 4 inputs. To switch the current input that is being routed to each window, the user can press any of the window buttons (A –...

  • Page 24: Preset Activation

    Window Basics Preset Activation Four preset buttons are present and are available for quick activation from the front panel. Two buttons are dedicated to default presets (Full and Quad), while the remaining two (Preset 1 and 2 (front panel) and P1 - P6 (remote) are user presets that can be set via the web interface.
  • Page 25 Window Basics Note that Window B is displayed, because the B button was pressed. The button for the current Window will remain illuminated until another Window button is pressed. In Full screen mode, each Window button (A - D) on the front panel represents each of the four inputs in numerical order.

  • Page 26: Multiple Window Display

    Window Basics Multiple Window Display To recap, the unit can display up to four sources on one display. When multiple sources are displayed on the screen, we refer to each source as a window. In general terms, a window is defined as an output. It is recommended that you refer to Window Source, pg.
  • Page 27 Window Basics The image on the output will be equally divided into four windows. This window arrangement is used by the Quad mode. Input 1 Input 2 Input 3 Input 4 Window arrangement for the Quad mode Now, let’s change the routing state so that the source connected to Input 2 covers the top half of the screen.

  • Page 28: Window Priority

    The smaller the number, the higher priority. Multiple windows cannot share the same priority. Note that the 4x1 Multiview Seamless Switcher does not allow a window to have a transparency property. This is only used by the diagram above and the web interface on the next page to illustrate how windows can be placed behind or in front of one another.

  • Page 29: Assigning Window Priority

    Window Basics Assigning Window Priority Access the Web interface for the 4x1 Multiview Seamless Switcher. Interface, pg. 36, for more information. Go to Window Setup, pg. 41, page of the Web interface section. We’ve selected Preset 8 from the Select Preset drop-down list. We’ve also...

  • Page 30: Locking / Unlocking The Switcher

    Locking / Unlocking the Switcher Locking the switcher will prevent any changes by disabling functions (except the Lock (Hold) button) on the front panel. Disabled are the front panel, IR, and Web GUI, but API control will remain unlocked. This feature is useful in preventing routing or other changes caused by accidentally bumping or pressing the buttons on the front panel.
  • Page 31 There may be situations where the front panel IR sensor is blocked due to being positioned inside a cabinet or other mounting situation. In this case, the included IR extender (Gefen part no. EXT-RMT-EXTIRN) can be connected to the IR In/Ext port on the 4x1 Multiview Seamless Switcher.

  • Page 32: Menu System

    Menu System Accessing the Menu System The 4x1 Multiview Seamless Switcher uses a built-in, On Screen Display (OSD) menu system to manage and control all video features. To access the menu system, press the Menu button on the front panel or on the included IR remote control.

  • Page 33: Using The Front Panel Controls

    Menu System Using the Front Panel Controls Use the ◄, ►, ▲, and ▼ buttons on the front panel to move around within the menu system. Press the ▲ and ▼ buttons to move up and down. Press the Select button to make the desired selection.
  • Page 34 Menu System Using the IR Remote Control The IR remote control has buttons which represent the controls on the front panel. Press the ▲ and ▼ buttons to navigate and change settings. Press the OK button to choose a setting or to apply the change. You can also press the ◄ or ► buttons to go back or navigate forward into the menus.

  • Page 35: Main

    Menu System Main Press the Menu button on the front panel or on the IR remote control. The menu system will be displayed. Select Setup, then select Main. The Presets item shows the current preset (if active). Press the Select button then use the ▲...

  • Page 36: Setup ► Output Resolution

    Setup ► Output Resolution NOTE: Before changing this setting, make sure that the connected display can support the selected output resolution. Press the Menu button on the front panel or on the IR remote control. The menu system will be displayed. Press ▼...

  • Page 37: Setup ► Window Setup ► Picture

    Setup ► Window Setup ► Picture Press the Menu button on the front panel or on the IR remote control. The menu system will be displayed. Select Setup, then select Window Setup. EXT-UHD600A-MVSL-41 Windows Setup Picture Layout Select Picture to view options for a Labels particular window.

  • Page 38: Setup ► Window Setup ► Layout

    Menu System Setup ► Window Setup ► Layout EXT-UHD600A-MVSL-41 Press the Menu button on the front Windows Setup panel or on the IR remote control. The menu system will be displayed. Picture Layout Select Setup, then select Window Labels Setup. Select Layout to view options for a...

  • Page 39: Setup ► Window Setup ► Labels

    Menu System Setup ► Window Setup ► Labels EXT-UHD600A-MVSL-41 Press the Menu button on the front Windows Setup panel or on the IR remote control. The menu system will be displayed. Picture Layout Select Setup, then select Window Labels Setup. Select Labels to access label and...

  • Page 40: Setup ► Hpd Control

    Menu System Setup ► HPD Control Press the Menu button on the front panel or on the IR remote control. The menu system will be displayed. Select Setup, then select Control. Press the ▲ or ▼ buttons to highlight an option, then press the Select button. Press Select again to send the HPD pulse.

  • Page 41: Setup ► Hdcp Control

    Menu System Setup ► HDCP Control Press the Menu button on the front panel or on the IR remote control. The menu system will be displayed. Select Setup, then select HDCP. Press the ▲ or ▼ buttons to highlight an option, then press the Select button. Press the ▲...

  • Page 42: Edid

    Menu System EDID Press the Menu button on the front panel or on the IR remote control. The menu system will be displayed. Select EDID. Press the ▲ or ▼ buttons to highlight an Input, then press the Select button. Press the ▲...

  • Page 43: Network

    Menu System Network Press the Menu button on the front panel or on the IR remote control. The menu system will be displayed. Select Network. Press the ▲ or ▼ buttons to highlight IP Settings, then press the Select button. Press the ▲...
  • Page 44 Menu System Network (continued) Press the ▲ or ▼ buttons to highlight an option, then press the Select button. Press the ▲ or ▼ buttons to adjust the setting, then press the Select button to save the change. Press the Back button to return to the Network screen.

  • Page 45: System

    Menu System System Press the Menu button on the front panel or on the IR remote control. The menu system will be displayed. Select System. Press the ▲ or ▼ buttons to highlight an option, then press the Select button. For the enable/disable and timeout options, press the ▲...

  • Page 46: Web Interface

    Web Interface Using the built-in Web Interface This is the login page. Options for login are Administrator and Operator. Password defaults are ‘admin’ and ‘operator’. The Web interface is divided into six tabs at the top of the screen: Main, Setup, Names, EDID, Network, System. Some tabs have sub-tabs. Username Select the username from the drop-down list: ●...
  • Page 47 Web Interface The Current State displays the current layout, the name of the active preset (if applicable), and routing that the unit is currently displaying. In the Routing table, inputs 1-4 can be routed to each window (A – D), with the ability to mask (hide) each window.
  • Page 48 Lock or unlock the switcher. Once the switcher is locked, settings cannot be changed using the front-panel buttons, IR remote control or through the Web GUI. Power Off Toggles the power state of the 4x1 Multiview Seamless Switcher. When the switcher is powered-on, the button will read “Power On”. ? Help Click the “? Help”...

  • Page 49: Main ► I/O Status

    Web Interface Main ► I/O Status This tab indicates the status of the inputs and outputs. Output The Output table displays the Feature and Output status for: RSENSE : Displays the current Rsense state (On/Off). HPD : Displays the current HPD state. HDCP : Displays the current HDCP state.

  • Page 50: Setup ► Video

    Web Interface Setup ► Video This tab is the main configuration page for the output and windows. The output resolution modes are Native and Custom. Native The Native mode will attempt to set the output of the unit based on the native resolution detected in the EDID of the connected display.

  • Page 51: Setup ► Window Setup

    Web Interface Setup ► Window Setup This tab allows you to configure the window layouts and presets. A preset can be selected from the Select Preset pull-down. Select Preset The list contains ALL of the default and user presets as shown on the MAIN routing tab. The LIVE option selects what is currently being displayed on the output.

  • Page 52: Setup ► Hpd Control

    Web Interface Setup ► HPD Control This tab is used to perform HPD (Hot Plug Detect) pulse events. HPD is a low voltage pin in the HDMI cable that is set either HIGH or LOW that indicated the presence of a cable connection. Momentarily changing this voltage from HIGH to LOW and then back to HIGH creates a Pulse that disconnects and reconnects, triggering a connection reset between the unit and the input source(s) without unplugging and plugging in the HDMI cable(s).

  • Page 53: Setup ► Background

    Web Interface Setup ► Background The Background tab allows you to configure the background image that will be shown behind the window layers of the display. It can be used to show information or provide a pleasant backdrop. Select a Background (1–4) from the pulldown menu. page | 43...

  • Page 54: Names ► Preset Names

    Web Interface Names ► Preset Names The Names tab allows you to Label/Name each of the user Presets, Input source and Window labels that appear in the web interface and optionally on screen. The names chosen are displayed as the Window Label and Source Label on screen (option to display is in the Setup>Video tab).

  • Page 55: Edid ► Copy

    Web Interface There are 3 EDID modes: Internal Preconfigured and non-customizable EDIDs that have specific limitations on the resolution and number of allowable audio channels. External An EDID that is “pass-through” from a connected display through the unit and directly to the source with little to no modification.

  • Page 56: Edid ► Info

    EDID File dropdown menu. Options include the Output, any of the 4 inputs or the 2 internal EDIDs. A downloaded EDID may be loaded into the Gefen Syner-G™ or other EDID modification software to then customize and re-upload back to the unit.

  • Page 57: Network ► Settings

    Web Interface Network ► Settings The Network tab is used to configure all of the network related options on the switcher. Once revisions have been made, select Save. Select the Set Network Defaults option to return to default network settings. IP Settings MAC Address The MAC address of the switcher.
  • Page 58 Web Interface Network ► Settings (continued) TCP/Telnet Settings Enable TCP Access Click Enable to make TCP available, or click Disable to disable TCP access. TCP Port Type in the a TCP port number. Default is set to 23. Login Message on Connect Click Show to display the Telnet Welcome Message.

  • Page 59: System ► Settings

    Web Interface System ► Settings The System tab is used to configure settings that relate to operational functions or factory default and rebooting operations. Unsolicited feedback This option controls feedback information on both the Serial and TCP/IP interfaces and is used to relay the status of any changes made to options through any of the interfaces.
  • Page 60 This page left intentionally blank.

  • Page 61: 03 Advanced Operation

    Multiview Seamless Switcher 03 Advanced Operation...

  • Page 62: Rs-232 And Ip Configuration

    IP_address IP_address where is the IP address of the 4x1 Multiview Seamless Switcher. After correct settings have been used in the terminal program, information similar to the following will be displayed: ********Welcome to the EXT-UHD600A-MVSL-41******** Firmware Version: v3.66 *************************************************** >...

  • Page 63: Using Rs-232

    RS-232 and IP Configuration Using RS-232 Launch the desired terminal application. Selected the assigned COM port. Configure the RS-232 port to the following settings. Description Setting 115200 Baud rate Data bits None Parity Stop bits None Hardware flow control Connect to the RS-232 port (DB-9 connector). Only TxD, RxD, and GND pins are used.

  • Page 64: Commands

    Commands Name Command(s) Description(s) Audio Source GET or SET Audio Source #GET_BACKGROUND Background GET or SET background image #SET_BACKGROUND #GET_BRIGHTNESS GET or SET brightness adjustment value for one or more Brightness #SET_BRIGHTNESS windows #GET_CONTRAST GET or SET contrast adjustment value for one or more Contrast #SET_CONTRAST windows...
  • Page 65 Commands Name Command(s) Description(s) Lists all available TCP/UDP commands. If a command Help #HELP is specified then both the description and syntax will be listed for the command. #SEND_HPD Send hpd (hot plug detect) pulse to one or all hdmi inputs #GET_HUE Get hue adjustment value for one or more windows #SET_HUE...
  • Page 66 Commands Name Command(s) Description(s) #GET_SATURATION Get saturation adjustment value for one or more windows Saturation #SET_SATURATION Set saturation adjustment for one or more windows #GET_SHOWME Get the status of the discovery 'show me' feature Showme #SET_SHOWME Enable/Disable the discovery 'show me' feature #GET_SUBNET Get the current subnet mask Subnet Mask...
  • Page 67 Commands Audio Source (A / SA) Set Audio Source. Syntax A PARAM1 PARAM1 = 1 ~ 4 Parameters (param1) 1 ~ 4 - HDMI INPUTS Example Get Audio Source. SA (NO PARAMETER) Example Background (#SET_ / #GET_) Set the background image. Syntax #SET_BACKGROUND PARAM1 [0 ~ 4]...
  • Page 68 Commands Contrast(#SET_ / #GET_) Set contrast adjustment for one or more windows. #SET_CONTRAST PARAM1 PARAM2 (OPTIONAL Syntax PARAM1 PARAM2 PARAM1 PARAM2...) PARAM1 = A ~ D A ~ D - WINDOWS A ~ D Parameters PARAM2 = 0 ~ 100 0 ~ 100 - CONTRAST VALUE #SET_BRIGHTNESS A 50 Examples...
  • Page 69 Commands Custom EDID(#SEND_ / #GET_) Upload a custom user EDID to an input for use with custom mode (after entering the command, while "waiting" is shown, send the EDID as hex values with no spaces and no hard returns until the end) Syntax #SEND_CUSTOM_EDID PARAM1 PARAM1 = 1 ~ 4...
  • Page 70 Commands Discovery Mode(#SET_ / #GET_) Set the Discovery Read/Write mode Syntax #SET_DISCOVERY_MODE PARAM1 PARAM1 = 0 ~ 1 Parameters 0 - READ ONLY 1 - READ/WRITE #SET_DISCOVERY_MODE 0 Examples #SET_DISCOVERY_MODE 1 Get the Discovery Read/Write mode Syntax #GET_DISCOVERY_MODE Display Border (#SET_ / #GET_) Enable/Disable the display border Syntax #SET_DISP_BORDER PARAM1 PARAM2...
  • Page 71 Commands Display Source Label (#SET_ / #GET_) Enable/Disable the display source label. Syntax #SET_DISP_SOURCE PARAM1 PARAM2 PARAM1 = 0, A ~ D 0 - ALL WINDOWS (FEEDBACK LISTS ALL WINDOWS IN ORDER A ~ D) A ~ D - WINDOWS Parameters PARAM2 = 0 ~ 1 0 - DISABLED...
  • Page 72 Commands Display Window Label (#SET_ / #GET_) Enable/Disable display window label. Syntax #SET_DISP_WINDOW PARAM1 PARAM2 PARAM1 = 0, A ~ D 0 - ALL WINDOWS (FEEDBACK LISTS ALL WINDOWS IN ORDER A ~ D) A ~ D - WINDOWS Parameters PARAM2 = 0 ~ 1 0 - DISABLED 1 - ENABLED...
  • Page 73 Commands EDID Mode (#SET_ / #GET_) Set input EDID Mode. Syntax #SET_EDID_MODE PARAM1 PARAM2 PARAM1 = 1 ~ 4, 0 1 ~ 4 - HDMI INPUTS 0 - ALL HDMI INPUTS (FEEDBACK LISTS ALL INPUTS IN ORDER 1 ~ 4) Parameters PARAM2 = 1 ~ 4 1 - INTERNAL - 720P 2 CH...
  • Page 74 Commands Feedback (#SET_ / #GET_) Turn all unsolicited Feedback ON or OFF for RS-232 and IP Interfaces. Syntax #SET_FEEDBACK PARAM1 PARAM1 = 0 ~ 1 Parameters 0 - OFF 1 - ON Examples #SET_FEEDBACK 1 Get status of Feedback. Syntax #GET_FEEDBACK Firmware Version Get Firmware version.
  • Page 75 Commands Send HPD (Hot Plug Detect) pulse to one or all HDMI inputs. Syntax #SEND_HPD PARAM1 PARAM1 = 1 ~ 5, 0 1 ~ 4 - HDMI INPUTS Parameters (param1) 5 - HDMI OUTPUT 0 - ALL HDMI INPUTS #SEND_HPD 1 Example #SEND_HPD 5 #SEND_HPD 0...
  • Page 76 Commands Internal EDID (#SET_ / #GET_) Download a preset Internal EDID. Syntax #SET_EDID_MODE PARAM1 PARAM2 PARAM1 = 1 ~ 4, 0 1 ~ 4 - HDMI INPUTS 0 - ALL HDMI INPUTS (FEEDBACK LISTS ALL INPUTS IN ORDER 1 ~ 4) Parameters PARAM2 = 1 ~ 4 1 - INTERNAL - 720P 2 CH...
  • Page 77 Commands IP Address (#SET_ / #GET_) Set the IP Address. Syntax #SET_IP_ADDRESS PARAM1 PARAM1 = XXX.XXX.XXX.XXX Parameters XXX - 0 ~ 255 Examples #SET_IP_ADDRESS 192.168.1.72 Get the current IP Address. Syntax #GET_IP_ADDRESS IP Mode (#SET_ / #GET_) Set the IP Mode to STATIC or DHCP. Syntax #SET_IP_ADDRESS PARAM1 #SET_IP_MODE PARAM1...
  • Page 78 Commands MAC Address Print the MAC address to the screen. Syntax #GET_MAC_ADDR Mute (#SET_ / #GET_) Set ouput audio Mute. Syntax #SET_MUTE PARAM1 PARAM1 = 0 ~ 1 Parameters 0 - UNMUTE 1 - MUTE Examples #SET_MUTE 0 Get output audio Mute status. Syntax #GET_MUTE OSD Timeout (#SET_ / #GET_)
  • Page 79 Commands Output Resolution (#SET_ / #GET_) Set Output Resolution. Syntax #SET_OUTPUT_RES PARAM1 PARAM1 = 1 ~ 23 1 - 640 X 480 60 HZ 2 - 800 X 600 60HZ 3 - 1024 X 768 60 HZ 4 - 1280 X 768 60 HZ 5 - 1280 X 960 60 HZ 6 - 1280 X 1024 60 HZ 7 - 1366 X 768 60 HZ...
  • Page 80 Commands Preset (#SET_) Set current window settings to a preset. Syntax #SET_PRESET PARAM1 (OPTIONAL PARAM2) PARAM1 = 1 ~ 18 1 ~ 18 - PRESETS Parameters PARAM2 = R R - SAVE INPUT ROUTES ONLY #SET_PRESET 1 Examples #SET_PRESET 2 R Preset Name (#SET_ / #GET_) Modify the Preset Name.
  • Page 81 Commands Reboot Reboot the unit. Syntax #REBOOT Recall a Preset. Syntax P PARAM1 PARAM1 = A, B, C, D, Q, 1 ~ 18 A - FULLSCREEN PRESET WINDOW A INPUT 1 B - FULLSCREEN PRESET WINDOW B INPUT 2 Parameters C - FULLSCREEN PRESET WINDOW C INPUT 3 D - FULLSCREEN PRESET WINDOW D INPUT 4 Q - QUAD DEFAULT PRESET...
  • Page 82 Commands Saturation (#SET_ / #GET_) Set saturation adjustment for one or more windows. #SET_SATURATION PARAM1 PARAM2 (OPTIONAL Syntax PARAM1 PARAM2 PARAM1 PARAM2...) PARAM1 = A ~ D A ~ D - WINDOWS A ~ D Parameters PARAM2 = 0 ~ 100 0 ~ 100 - SATURATION VALUE #SET_SATURATION A 50 Examples...
  • Page 83 Commands Subnet (#SET_ / #GET_) Set the Subnet Mask. Syntax #SET_SUBNET PARAM1 PARAM1 = XXX.XXX.XXX.XXX Parameters XXX - 0 ~ 255 Examples #SET_SUBNET 255.255.255.0 Get the current Subnet Mask. Syntax #GET_SUBNET Telnet (#SET_ / #GET_) Enable/Disable Telnet Access Syntax #SET_TELNET_ACCESS PARAM1 PARAM1 = 0 ~ 1 Parameters 0 - DISABLED...
  • Page 84 Commands Telnet Message (#SET_ / #GET_) Enable/Disable the Telnet login welcome message. Syntax #SET_TELNET_MESSAGE PARAM1 PARAM1 = 0 ~ 1 Parameters 0 - HIDE 1 - SHOW Examples #SET_TELNET_MESSAGE 0 Get the current Telnet login welcome message status. Syntax #GET_TELNET_MESSAGE Telnet Port (#SET_ / #GET_) Set the Telnet communication port.
  • Page 85 Commands Web Interface Port Number (#SET_ / #GET_) Set the web interface port number. Syntax #SET_WEB_PORT PARAM1 Parameters PARAM1 = 1 ~ 65535 Examples #SET_WEB_PORT 80 Get the current web interface port number. Syntax #GET_WEB_PORT Window (#SET_ / #GET_) Set window adjustment values. #SET_WINDOW PARAM1 PARAM2 PARAM3 PARAM4 Syntax PARAM5 PARAM6...
  • Page 86 This page left intentionally blank.

  • Page 87: 04 Appendix

    Multiview Seamless Switcher 04 Appendix...

  • Page 88: Default Settings

    Default Gateway 192.168.1.1 HTTP Listening Port Telnet Listing Port Telnet / TCP Access Enabled Gefen Syner-G Discovery Enabled Gefen Syner-G Discovery Mode Read / Write Gefen Syner-G Show Device Hide Me Description Setting Input Names Input 1 - Input 4...
  • Page 89 Upgrading the Firmware Firmware upgrading for this product will be managed by Gefen Syner-G™ software. For instructions on upgrading firmware on this product, please download the software from: http://www.gefen.com/technology/gefen-syner-g-software IMPORTANT: DO NOT power-off or disconnect the AC power cord from the switcher, at any time, during the firmware upgrade process.

  • Page 90: Specifications

    Specifications* Maximum Resolutions Inputs • 1080p Full HD (1920 x 1080, 60 Hz; 1920 x 1200 60 Hz) Output • 4K Ultra HD (3840 x 2160) 60 Hz, 4:4:4 Electrical Maximum Pixel Clock • 600 MHz Default Preset buttons • 2x Tact-type, blue backlight Custom User Preset buttons •...
  • Page 91 This page left intentionally blank. page | 81...
  • Page 92 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010, USA 1800 S McDowell Blvd, Petaluma, CA 94954, USA 1-707-283-5900 1-800-472-5555 Copyright © 2018 Nortek Security & Control, LLC Part Number: MAN-EXT-UHD600A-MVSL-41 Version A2 (Firmware v3.66)
