Setting The Ir Channel On The Remote - Gefen 4x1 DVI Switcher User Manual

In the event that IR commands from other remote controls interfere with the
supplied IR Remote Control unit, changing the IR Remote Control's IR channel
will fi x the problem. The IR Remote Control unit has a bank of DIP switches used
for setting the IR channel. The DIP switch bank is located underneath the battery
cover.
Corresponding DIP Switch Settings for each IR Channel
IR Channel 0
(default)
ON
1 2
It is important that the IR channel on the Remote Control unit, matches the IR
channel set on the 4x1 DVI Switcher. For example, if both DIP switches on the
IR Remote Control unit are set to IR channel 0 (both DIP switches down), then
the 4x1 DVI Switcher must also be set to IR channel 0. See the next page for
details on how to change the IR channel on the 4x1 DVI Switcher.
IR REMOTE CONTROL UNIT

Setting the IR channel on the Remote

IR Channel 1
ON
1 1 2 2

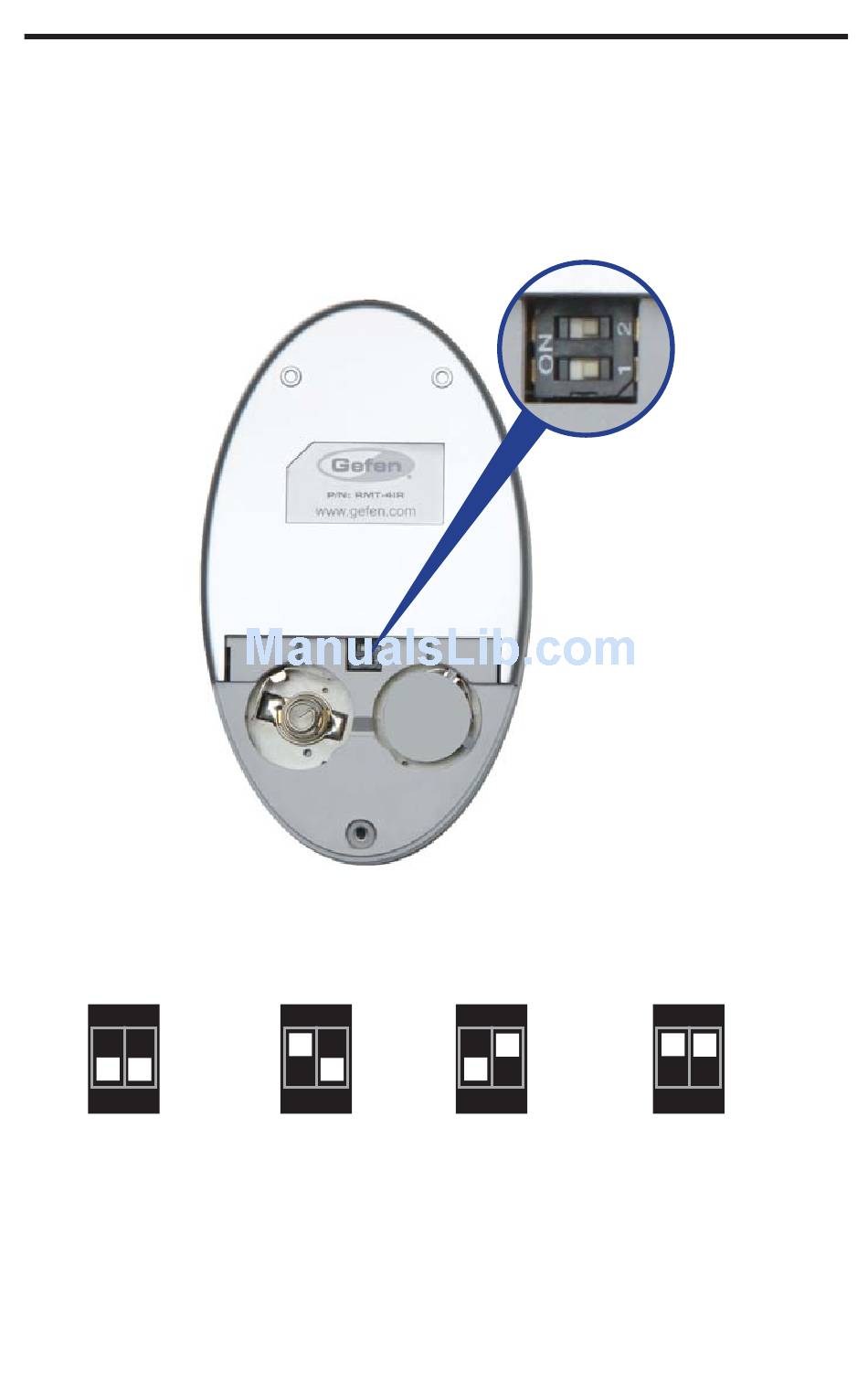

Left: Picture of the
opened rear battery
compartment of the IR
remote showing the
exposed DIP Switch
bank between the
battery chambers.
IR Channel 2
ON
1 2
10
IR Channel 3
ON
1 2
