Do not operate the electrolytic cell without water circulation. A buildup of fl ammable gases can result
in FIRE or EXPLOSION.
Sometimes
Not Covered
Salinity
Studs
Flow/Temp/Salinity Sensor Face must
be clean at all times for proper operation
Flow/Temp/Salinity Sensor

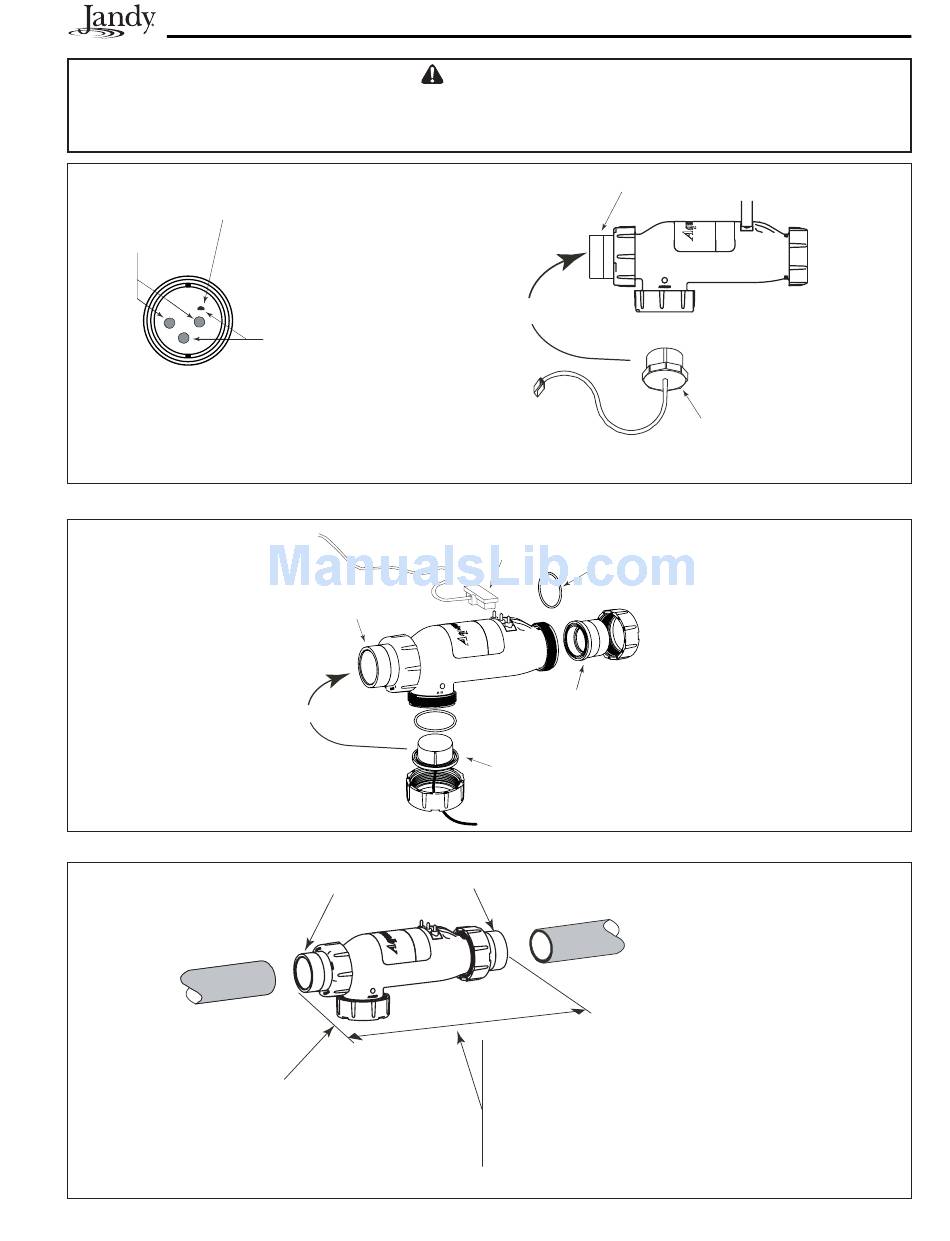

Figure 8.
Figure 9.
Cell Installation
2" pvc
Sensor Port Plug and Nut
Figure 10.
Pipe Cutout
Temperature
Sensors
DC Cord Plug is Connected
2" x 2½" Union
or
Universal Unions and Nuts
WARNING
Universal Union
or
Connector
to Terminal Studs
*
O-Ring
Seal
2 x 2½" Tailpiece
with Coupling Nut
Sensor Plug
O-ring and Union Nut
2" pvc
For a 2" pipe, the cutout is 13⅞" with the full
unions.
For a 50 mm pipe, the cutout is 352 mm with the
full unions.
NOTE Total length of the electrolytic cell with
the full unions is 16⅝".
Cell
Flow/Temp/Salinity
Sensor
* Ensure the DC Plug is properly
and securely connected to
the terminal studs of the cell.
