Intel® Server System SR2500AL

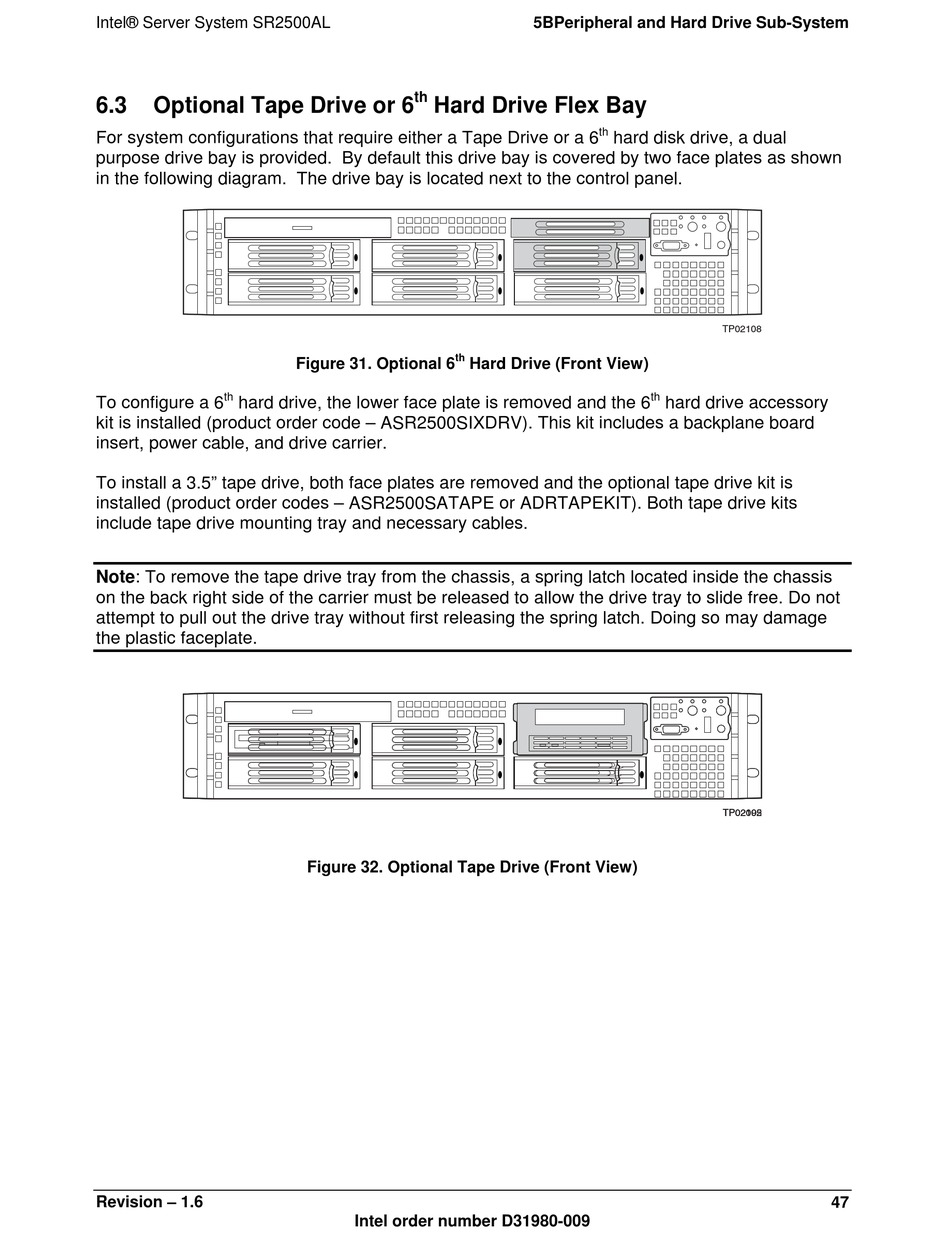

6.3 Optional Tape Drive or 6
For system configurations that require either a Tape Drive or a 6
purpose drive bay is provided. By default this drive bay is covered by two face plates as shown
in the following diagram. The drive bay is located next to the control panel.
th
To configure a 6 hard drive, the lower face plate is removed and the 6
kit is installed (product order code – ASR2500SIXDRV). This kit includes a backplane board
insert, power cable, and drive carrier.
To install a 3.5" tape drive, both face plates are removed and the optional tape drive kit is
installed (product order codes – ASR2500SATAPE or ADRTAPEKIT). Both tape drive kits
include tape drive mounting tray and necessary cables.
Note: To remove the tape drive tray from the chassis, a spring latch located inside the chassis
on the back right side of the carrier must be released to allow the drive tray to slide free. Do not
attempt to pull out the drive tray without first releasing the spring latch. Doing so may damage
the plastic faceplate.
Revision – 1.6
th
Hard Drive Flex Bay
th
Figure 31. Optional 6 Hard Drive (Front View)
Figure 32. Optional Tape Drive (Front View)
Intel order number D31980-009
5BPeripheral and Hard Drive Sub-System
th
hard disk drive, a dual
th
hard drive accessory
TP02108
TP02092 TP02105
47
