Output Terminal Panel Connections - MULTIQUIP MQ Power DCA25USIXF Operation And Parts Manual

UVWO Terminal Output Voltages
Various output voltages can be obtained using the Output
Terminal Lugs . The voltages at the terminals are depen-
dent on the position of the Voltage Selector Switch and the
adjustment of the Voltage Regulator Control Knob .
Remember the voltage selector switch determines the range
of the output voltage. The voltage regulator (VR) allows the
user to increase or decrease the selected voltage.

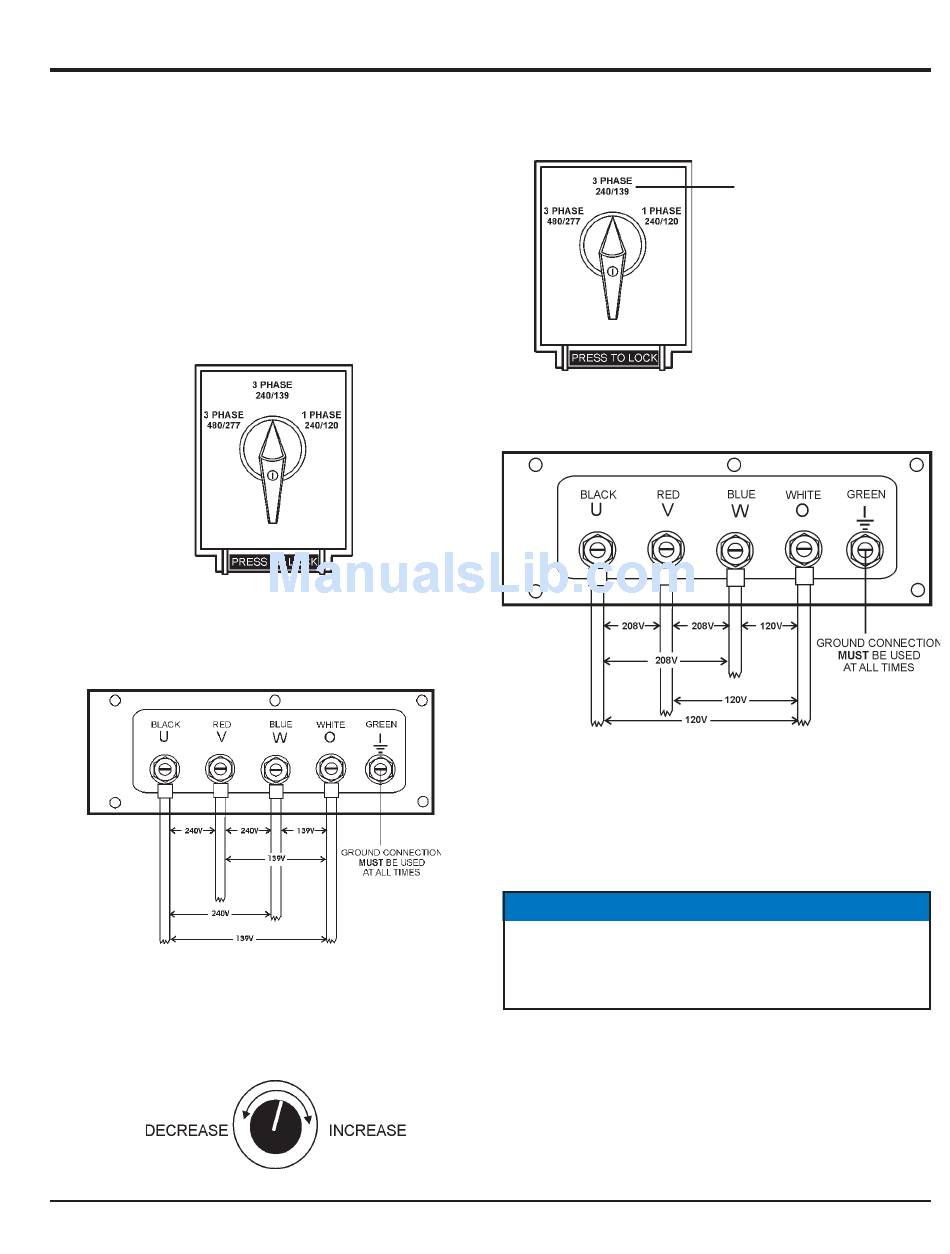

3Ø 240/139 Output Terminal Lug Voltages
1. Place the voltage selector switch in the 3Ø 240/139
position as shown in Figure 21.
Figure 21. Voltage Selector Switch 240/139V
Three-Phase Position
2. Connect the load wires to the Output Terminal Lugs as
shown in Figure 22.
Figure 22. Output Terminal Lugs
3Ø-240/139V Connections
3. Turn the voltage regulator knob (Figure 23) clockwise to
increase voltage output, turn counterclockwise to
decrease voltage output.
Figure 23. Voltage Regulator Knob (139V/240V)
DCA25USIXF/DCA25USI2XF — OPERATION AND PARTS MANUAL — REV. #2 (07/26/11) — PAGE 27

OUTPUT TERMINAL PANEL CONNECTIONS

3Ø 208V/1Ø120V Output Terminal Lug Voltages
1. Place the voltage selector switch in the 3Ø 240/139
position as shown in Figure 24.
2. Connect the load wires to the Output Terminal Lugs as
shown in Figure 25.
Figure 25. Output Terminal Lugs
3Ø-208/120V Connections
3. Turn the voltage regulator knob (Figure 23) clockwise to
increase voltage output, turn counterclockwise to
decrease voltage output.
NOTICE
To achieve a 3Ø 208V output the voltage selector switch
must be in the 3Ø-240/139 position and the voltage
regulator must be adjusted to 208V.
Use this position for
3Ø-240 or 1Ø120V.
Figure 24. Voltage Selector
Switch 240/139V
Three-Phase Position
1
