Output Terminal Panel

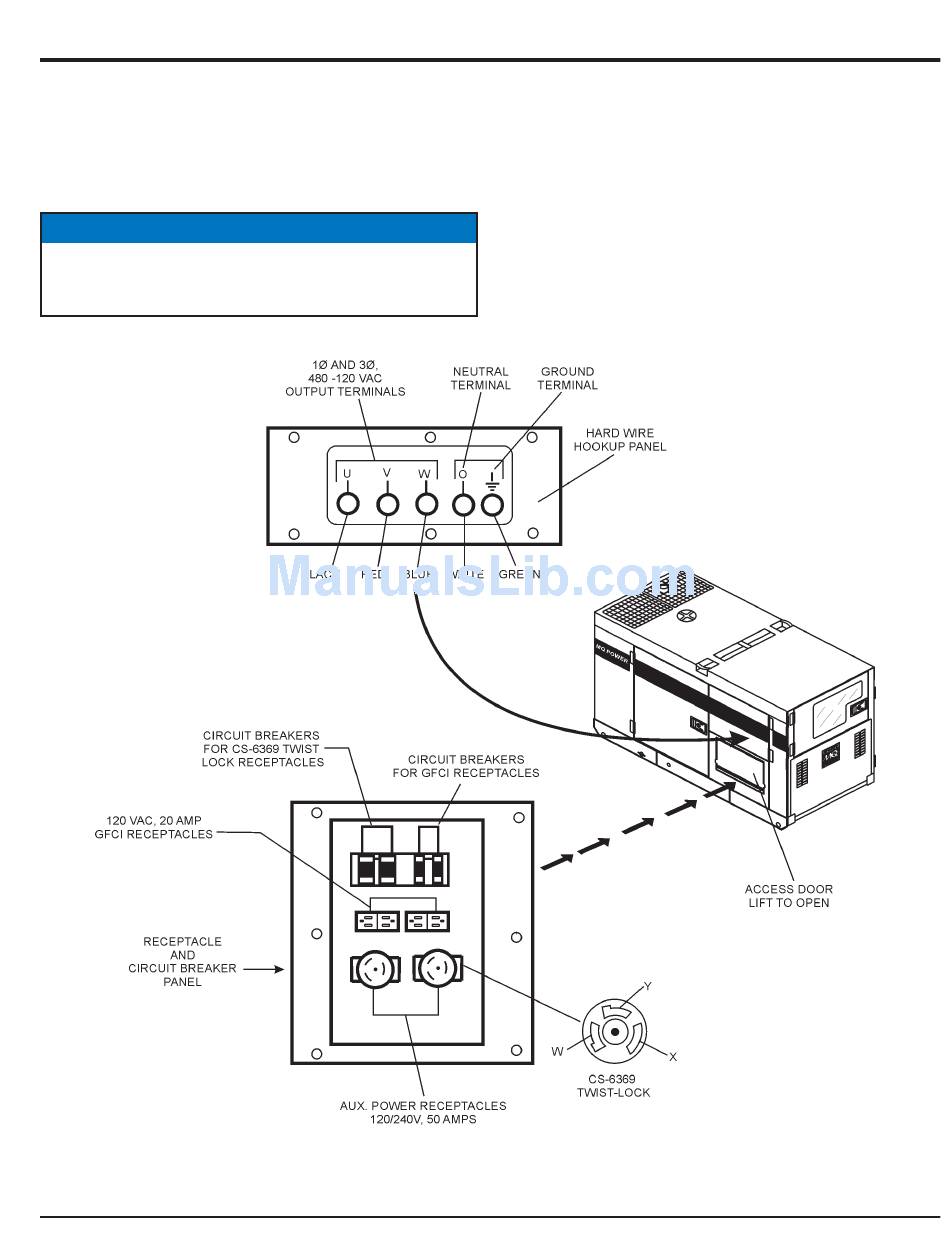

The Output Terminal Panel (Figure 8) shown below is located
on the right-hand side (left from control panel) of the generator.
Lift up on the cover to gain access to receptacles and terminal
lugs.
NOTICE
Terminal legs "O" and "Ground" are considered bonded
grounds .
DCA25USIXF/DCA25USI2XF — OPERATION AND PARTS MANUAL — REV. #2 (07/26/11) — PAGE 21
Output Terminal Familiarization
The " Output Terminal Panel " (Figure 6) is provided with the
following:
■ ■ ■ ■ ■
Two (2) 120/240V output receptacles @ 50 amp
■ ■ ■ ■ ■
Two (2) Circuit Breakers @ 50 amps
■ ■ ■ ■ ■
Two (2) 120V GFCI receptacles @ 20 amp
■ ■ ■ ■ ■
Two (2) GFCI Circuit Breakers @ 20 amps
■ ■ ■ ■ ■
Five (5) Output Terminal Lugs ( U, V, W, O, Ground)
■ ■ ■ ■ ■
One Main Circuit Breaker @60 amps
Figure 8. Output Terminal Panel
OUTPUT TERMINAL PANEL
