6.5.1 Checking the mute inputs

Picture 5 of Fig. 07 shows mute inputs 1–3. The yellow mute lead of the hands-free system should be connected to one of these
inputs. Which mute input should be selected is shown in the tables:
Fig. 08:
Radio model
Type-dependent
pin allocation
Audi,
Volkswagen,
Grundig
Radio model
Ford,
Mercedes,
Porsche,
Becker
Radio model
Blaupunkt
Radio model
Philips
EGO FLASH
Socket contact housing
Pin Wire colour Function
1
2
Mute
3
4
blue Ignition (15)
7
red Permanent positive (30)
8
brown Ground (31)
Socket contact housing
Pin Wire colour Function
1
2
3
Mute
4
red Permanent positive (30)
7 blue Ignition (15)
8
brown Ground (31)
Socket contact housing
Pin Wire colour Function
1
2
Mute
3
4
red Permanent positive (30)
7 blue Ignition (15)
8
brown Ground (31)
Socket contact housing
Pin Wire colour Function
1
Mute
2
3
4
red Permanent positive (30)
7 blue Ignition (15)
8
brown Ground (31)

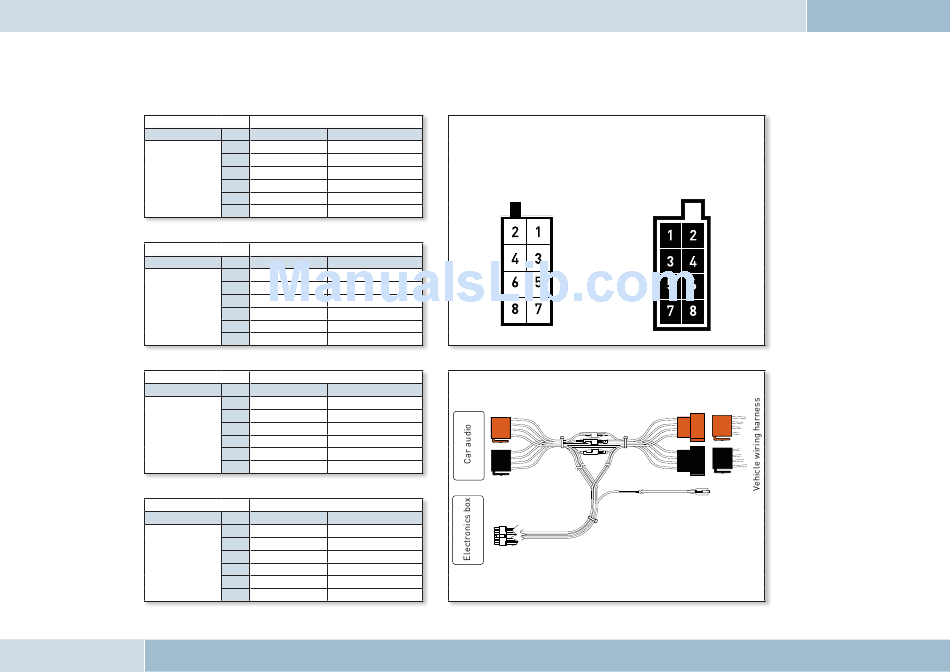

Wiring of power supply connectors
Socket wiring from Plug wiring from
the rear (see table) the rear
Fig. 09:
Plug wiring scheme
Fig. 10:
Connection system
