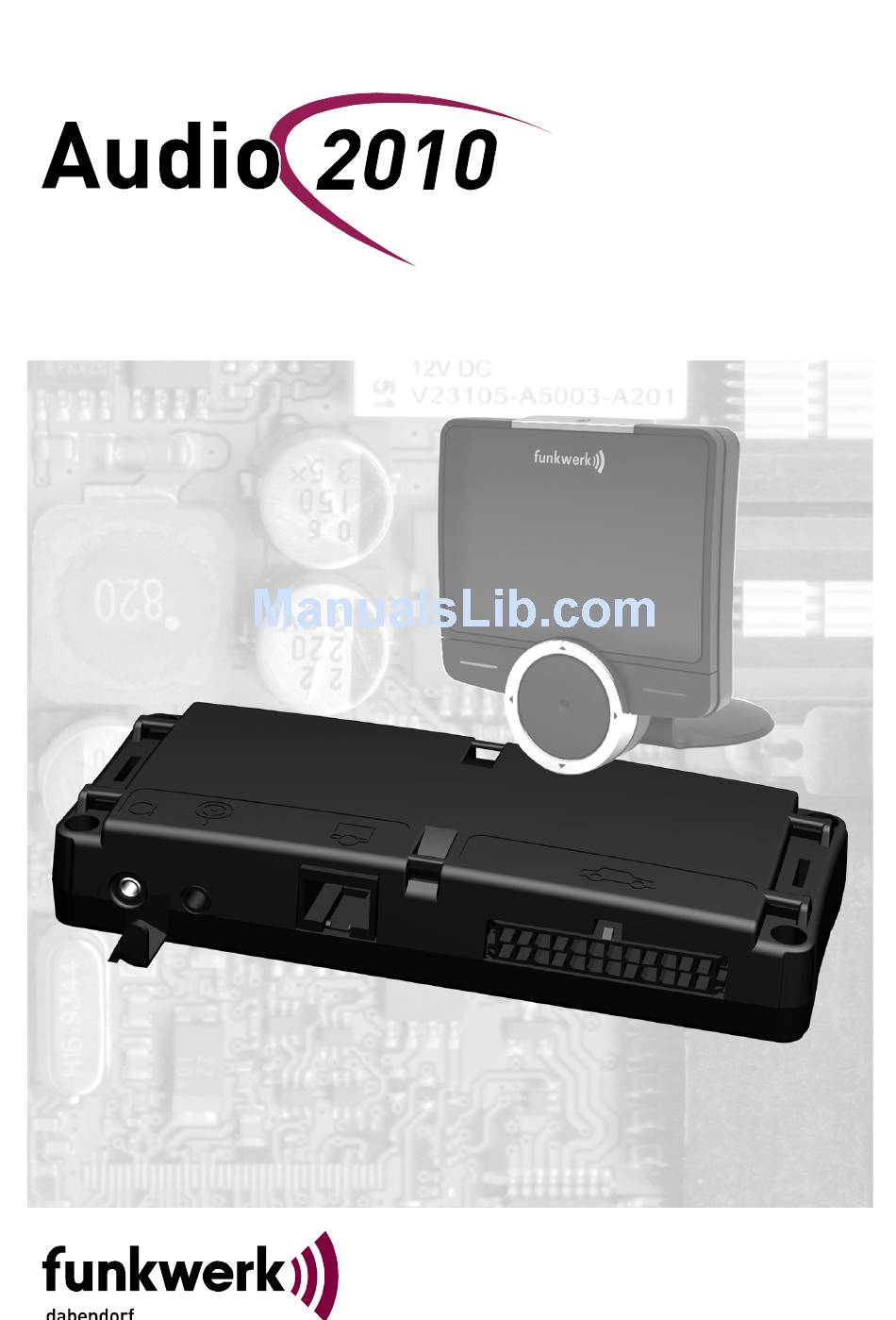

- Page 1 Handsfree System Installation Instructions 156 8000 1.00...
- Page 2 Audio 2010 Funkwerk Dabendorf GmbH Märkische Straße D - 15806 Dabendorf Phone: +49 3377 316 - 0 Fax: +49 3377 316 - 300 info@fwd-online.de www.fwd-online.de Rights to changes and deviations from the scope of delivery reserved as required by technical pro-...
- Page 3 Audio 2010 Table of contents Table of contents Notes on safety ................ 4 Introduction ................6 Scope of delivery ..............7 Technical data ................8 Certifications ................8 Installation ................9 6. 1. Identify prerequisites ..............9 6. 2. Selecting installation locations of the components ....10 6.
-
Page 4: Notes On Safety
Audio 2010 Notes on safety 1. Notes on safety Incorrect installation Incorrect installation can lead to damage to the device or to the vehicle! Special knowledge and capabilities are necessary for the installation of the handsfree system. Incorrectly connected cables or short-circuit can result in serious device damage. - Page 5 Audio 2010 Notes on safety Insulation damage Damaged insulation can lead to device damage. In their layout posi- tion, the cables may not be subjected to tension. Route the cables so that they are not squeezed or rub against objects.
-
Page 6: Introduction
Bluetooth radio transmission standard. Before the installation of the „Audio 2010“ in your vehicle, please insure that your telephone interacts with it correctly. Where appropriate, inquire with your dealer or your specialist workshop. Our service is also glad to remain available to you for information. -
Page 7: Scope Of Delivery
Audio 2010 Scope of delivery 3. Scope of delivery 1 - Electronic box 5 - Installation set 2 - Actuator with OLED display 6 - Installation instructions (cable length 2m) 7 - Operating manual 3 - Microphone (cable length 2,5m) -
Page 8: Technical Data
Audio 2010 Technical data 4. Technical data Electronic box dimensions 131,9mm x 54mm x 23mm Display dimension 55mm x 61,9mm x 21mm Operating voltage 11 V to 15 V Quiescent current take-up max. 0,1 mA Operating current level max. 750 mA... -
Page 9: Installation
Audio 2010 Installation 6. Installation Incorrect installation Incorrect installation can lead to damage to the device or the vehicle! Special knowledge and capabilities are necessary for the installation of the handsfree system. Incorrectly connected cables or short-circuits can lead to serious device damage. Before you begin with the installation, the car battery needs to be disconnected. -
Page 10: Selecting Installation Locations Of The Components
Audio 2010 Installation 6. 2. Selecting installation locations of the components Danger of injury Unsuitable installation locations can cause injuries in case of a road accident, or make safety systems ineffective! Selection of the installation location for the electronic box In the electronic box an antenna is installed for the radio link to the mobile tele- phone. - Page 11 Audio 2010 Installation Unsuitable for the electronic box: • Leg and knee area • Possible impact area of the head • Area of influence of the airbag • In the engine compartment • Behind the radio • Near the fuse box...
- Page 12 Audio 2010 Installation Unsuitable for the microphone: • In loudspeaker proximity (less than 80 cm separation distance) • Under the instrumentation panel • In the air stream of the window or the fan Selection of the installation location actuator/display Suitable for the actuator: •...
-
Page 13: Preparation For Installation Of The Components
Audio 2010 Installation 6. 3. Preparation for installation of the components Dismantle radio 1. Remove the radio panel carefully, with help of a plastic wedge. In this case it is to be ensured that no holding lugs or interlocks are broken off. -
Page 14: Mounting Microphone
Audio 2010 Installation Possibility 2 - through installation with cable ties: Eyelets, separately provided for the cable tie assemblies, are located on the elec- tronic box. 6. 5. Mounting microphone Note: 1. In order to guarantee effortless laying of the line, steering column paneling or similar paneling parts must be removed as appropriate. -
Page 15: Installation Of The Display And Actuator
Audio 2010 Installation 6. 6. Installation of the display and actuator Surfaces to be bonded must be free from grease and dust. Clean the planned location with a suitable cleaning agent, such as e.g. spirit. Employ these agents only if the plastics or painted wood surfaces do not dissolve and are not self-lubricating. - Page 16 Audio 2010 Installation Assembly of the components (Variant 2) Variant 3 If you wish to attach the display with the stand base, you can attach this with the adhesive pad or with a bolt. Fixing screw Adhesive pad Installation of the retention foot (Variant 3)
- Page 17 Audio 2010 Installation The utilization of the stand base offers you further possibilities for installation. The display can also be mounted on its side or upside down. With Variants 2 and 3 you should latch the stand base and ball adapter after align-...
-
Page 18: Connection To The Vehicle Electronics Using An Adapter Cable
Audio 2010 Connection to the vehicle electronics 7. Connection to the vehicle electronics using an adapter cable 7. 1. Installation of the ISO connection cable Before the installation of the cable is begun, the battery must be dis- connected! The minus pole must be disconnected from ground for this purpose. - Page 19 Audio 2010 Connection to the vehicle electronics Socket contact housing Allocation of the power supply Radio - type Pin Control color Function plug connection Mute Allocation of the socket from behind Audi / VW / (see Table) Grundig blue Ignition (Ter.15) Battery + (Ter.30+)
-
Page 20: Checking The Installation
Checking the mute inputs The mute inputs 1-3 can be seen in the illustration. The yellow mute cable of the Audio 2010 is connected to one of these inputs. Please refer to the table for which mute input is to be used. -
Page 21: Installation With Additional Iso(2Car) Adapter
Audio 2010 Connection to the vehicle electronics 7. 3. Installation with additional ISO(2Car) adapter If your vehicle does not have an ISO plug connector, you have the possibility to connect the handsfree system to the vehicle electronics using an ISO adapter. -
Page 22: Connecting Cable
Audio 2010 Connection to the vehicle electronics 7. 4. Installation with the aid of a vehicle-specific connecting cable If a vehicle-specific cable is employed (also designated Audio2Car Cable), this is connected as displayed in Fig. *) Similar to illustration -22-... -
Page 23: Connection To The Vehicle Electronics By Separate Wiring Of The Lines
Audio 2010 Connection to the vehicle electronics 8. Connection to the vehicle electronics by separate wiring of the lines Electronic box connector pin assignment Color Function yellow Loudspeaker RR+ white Loudspeaker RF+ green Loudspeaker LF+ orange Loudspeaker LR+ orange Radio LR+... -
Page 24: Reproduction Over The Phone Connection Of The Car Radio
Audio 2010 Connection to the vehicle electronics 8. 1. Reproduction over the phone connection of the car radio If your car radio has a phone connection (also often designated as „Tel-In“), then you can connect the loudspeaker output of the electronic box directly with this, according to the sketch (lines white, + and black/white, - of the adapter cable set). -
Page 25: Reproduction Over An External Loudspeaker
Audio 2010 Connection to the vehicle electronics 8. 2. Reproduction over an external loudspeaker In the following cases, an external loudspeaker (4Ω, min. 5W) must be employed: • If loudspeakers of the car radio should not be employed • If the output power of the loudspeaker channel exceeds 35 W (sine) and no telephone connection to the car radio is provided •... -
Page 26: Reproduction Over The Loudspeakers Of The Car Radio
Audio 2010 Connection to the vehicle electronics 8. 3. Reproduction over the loudspeakers of the car radio If your car radio does not have a phone connection, you can connect the loud- speaker output of the electronic box with the existing car loudspeakers, accord- ing to the sketch. -
Page 27: Faq - Frequently Asked Questions
Audio 2010 FAQ - Frequently Asked Questions 9. FAQ - Frequently Asked Questions Problem Cause Solution Utilization of an ISO ad- Vehicle does not have apter (see Section 7.3) any ISO plug connec- Utilization of a vehicle- tors on the radio specific cable (see Sec- tion 7.4) - Page 28 Audio 2010 FAQ - Frequently Asked Questions On switching off the Are the lines for conti- Connect lines correctly ignition, the call is inter- nuous plus and ignition (see Section 7.2) rupted. plus interchanged on the line circuit of the hands- free system.
-
Page 29: Spare Parts And Accessories
Audio 2010 Spare parts and accessories 10. Spare parts and accessories Spare parts: ➀ Electronic box ➁ Actuator with OLED display ➂ Adhesive pad ➃ Assembly set ➄ Microphone ➅ ISO connection cable -29-... - Page 30 ➃ Gray microphone • for installation in vehicles with bright interior ➄ idapter • control of the iPod over the Audio 2010 • Battery charging of the iPod ➅ External additional loudspeaker • Audio reproduction -30-...
-
Page 31: Declaration Of Conformity
Bluetooth is a brand of Bluetooth SIG, Inc. Herewith Funkwerk Dabendorf GmbH Märkische Straße D-15806 Dabendorf declares that the „Audio 2010“ Handsfree System is in agreement with the basic requirements and the other relevant specifications of Directive 1999/5/EC. 0681 -31-... - Page 32 Adress: Märkische Straße D - 15806 Dabendorf Phone: +49 3377 316 - 0 Fax: +49 3377 316 - 300 E-mail info@fwd-online.de Funkwerk Dabendorf GmbH Web: www.fwd-online.de...
