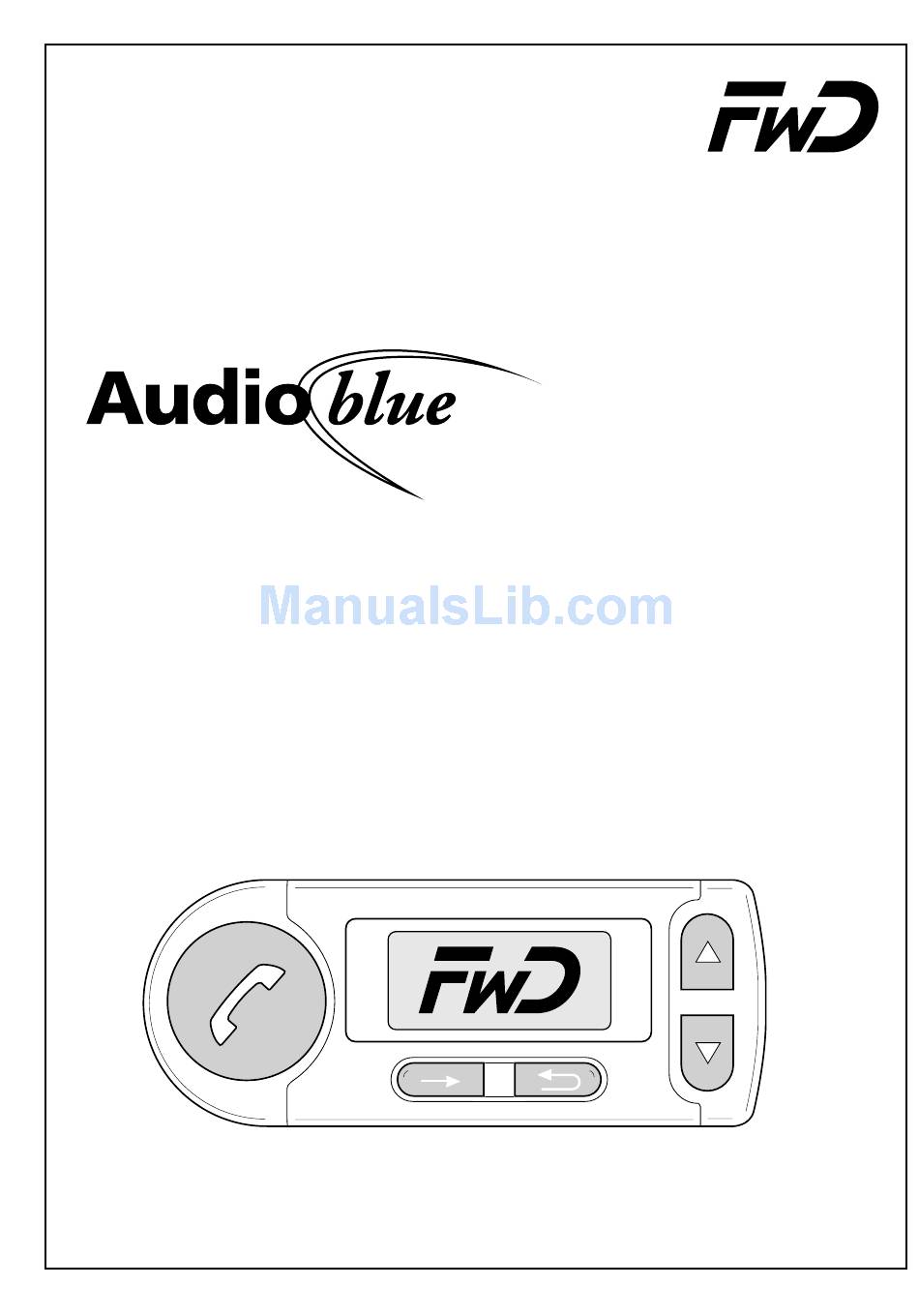

- Page 1 Bluetooth Hands Free Car Kit Installation Instruction / Operating Manual Funkwerk Dabendorf GmbH 119 8001 1.00...
-
Page 2: Table Of Contents
Audio blue Table of Contents Installation Instruction Operating Manual 1 Display and controls 2 First Operation 3 Signalling elements 4 Menu 4.1 Direct dailing 4.2 Messages 4.3 Call log 4.4 Phone book 4.5 Audio 4.6 Music 4.7 Settings 4.8 Help 4.9 Logout 5 User Administration 6 Making calls... -
Page 3: Installation Instruction
Audio blue Installation Instruction Funkwerk Dabendorf GmbH Installation by authorized dealer required... -
Page 4: Safety Instructions
Operating Instruction - Audio blue Safety Instructions Improper installation Improper installation may cause damages to the unit or to the vehicle! The installation of the hands-free car kit requires special knowledge and special abilities. We therefore strongly recommend to have the installation done by a professional. Personal injury Inappropriate places for the installation may cause personal injuries in accidents or may disable the safety equipment. - Page 5 Operating Instruction - Audio blue Insulation damage Damaged insulations may cause damages of the unit. The cables installed should not be exposed to tensile stress. Install the cables such as they are not pinched or chafed. Damage caused by polarity reversal or short circuiting Incorrectly connected cables or a short circuit may cause serious damage to the equipment.
- Page 6 Operating Instruction - Audio blue Tools 2 mm Cleaner...
- Page 7 Operating Instruction - Audio blue Airbag CLEANER Airbag...
- Page 8 Operating Instruction - Audio blue CLEANER...
- Page 9 Operating Instruction - Audio blue...
- Page 10 Operating Instruction - Audio blue Installation of the ISO connection cable The battery must be disconnected prior to installing the cable. To do this, disconnect the negative terminal from the ground. Refer to the figures below for the cable installation procedure. Inspecting the mute inputs Mute inputs 1 - 3 can be seen in Fig.
- Page 11 Operating Instruction - Audio blue...
-
Page 12: Checking The Installation
Audio blue Checking the installation If the ISO connection cable is properly connected, "www.fwd-online.de" will be shown on the display when the ignition is switched off. If this message does not appear, the ignition cable (blue) and the voltage supply cable (red) must be swapped (see Fig. 6). Please note that the fuses remain in position and are not exchanged when the fuse holders are screwed on. -
Page 13: Operating Manual
Audio blue Operating Manual Funkwerk Dabendorf GmbH... -
Page 14: Display And Controls
Operating Manual - Audio blue 1 Display and controls The Audio blue has 5 buttons. The following basic functions are assigned to the individual buttons. • Activates voice control when depressed for a few seconds • Accepts incoming call • Ends call •... -
Page 15: First Operation
Operating Manual - Audio blue 2 First Operation The following describes the procedures to use when operating the system for the first time. An "egg timer" appears when the system is switched on. The control unit might be updated then. If so, a pocket knife will appear. After that, the FwD logo will appear. See 11 software updating User log-on: •... -
Page 16: Signalling Elements
Operating Manual - Audio blue 3 Signalling elements Provider User 1 Symbols Field intensity display * Calls during absence * Battery charging * New SMS * Battery indicator * Connection in Bluetooth hands-free profile * Connection in Bluetooth headset profile * Bluetooth with user selection Deactivation Activation... -
Page 17: Menu
Operating Manual - Audio blue The Menus Menu Menu Phone Dial Messages User 1 Menu Menu Menu Call register Phonebook Audio Menu Menu Menu Menu Music Settings Logout Help 4.1 Dial Enter number Menu Enter number Dial 0171 Enter number Enter number Enter number 0171/11... -
Page 18: Phonebook
Operating Manual - Audio blue 4.4 Phonebook Phonebook Menu Side 21 Read Phonebook Phonebook Search Name Search A-BYTE Phonebook Import Source Import Importing Phonebook Import Source Phone Import Source SIM and Phone Phonebook Input name Add Contact A-BYTE Phonebook Sure ? Delete all Contacts Sure ? - Page 19 Operating Manual - Audio blue Book1 (SIM) 1/10 Phonebook Optio. Phonebook Side 20 Read numbers Adam Read Phonebook Optio. Book1 (SIM) 2/10 Side 19 Change Name Phonebook Optio. Side 19 Add Number Phonebook Optio. Side 19 Delete Phonebook Optio. Side 19 Delete all Change Name Phonebook Opt.
- Page 20 Operating Manual - Audio blue Phonebook Opti. Adam Adam Phonebook Opti. dial Read numbers 00:01:58 0179/123456 Adam 0221/56789 Change Number Phonebook Opti. Change Number 0179 Change Number 0179/222888 Change Number 0179/222888 Phonebook Opti. Change type Change type General Change type Home Change type Mobile...
-
Page 21: Audio
Operating Manual - Audio blue 4.5 Audio Menu Audio Ringing tone Audio Mute Ringing tone Ringing tone Audio Mike Gain Melody1 Mike Gain Ringing tone Mike Gain Melody2 Normal Mike Gain High Ringing tone Mike Gain Melody7 Very High 4.6 Music Menu Music Audio music... - Page 22 Operating Manual - Audio blue Menu Music Music Audio music PIN Audio music PIN Enter PIN PIN info Select PIN Set PIN Set PIN Audio music PIN Audio music PIN PIN info 0000 Music Sure? reset Reset Audio music Music Sure? Reset Audio music...
-
Page 23: Settings
Operating Manual - Audio blue 4.7 Settings Menu Settings Language Settings Car Kit Car Kit Language Language 1 Language Language 2 Display Car Kit Backlight Brightness Brightness Display Contrast Contrast Settings Recognizer language1/3 Recognizer- Language 1 language Recognizer language2/3 Language 2 Recognizer language3/3 Language 3 Settings... -
Page 24: Help
Operating Manual - Audio blue 4.8 Help Menu Voice dialog help 1/13 Help Possible voice commands Voice dialog help 13/13 number` `cancel` 4.9 Logout Menu Logout User logged out User Data / User Administration User Data: • Phone book • Ringing tone •... -
Page 25: Making Calls
Operating Manual - Audio blue Phoning Incoming Call: Adam Adam 0179/123456 0179/123456 00:00:00 00:00:00 Accept Reject Private Mode: Call options DTMF Töne 0177/123456 DTMF tones 00:01:48 Call options Mic. mute Call options Private Mode Hands-free operation Volume setting during the call: Adam 0179/123456 00:02:38... - Page 26 Operating Manual - Audio blue Voice Control Dial number: Adam Telefon Phone 0179/123456 Please speak ... Benutzer 1 User 1 00:00:00 1 - 2 sec. Dialog finished The number please Dialog finished 0179/123 0179/123 Dialog finished 0179/123556 Dialog finished 0179/123556 Dialog finished 0179/123 0179/123...
-
Page 27: Voice Control
Operating Manual - Audio blue Dialog finished 0179/123456 Dialog finished Adam 0179/123456 Please speak ... 00:00:00 The number please Dialog finished Adam 0179/123456 0179/123456 00:00:00 0179/123456 Dialog finished The number is dialled... - Page 28 Operating Manual - Audio blue Store numbers: Telefon Phone Benutzer 1 User 1 1 - 2 sec. The Name please Please repeat the name The Number please 0179/123456 The name is stored...
- Page 29 Operating Manual - Audio blue Dial name: Telefon Phone Benutzer 1 User 1 1 - 2 sec. The Name please Adam The number is dialled...
- Page 30 Operating Manual - Audio blue Delete names: Telefon Phone User 1 Benutzer 1 1 - 2 sec. The Name please Adam Would you like to remove the name? The name is removed Say names: Telefon Phone Benutzer 1 User 1 1 - 2 sec.
- Page 31 Operating Manual - Audio blue Delete all names : Phone User 1 1 - 2 sec. Would you like to remove the phone book? Would you like to remove the phone book? The phone book is removed Redial: Telefon Phone Benutzer 1 User 1 1 - 2 sec.
-
Page 32: Call Waiting / Swap / Conference
Operating Manual - Audio blue 8 Call Waiting / Swap / Conference Call Waiting: Caller A Caller B Telefon Telefon Reject: Benutzer 1 Benutzer 1 00:00:12 00:00:12 Caller A Telefon Benutzer 1 00:00:12 Accept: Active Subscribers 1/2 Telefon Caller B Benutzer 1 Active Subscribers 2/2 Telefon... - Page 33 Operating Manual - Audio blue Swap / Conference Swap: Conference: Active Subscribers Caller B Telefon Swap Telefon Telefon Caller A Benutzer 1 Benutzer 1 00:00:12 Call options Telefon Side 25 Conference Benutzer 1 Active Subscribers Telefon Caller B Phone Telefon Telefon End All Benutzer 1...
-
Page 34: Accessories And Spare Parts
Operating Manual - Audio blue 9 Accessories and spare parts For information on the currently supported mobile phone models, visit www.fwd-online.de on the Internet. Your dealer will also be happy to advise you on all issues in this respect. Spare parts: microphone control unit electronics box... -
Page 35: Software Updates
Operating Manual - Audio blue Software Updating You will find the current software under www.fwd-online.de www.fwd-online.de Hotline Our hot line is open every business day from 8 a.m. to 6 p.m. Procedure: • Check if you can solve the problem with the aid of the "Troubleshooting" section. •... -
Page 36: Troubleshooting
Operating Manual - Audio blue Troubleshooting Problem Cause Remedy If necessary, replace Audio blue does not There is no supply the fuse and check the switch on. voltage. cable and connections. The ignition is not Turn on the ignition. turned on. Check cable and 1A The ignition line is fuse. - Page 37 Operating Manual - Audio blue Problem Cause Remedy Initiate the device During device The Audio blue is pairing (see section on pairing, the phone not in the pairing Device Pairing. cannot find the mode. "Audio blue". Abort the pairing, set The phone does not another device class support the set...
-
Page 38: Declaration Of Conformity
Bluetooth is a trademark owned by Bluetooth SIG, Inc. Declaration of conformity The firm of Funkwerk Dabendorf GmbH Märkische Strasse D-15806 Dabendorf herewith declares that the Hands-Free Car Kit „Audio blue“... - Page 39 Notes...
- Page 40 Audio blue Funkwerk Dabendorf GmbH Märkische Straße D - 15806 Dabendorf Fon: +49 3377 316 - 0 Fax: +49 3377 316 - 300 info@fwd-online.de www.fwd-online.de As a result of technical progress, informations and illustrations in the installation manual as well as the extent of supply are subject to modification.
