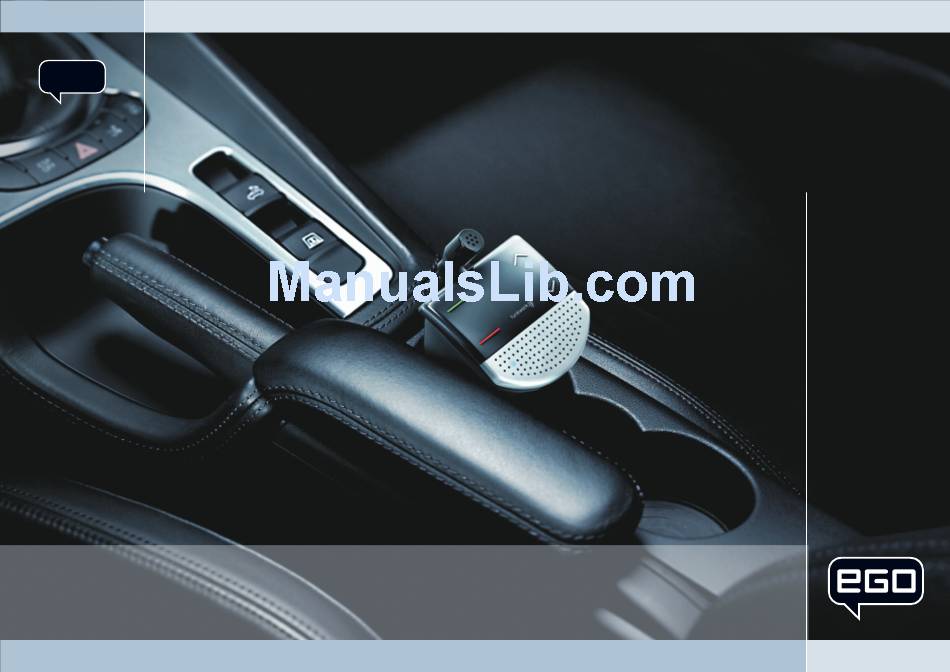

- Page 1 140 8001 1.00 English Bluetooth QD ID B013281...
-
Page 2: Table Of Contents
1 Table of contents Table of contents _______________________________________________________ Introduction / Foreword __________________________________________________ Safety instructions ______________________________________________________ Scope of supply / Packaging contents ________________________________________ Connection / Assembly ___________________________________________________ Function test ___________________________________________________________ Operating instructions ___________________________________________________ Functions ................................7.1.1 Function overview ..............................Symbols ................................... Putting into operation ............................. -
Page 3: Introduction / Foreword
2 Introduction / Foreword Congratulations on your new EGO! EGO CUP is the clever beginners' solution for using your telephone in your vehicle: easy to operate, noble and compact. Installing the EGO CUP in the vehicle requires no special knowledge and skills. Simply place the EGO CUP on the adapter, engage with this while turning clockwise and finally insert into the cupholder while turning clockwise. -
Page 4: Safety Instructions
3 Safety instructions 1. Improper installation — Improper installation can cause damage to the device or vehicle! Only use EGO CUP in the cupholder! 2. Risk of injury — Installing the device in inappropriate positions may cause injuries in a road accident or render safety devices ineffective. -
Page 5: Scope Of Supply / Packaging Contents
4 Scope of supply / Packaging contents EGO CUP Adapter for use in the cupholder Microphone Connection kit for connection to the vehicle cigarette lighter (12 V) Quick Guide Safety instructions Only the connection kit included in the scope of supply (Funkwerk Dabendorf, model: R0002037) is to be used. -
Page 6: Connection/Assembly
5 Connection/Assembly Connection Assembly Step 1 Step 2 Microphone connection Adapter Step 3 connection for cigarette The assembled system is to be inserted in the cupholder lighter of the vehicle by turning in a clockwise direction. 6 Funktion test The function test cannot be carried out until the system has been connected to a compatible Bluetooth ®... -
Page 7: Operating Instructions
7 Operating instructions NEGATIVE IMPACT ON DRIVING SAFETY! Inattentiveness can lead to dangerous traffic situations. Even when calling in handsfree mode, it is important to always focus your attention on what is happening around you. When navigating in difficult situations, try to avoid carrying out a phone conversation at all! 7.1 Functions 7.1.1 Function overview The EGO CUP handsfree system supports the Bluetooth... -
Page 8: Putting Into Operation
LED – functions An LED is integrated in the EGO CUP. This is used to display various states. The following states may occur. LED – state with inactive Bluetooth ® - connection - LED flashes in intervals shortly No mobile phone connected ®... -
Page 9: Switching On/Off
7.3.2 Switching on/off When the ignition is switched on or the connection kit is plugged in, the handsfree system switches on and the LED slowly flashes four times. Then the EGO CUP is in standby mode and ready to establish a connection. A compatible Bluetooth ®... -
Page 10: Calls
Calls 7.4.1 Incoming call The ringtone can be heard for an incoming call. In addition, the LED flashes periodically. The call can be accepted using the button. The call is rejected using the button. 7.4.2 Outgoing call There are multiple options for beginning a call. The telephone's redial is activated using the button, in which the number last dialled is dialled again. -
Page 11: Troubleshooting
Troubleshooting: Cause Remedy Problem Mini - USB not connected Connect mini - USB EGO CUP does not switch on Connection kit not connected Connect connection kit Ignition not switched on Switch on ignition The person on the other end of the Microphone not connected Connect microphone line cannot hear you... -
Page 12: Technical Specifications
8 Technical specifications EGO CUP dimensions 76 mm x 74 mm x 43,5 mm Length of adapter cable 0,6 m Operating voltage 12 V Temperature range -10 °C to +55 °C Supported Bluetooth ® profiles Handsfree 9 Certification 0681 In accordance with R&TTE Directive 1999/5/EC 03 5156 Model certification according to EU Directive 72/245/EEC (2006/28/EC) „Radio interference (electromagnetic compatibility) of vehicles“... -
Page 13: Conformity Statement
10 Conformity statement This device works with Bluetooth ® radio technology. In certain countries the use of this device may not be allowed or may be restricted. Please familiarise yourself with these restrictions and do not use the device if you are unsure whether usage is allowed in a certain country. - Page 14 FCC statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
