Installation of the ISO connecting cable

The battery must be disconnected before starting cable installation. Disconnect the grounding cable from the negative pole
of the battery. The cable installation procedure is shown in the illustrations.
Disconnect car wiring
harness from car radio

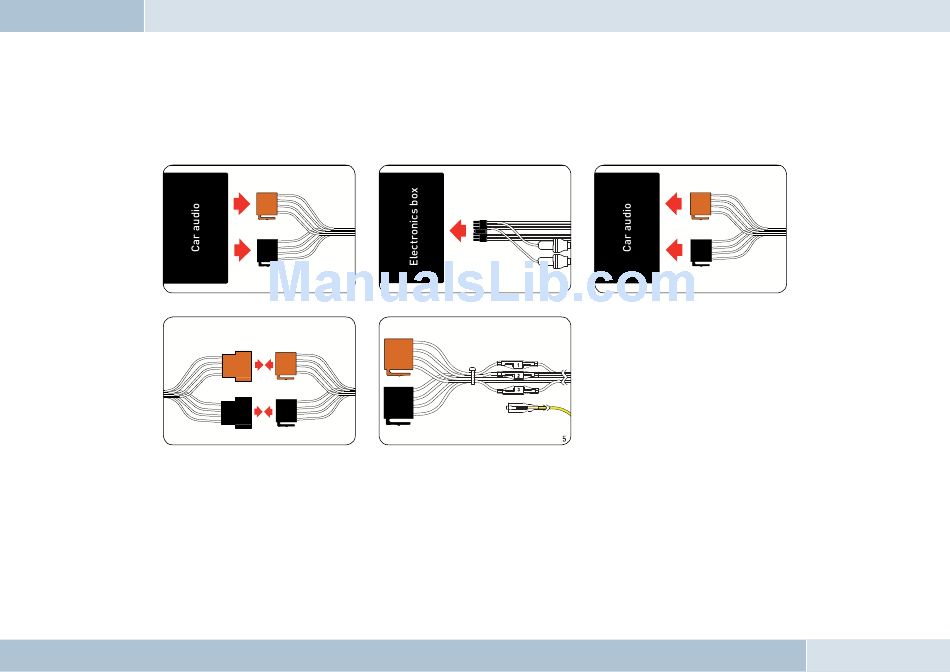

Fig. 07:
Installation
procedure
Connect EGO FLASH ISO connectors to car
wiring harness ISO connectors
When the installation is completed, reconnect the grounding cable to the negative pole of the battery.

6.5.1 Checking the mute inputs

Picture 5 of Fig. 07 shows mute inputs 1–3. The yellow mute lead of the hands-free system should be connected to one of
these inputs. Which mute input should be selected is shown in the tables:
Connect 14-pin ISO
connecting cable to
EGO FLASH
1
Connect yellow mute lead to
one of the three mute inputs
(see table)
4
Connect EGO FLASH ISO
connector to car radio
2
3
|
