3.1.3 Server Blade Configuration Example with One Enclosure in a 42U Rack

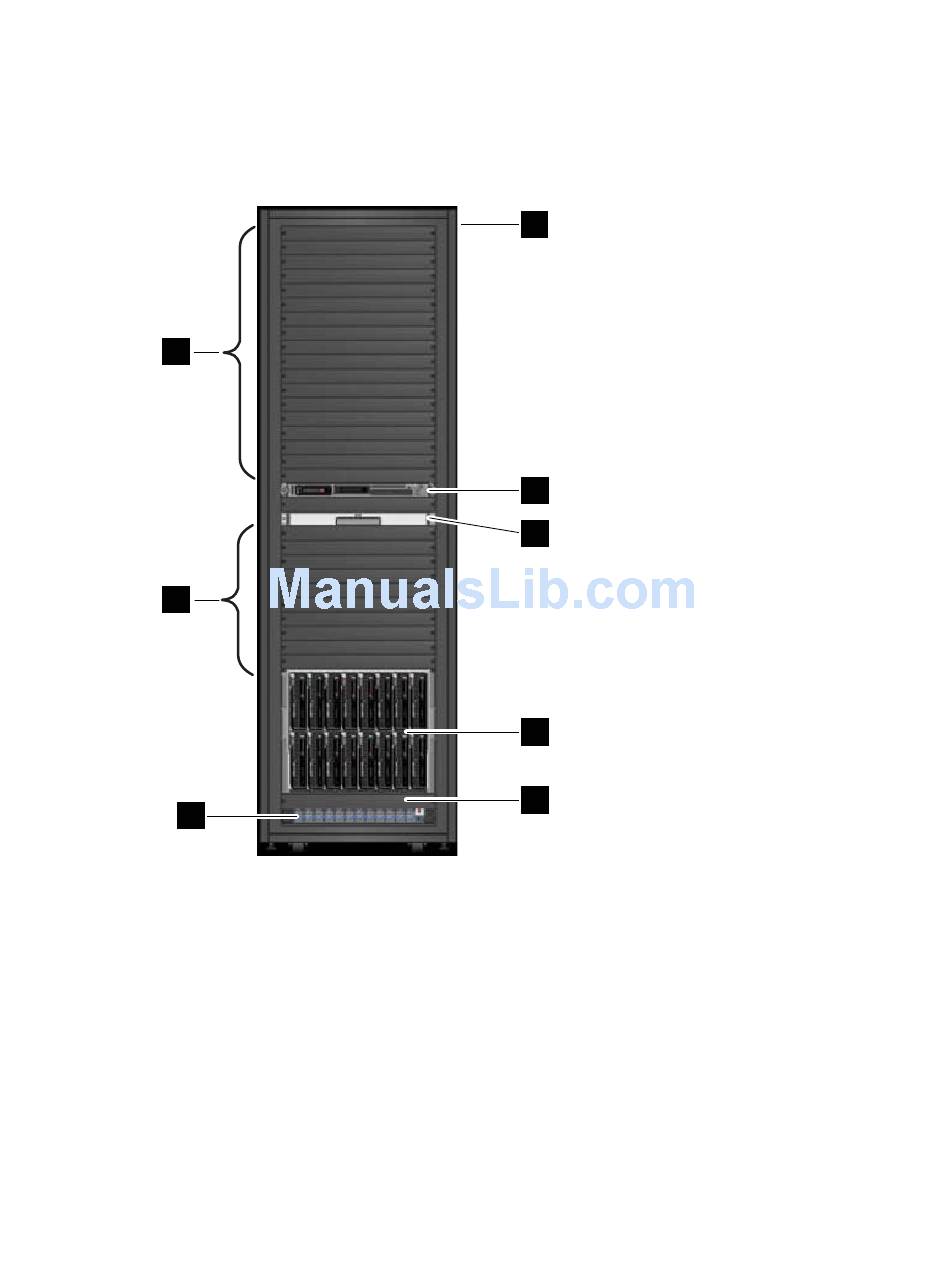

Figure 3-3 shows a typical CPE BladeSystem with c7000 enclosure solution with one enclosure
in a 42U rack. Some of the components shown in this figure might be optional, or they might be
installed in a different location or orientation with respect to the front and rear of the rack.
Figure 3-3 Server Blade Configuration with One Enclosure in a 42U Rack
2
2
6
Figure 3-3 shows the following cluster components:
1. HP 10000 Series rack.
2. Filler panels to close up any unused space on the front of the rack.
3. HP ProLiant DL14x Gx control node.
4. One TFT7600 rack-mount keyboard and monitor. This unit combines a full 17-inch WXGA+
monitor and keyboard with touch pad in a 1U format.
5. An HP BladeSystem c7000 enclosure with 16 half-height blades (BL460c or BL465c servers).
There is one c7000 enclosure in this configuration.
6. InfiniBand switch (shown facing forward for illustration purposes only).
7. Filler panel to close up reserved space on the front of the rack.
1
3
4
5
7
3.1 CPE c7000 Configuration Examples 47
