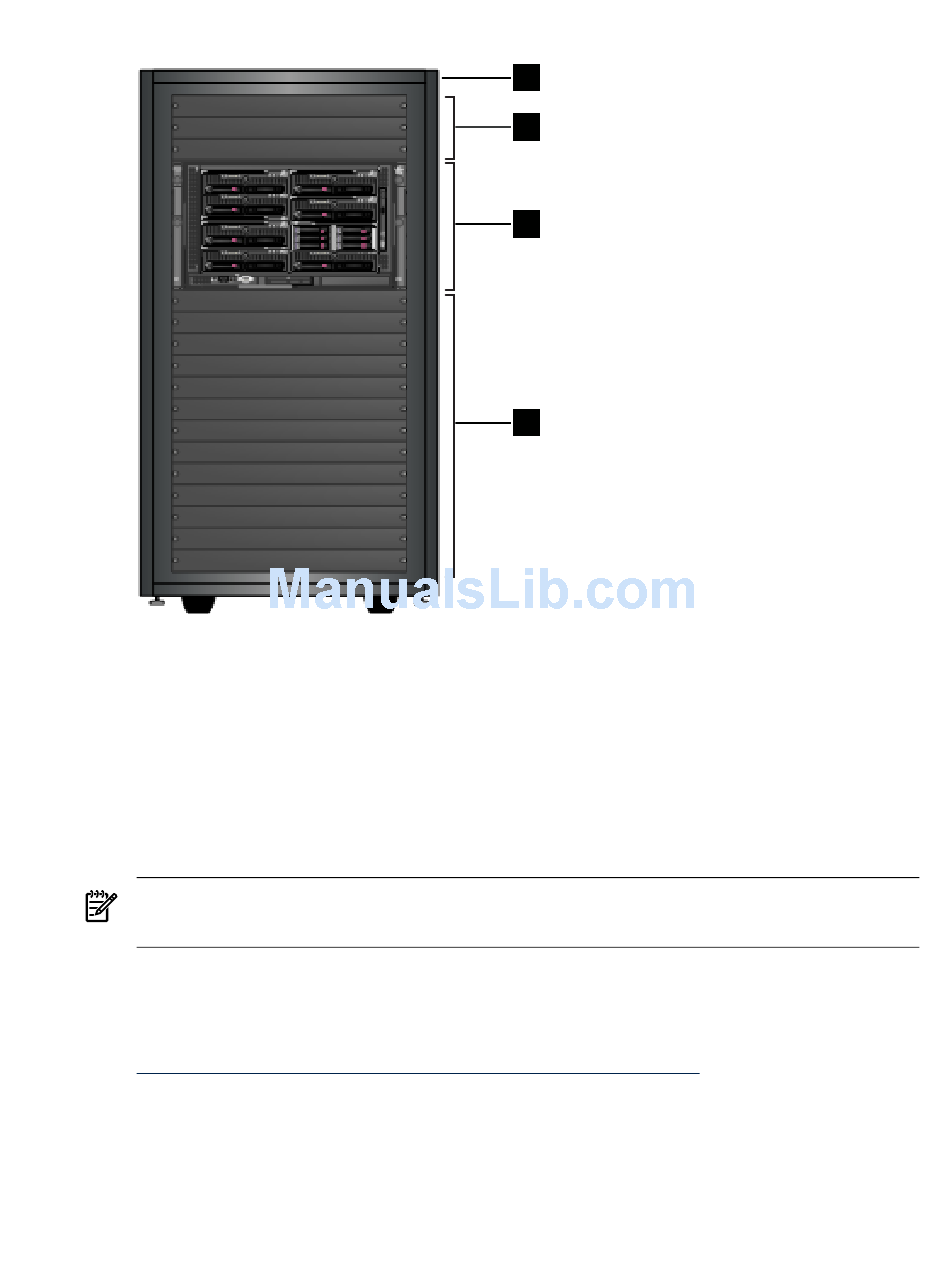

Figure 2-2 CP Workgroup System in a 22U Rack Without an External Control Node
Figure 2-2
shows the following cluster components:
1.
HP 10000 Series 22U rack.
2.
Filler panels to close up reserved space on the front of the rack.
3.
The HP BladeSystem c3000 enclosure
4.
Filler panels to close up reserved space on the front of the rack.
Additional storage may be provided by an HP StorageWorks SB40c storage blade installed in
the server bay next to the control node server blade. The SB40c may be configured with either
SAS or SATA disks. If the control node is a rack-mountable server, the SB40c cannot be used in
the system configuration.
Note:
Compute nodes cannot be attached to the HP SB40c storage blade
2.2 Site Preparation Guidelines for CP Workgroup System
For information on how to prepare your site to install the CP Workgroup System, see the HP
BladeSystem Site Planning Guide:
http://h71028.www7.hp.com/enterprise/cache/499697-0-0-0-121.html
1
2
3
4
2.2 Site Preparation Guidelines for CP Workgroup System
39
