Note:
See Appendix B
2.1.1 22U Cabinet with a c3000 Enclosure and an External Control Node
Figure 2-1 shows a typical CP Workgroup System with one HP BladeSystem c3000 Enclosure in
a 22U rack with an external control node.

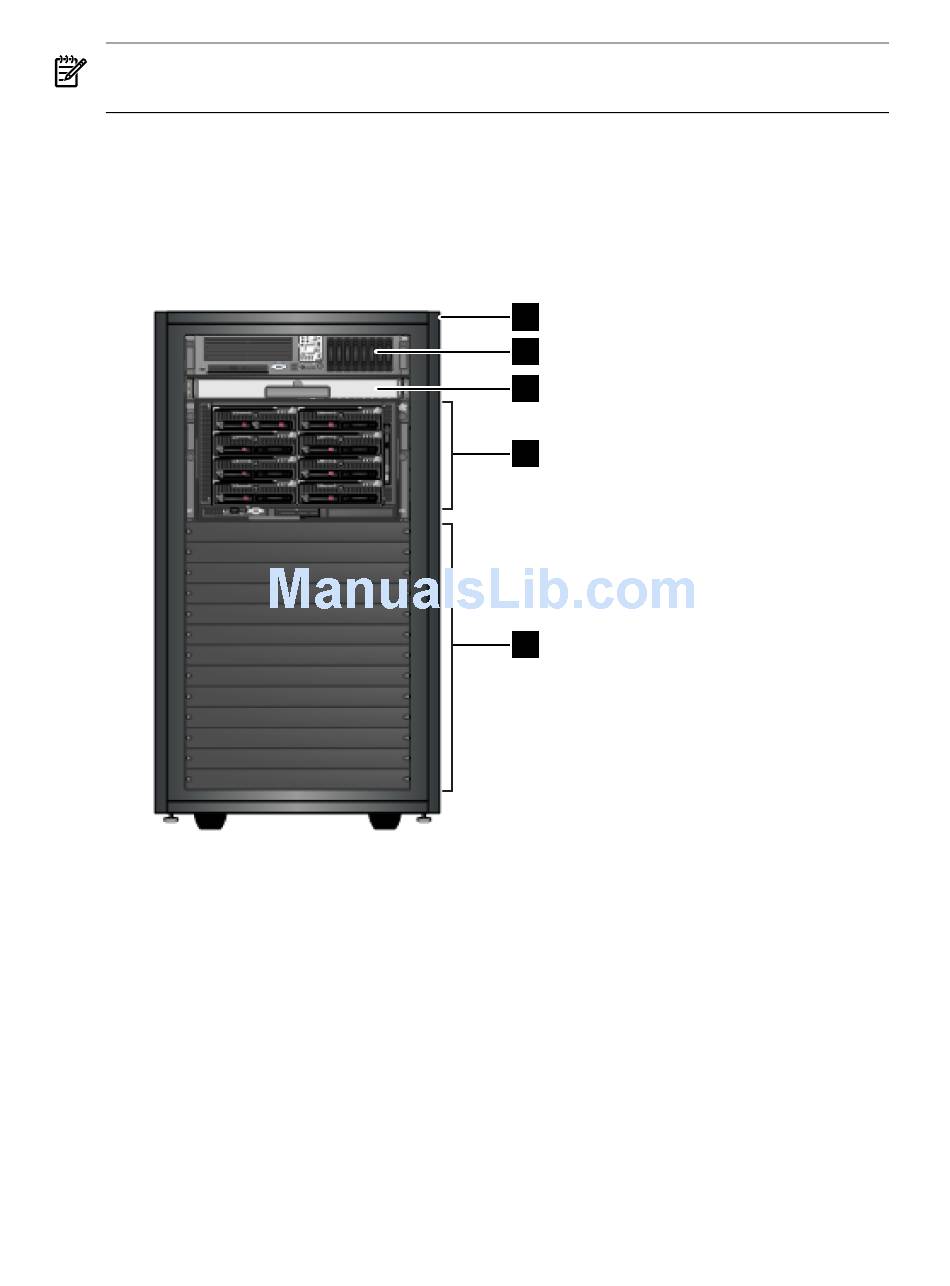

Figure 2-1 CP Workgroup System with a c3000 in a 22U Rack
The following list describes the callouts shown in
1. HP 10000 Series 22U rack.
2. DL140 or DL145 G3 external control node.
3. TFT7600 rack-mount keyboard and monitor.
4. The HP BladeSystem c3000 enclosure.
5. Filler panels to close up reserved space on the front of the rack.
2.1.2 22U Cabinet with a c3000 Enclosure without an External Control Node
Figure 2-2 shows a typical CP Workgroup System with one BladeSystem c3000 enclosure in a
22U HP 10000 Series rack with no external control node.
38 Cluster Platform Workgroup System
for the configuration diagrams and the cabling tables for CP Workgroup System.
1
2
3
4
5
Figure 2-1:
