Installation
Instructions

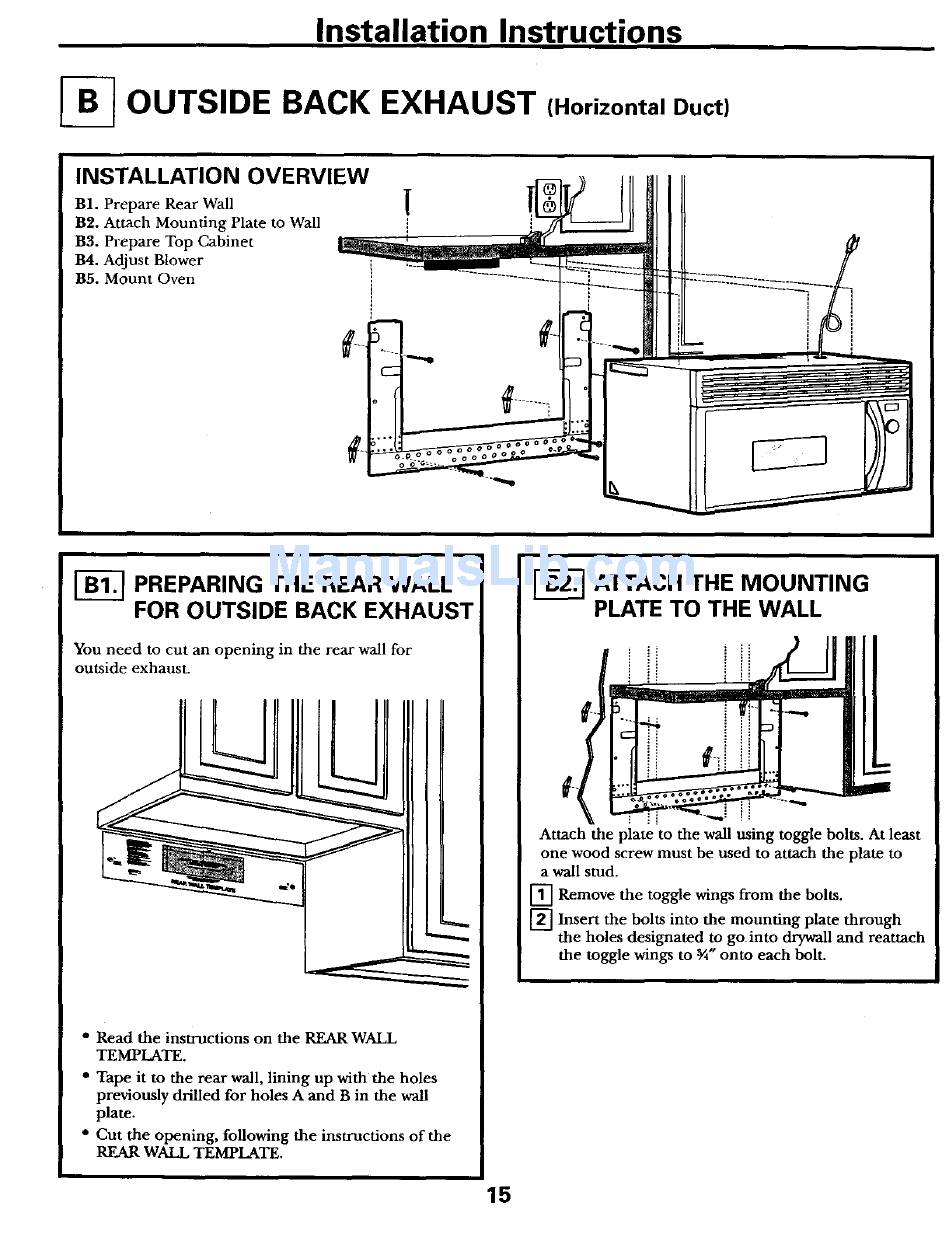

OUTSIDE BACK EXHAUST
(Horizontal
Duct)
INSTALLATION
OVERVIEW
B1. Prepare Rear Wall
B2. Attach Mounting Plate to Wall
B3. Prepare Top Cabinet
B4. Adjust Blower
B5. Mount Oven
1
I-_
PREPARING THE REAR WALL
FOR OUTSIDE
BACK EXHAUST
You need to cut an opening
in the rear wall for
outside exhaust.
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall
plate.
• Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
I-_
ATTACH THE MOUNTING
PLATE TO THE WALL
Attach
the plate
to the wall using
toggle
bolts. At least
one wood
screw must
be used to attach
the plate
to
a wall stud.
[]
Remove
the toggle
wings from
the bolts.
[]
Insert the bolts
into the mounting
plate
through
the holes designated
to go into drywall
and reattach
the toggle
wings
to _" onto
each bolt.
15
