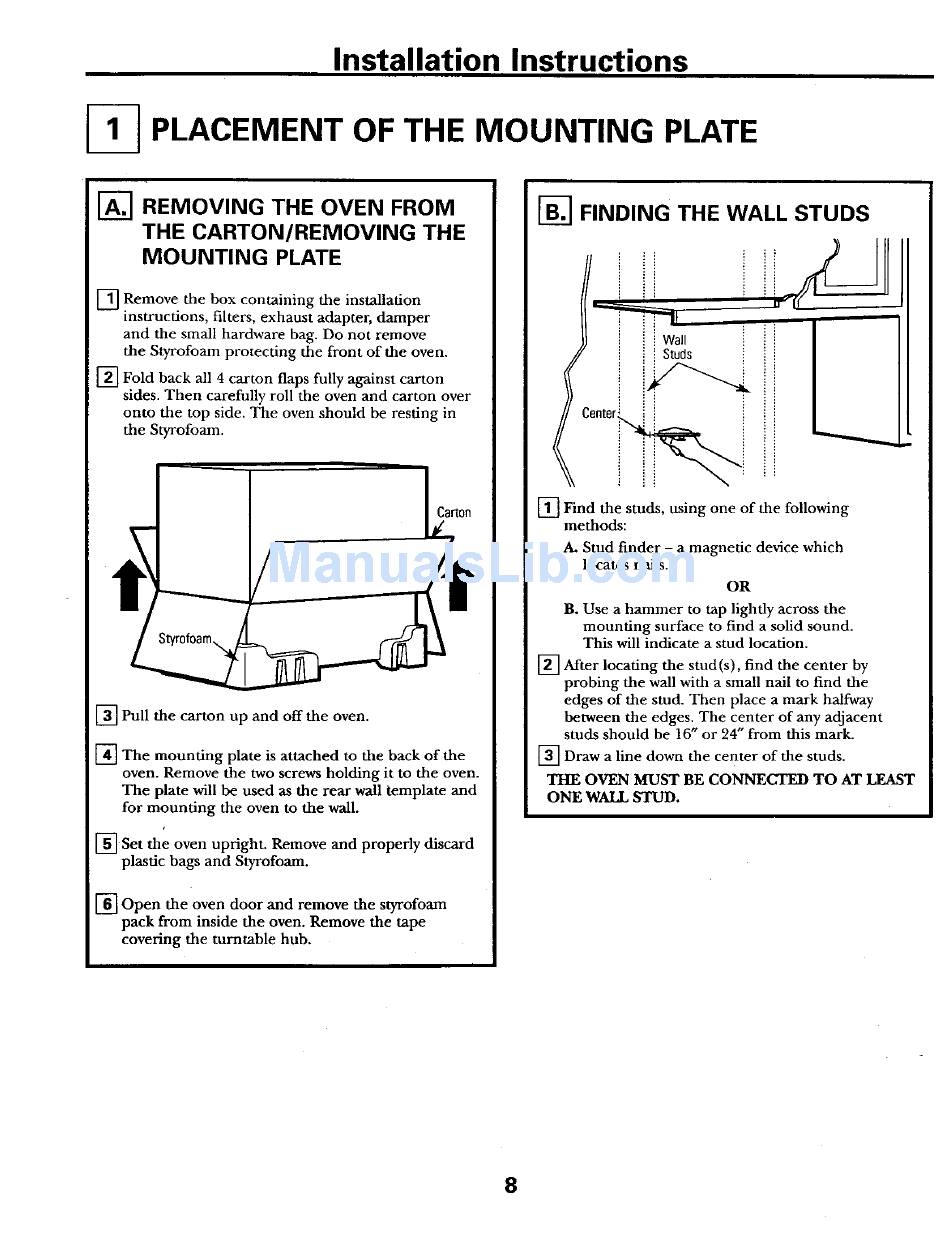

Installation Instructions
PLACEMENT OF THE MOUNTING
PLATE
I-_
REMOVING
THE OVEN FROM
THE CARTON/REMOVING
THE
MOUNTING
PLATE
[]
Remove the box containing
the installation
instructions,
filters, exhaust adapter, damper
and the small hardware
bag. Do not remove
the Styrofoam protecting
the front of the oven.
[]
Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton
over
onto the top side. The oven should be resting in
the Styrofoam.
[]
Pull the carton up and off the oven.
[_The
mounting
plate is attached
to the back of the
oven. Remove the two screws holding it to the oven.
The plate will be used as the rear wall template and
for mounting
the oven to the wall.
i
[_Set
the oven upright.
Remove and properly
discard
plastic bags and Styrofoam.
[]
Open
the oven
door
and
remove
the styrofoam
pack
from
inside
the oven.
Remove
the tape
covering
the turntable
hub.
[]
FINDING
THE WALL STUDS
ii wail
i i
Center_i
if!
[]
Find the studs, using one of the following
methods:
A. Stud finder - a magaaetic device which
locates nails.
OR
B. Use a hammer
to tap lighdy
across
the
mounting
surface
to find a solid sound.
This will indicate
a stud location.
[]
After
locating
the stud(s),
find the center
by
probing
the wall with a small nail to find file
edges
of the stud. Then
place a mark
halfway
between
the edges.
The
center
of any adjacent
studs should
be 16" or 24" from
this mark.
]Draw
a line down
the center
of the studs.
THE
OVEN
MUST
BE CONNECTED
TO AT LEAST
ONE WALL STUD.
8
