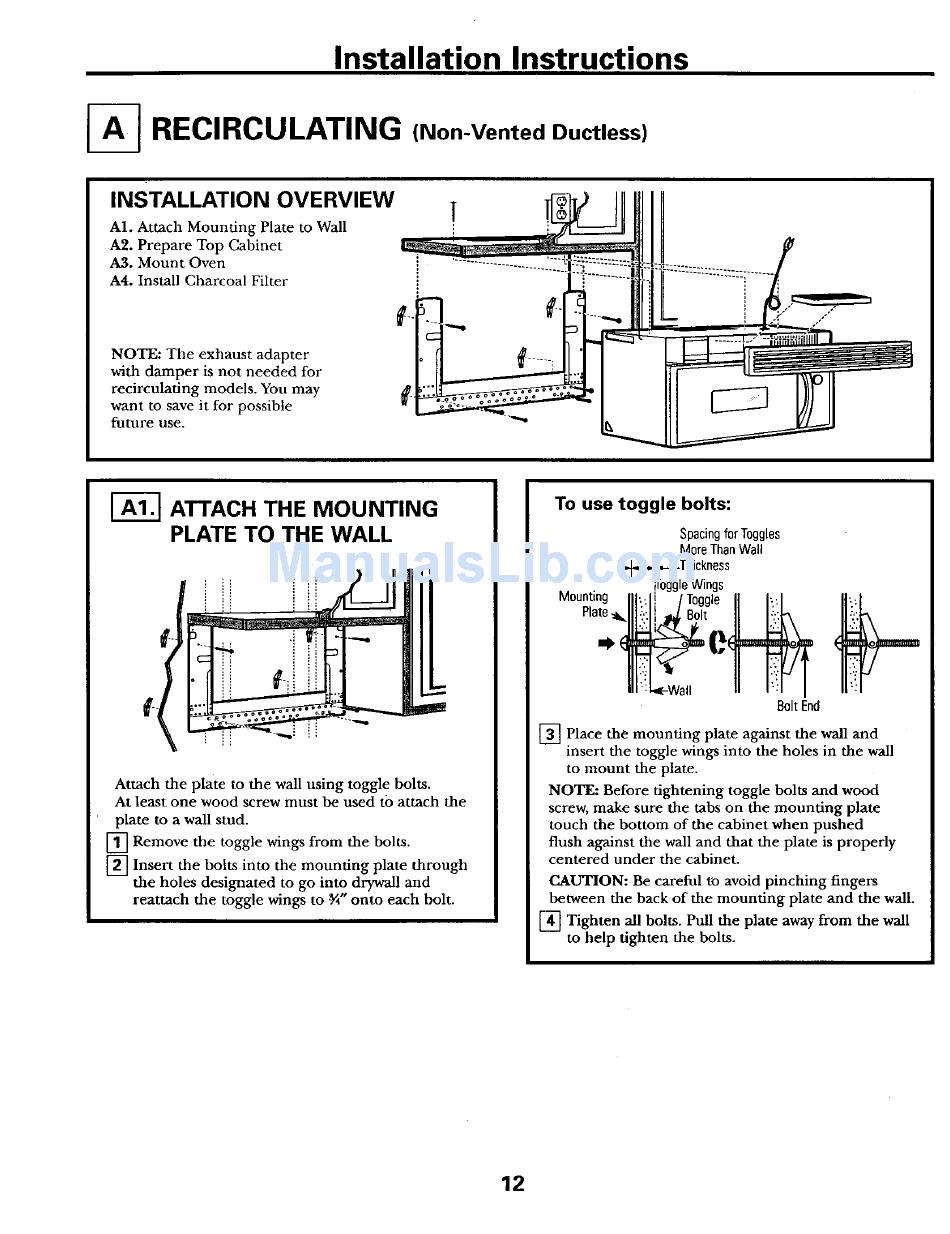

Installation Instructions
RECIRCULATING
(Non-Vented
Ductless)
INSTALLATION
OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare
Top Cabinet
A3. Mount Oven
A4. Install Charcoal
Filter
NOTE:
The
exhaust
adapter
with damper
is not needed
for
reeirculating
models.
You may
want
to save it for possible
future
use.
./
//
I-_
ATTACH THE MOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach the
plate to a wall stud.
[]
Remove the toggle wings from the bolts.
[2] Insert the bolts into the mounting
plate through
the holes designated
to go into drywall and
reattach
the toggle wings to _" onto each bolt.
To use toggle
bolts:
Spacing for Toggles
MoreThanWall
-J_._---Thickness
Mounting
Plate
Bolt End
[_] Place
the
the wall and
mounting
plate
against
insert
the toggle wings into
the holes
in the wall
to mount
the plate.
NOTE:
Before
tightening
toggle
bolts and wood
screw, make
sure
the tabs on the mounting
plate
touch
the bottom
of tile cabinet
when
pushed
flush against
the wall and
that the plate
is properly
centered
under
the cabinet.
CAUTION:
Be careful to avoid pinching
fingers
between the back of the mounting
plate and the wall.
[]
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
12
