Installation Instructions

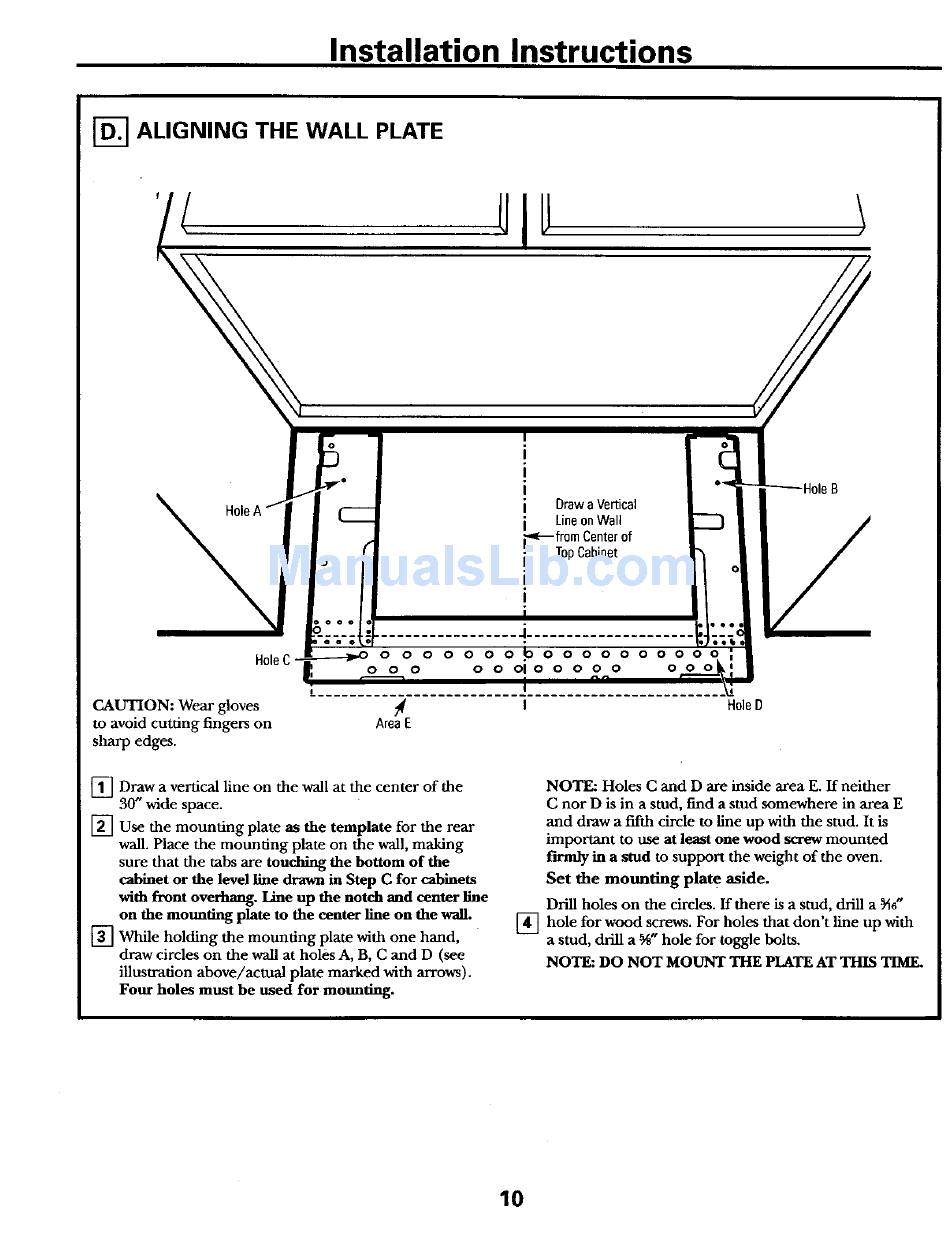

ALIGNING
THE WALL PLATE
HoleC
Drawa Vertical
Line onWall
• ,,e--frorn Centerof
TopCabinet
o
o
o
0
0
0
0
0
0
0
.b
0
0
0
0
O
0
0
0
0
0
0
0
0
O
O
OIO
O
O
O
O
0
0
I
CAUTION: Wear gloves
to avoid cutting fingers on
sharp edges.
_f
I
Area E
Hole D
[]
Draw a vertical line on the wall at the center of the
30" wide space.
[_Use
the mounting
plate as the template
for the rear
wall. Place the mounting
plate on the wall, making
sure that the tabs are touching the bottom of the
cab'met or the level line drawn in Step C for cab'mets
with front overhang. Line up the notch and center line
on the mounting plate to the center line on the wall.
[]
While holding the mounting plate with one hand,
draw circles on the wall at holes A, B, C and D (see
illustration above/actual
plate marked with arrows).
Four holes must be used for mounting.
[]
NOTE: Holes C and D are inside area E, ff neither
C nor D is in a stud, find a stud somewhere
in area E
and draw a fifth circle to line up with the stud. It is
important
to use at least one wood sca'ew mounted
firmly in a stud to support the weight of the oven.
Set the mounting
plat e aside.
Drill holes on the circles, ff there is a stud, drill a _i6"
hole for wood screws. For holes that don't line up with
a stud, drill a _" hole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
