Step 5: Connect
Other Devices to
the Dxr2

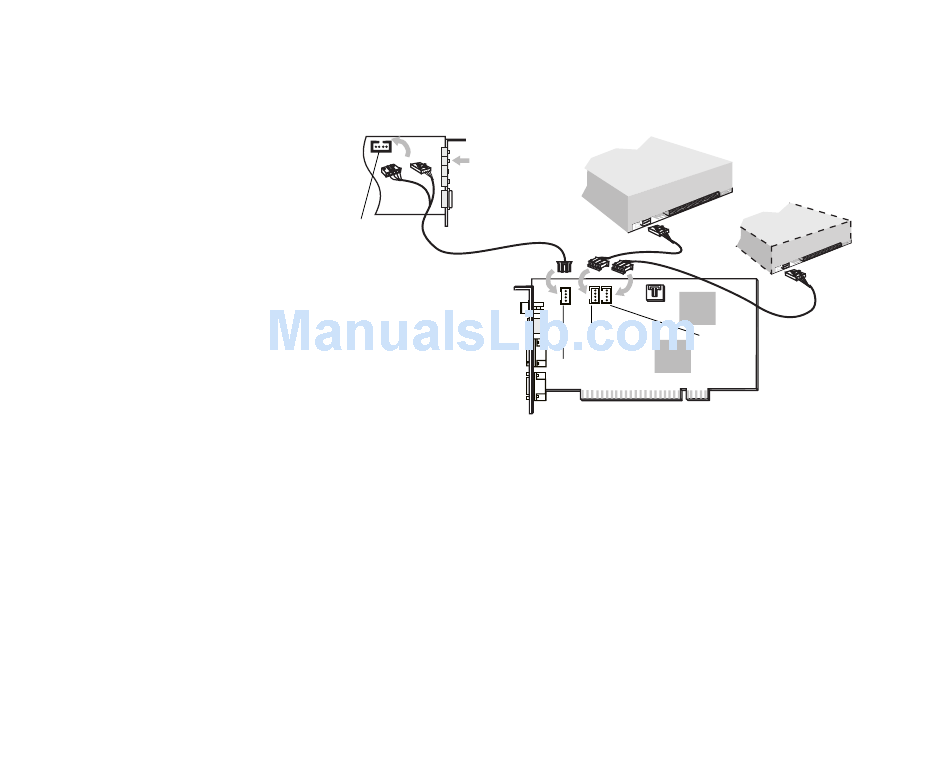

To connect devices to the Dxr2 decoder card:
1. Connect the PC-DVD drive and other devices (CD-ROM drive, audio card, etc.) to the Dxr2
using the audio cables.
Audio
card
CD audio
connector
Note: Connect only one of the CD
audio connector's to your audio
card. Refer to your audio card's
documentation for the location of
the CD audio connector.
Connect powered
speakers to the
Line Out jack.
Dual connector
audio cable
Audio In (1)
connector
Audio Out
connector
PC-DVD drive
CD-ROM drive
JST to ATAPI
audio cable
DIGITAL_OUT
CD audio
Audio In (2 )
cable
connector
Dxr2 decoder card
Installing PC-DVD Encore 12
