Be sure that you are connecting
the correct end of the PC-DVD
audio cable to the drive. See the
figure on page 4 for a detail of the
connector for the Dxr2 decoder
card—use the other end for the
PC-DVD drive.
3.

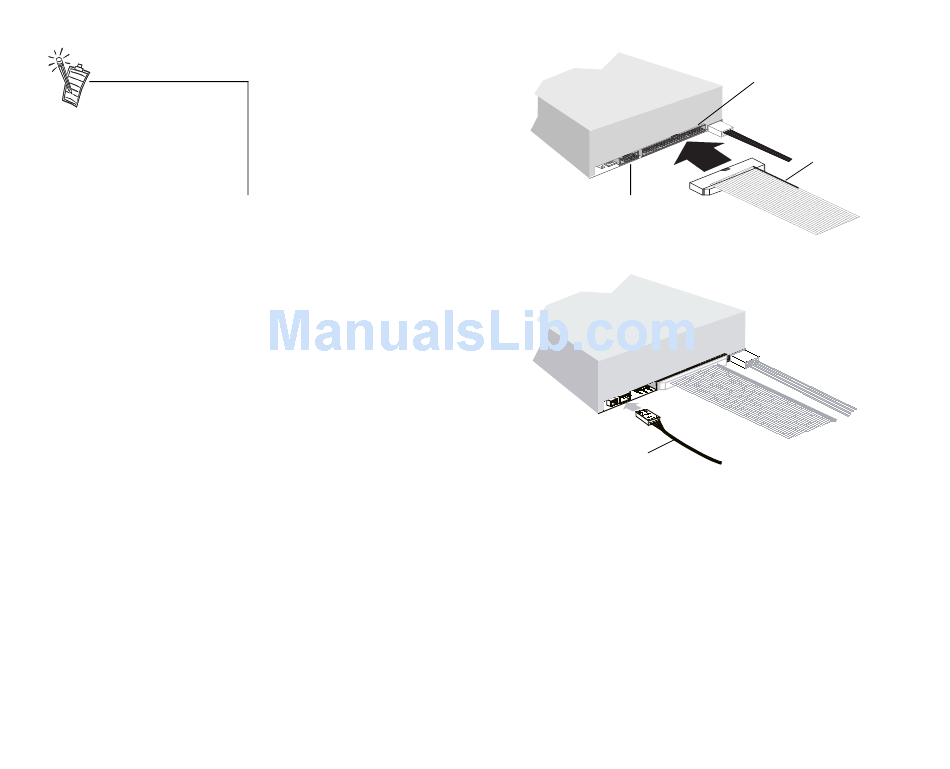

Connect the IDE data cable to
the PC-DVD drive.
4.
Connect the PC-DVD audio
cable to the PC-DVD drive.
Pin1
IDE data
IDE data
connector
cable
PC-DVD
audio cable
Note: Align the
colored stripe on the
IDE data cable to
pin 1 of the IDE data
connector.
Colored
stripe
Installing PC-DVD Encore 8
