Turn off the power to your
computer before inserting the
paper clip into the Eject hole.

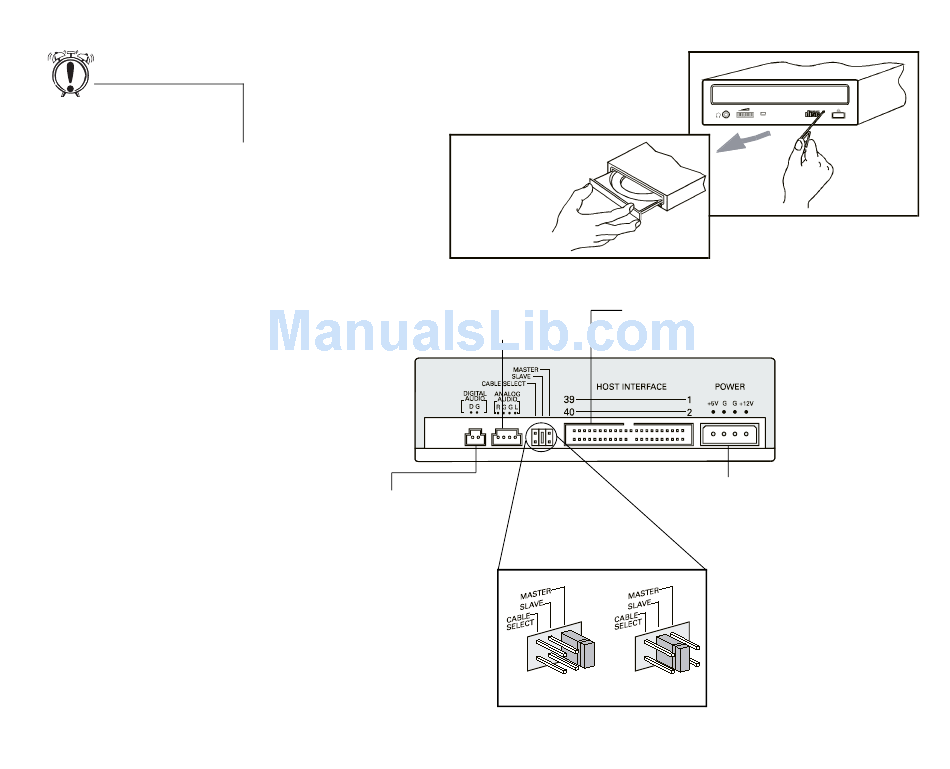

Rear Panel

To open the disc tray manually:
CD Audio connector
sends audio from the PC-DVD drive through
the Dxr2 card to the audio card when
connected by a CD audio cable.
Digital Audio connector
connects to a digital audio tape (DAT) or
professional audio system for digital
recording.
Note: This connector follows the EBU-
IEC958 standard set by the European
Broadcast Union (EBU).
Pull the ejected
tray out gently.
Avoid using
excessive force to
pull out the tray as
this may damage
your drive
Enhanced IDE Data connector
transfers data between the PC-DVD drive and
devices, such as your computer's hard disk and
motherboard, when connected by an IDE data cable.
Master
Power In connector
connects an electrical power cable
from your PC power supply to the
drive.
Master/Slave jumper
sets the PC-DVD drive as master or
slave when you connect it to another
PC-DVD or CD-ROM drive.
Note: Cable Select is reserved and
must not be used.
Slave
(default)
Getting Acquainted with PC-DVD Encore 2
