Primary IDE Connector
with Hard Disk Drive
To connect the PC-DVD drive to the primary IDE connector with the hard disk:
1.
Back up the files on your hard disk drive before you proceed.
2.
Set the jumpers on the PC-DVD drive and the hard disk drive (see page 2). Set the hard disk drive
to master; set the PC-DVD drive to slave.
3.
Connect the power cable and IDE data cable to your hard disk drive.

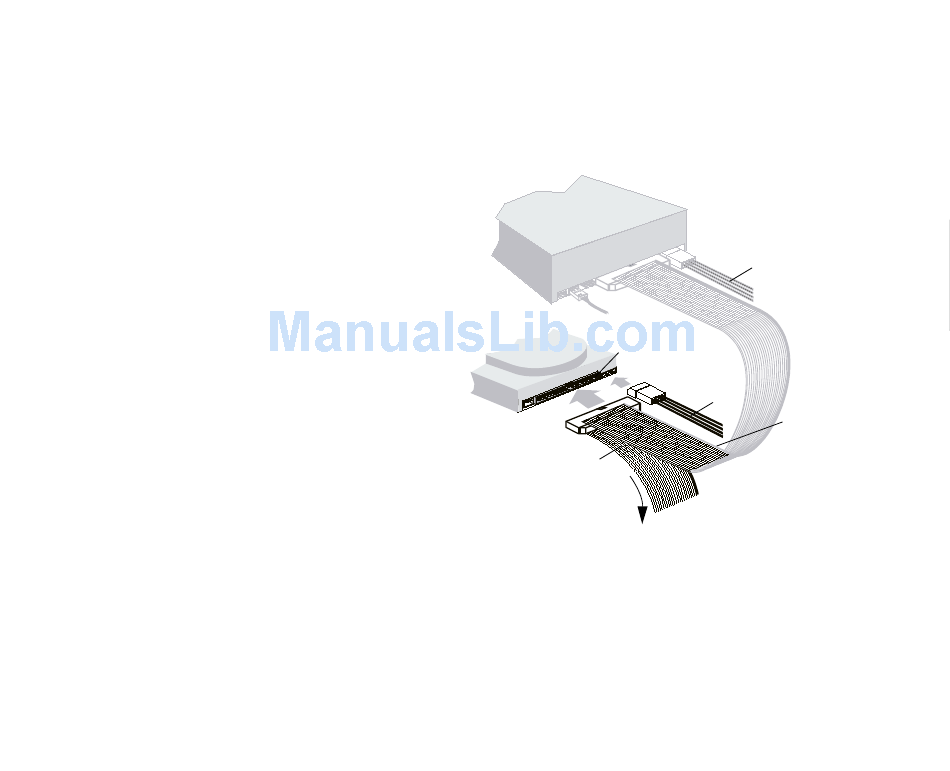

PC-DVD drive
(slave)
Hard disk drive
(master)
Note: Align the colored
stripe of the IDE data cable
to pin 1 of the hard disk
drive's data connector.
4.
Connect the PC-DVD audio cable to the Dxr2 decoder card's Audio In connector (see figure on
page 3).
5.
Slide the drives back into place and secure them to the computer (screws are provided for the PC-
DVD drive).
Proceed to "Step 5: Connect Other Devices to the Dxr2. "
6.
PC-DVD
audio cable
Pin 1
Power
cable
IDE data cable
To primary IDE
connector.
Power
cable
Colored
stripe
Installing PC-DVD Encore 11
