Step 2: Insert the
Dxr2 Decoder
Card
Use slot one or the available slot
having the highest priority in
your computer for best
performance and compatibility.
See your computer's manual for
information on expansion slots
and their priorities.
Do not force the Dxr2 decoder
card into the slot. If it does not fit
properly, remove it and try again.
The Dxr2 decoder card fits a PCI expansion slot.
To install the Dxr2 decoder card:
1. Turn off the power to your computer and any connected devices. Disconnect the power cord
from the electrical source.
2. Touch a metal surface on the computer to ground
yourself and discharge any static electricity.
3. Remove the cover from the computer.

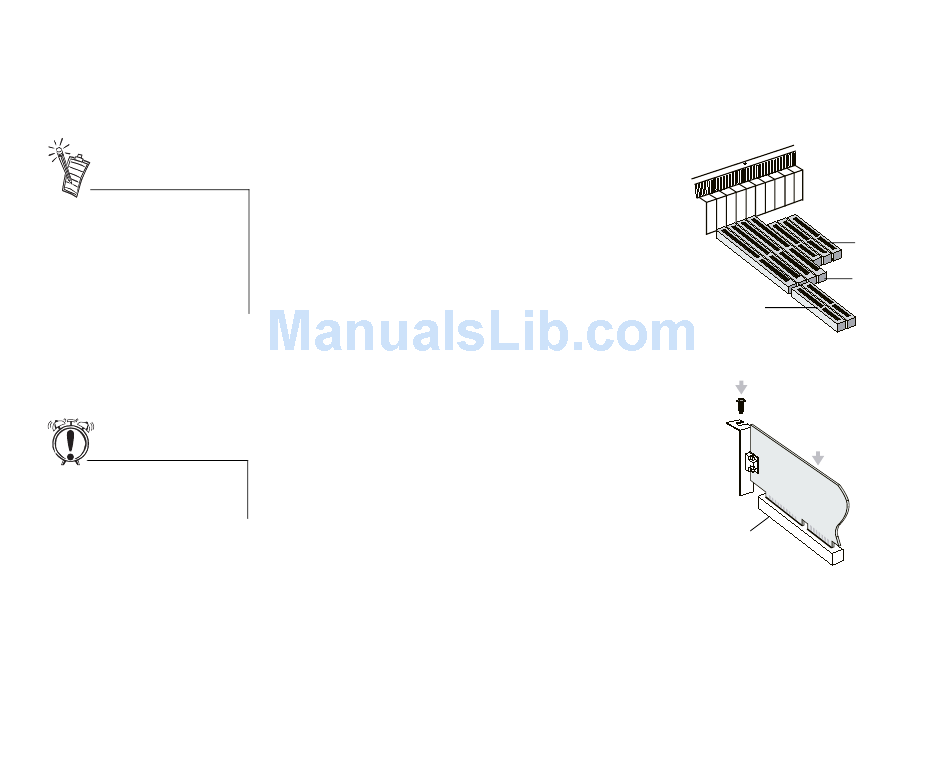

4. Locate a free PCI expansion slot for the Dxr2
decoder card. The relative length and position of the
PCI expansion slots are shown in the figure to the
right.
5. Remove the metal plate from the expansion slot.
6. Align the Dxr2 decoder card with the PCI slot and
press it into the slot as shown. The card must sit firmly
inside the PCI slot.
7. Secure the Dxr2 decoder card in the slot by replacing the
screw removed with the slot cover.
Proceed to "Step 3: Install the Drive in Your Computer. "
8.
Note: Refer to
your computer's
manual for help in
locating a slot.
PCI slot
ISA slot
VL slot
B. Fasten the card to
the slot with a screw.
A. Press the Dxr2
decoder card
into the slot.
PCI slot
Installing PC-DVD Encore 6
