Dxr2 Decoder Card - Creative PC-DVD 5x Drive Dxr2 Decoder Card User Manual

Dxr2 Decoder
Card
The DynamicXtended Resolution, or Dxr2, decoder card allows you to playback MPEG-1, MPEG-2, and
digital video discs (DVDs) on your monitor at resolutions up to 1280x1024 pixels and a rate of 30 frames
per second.

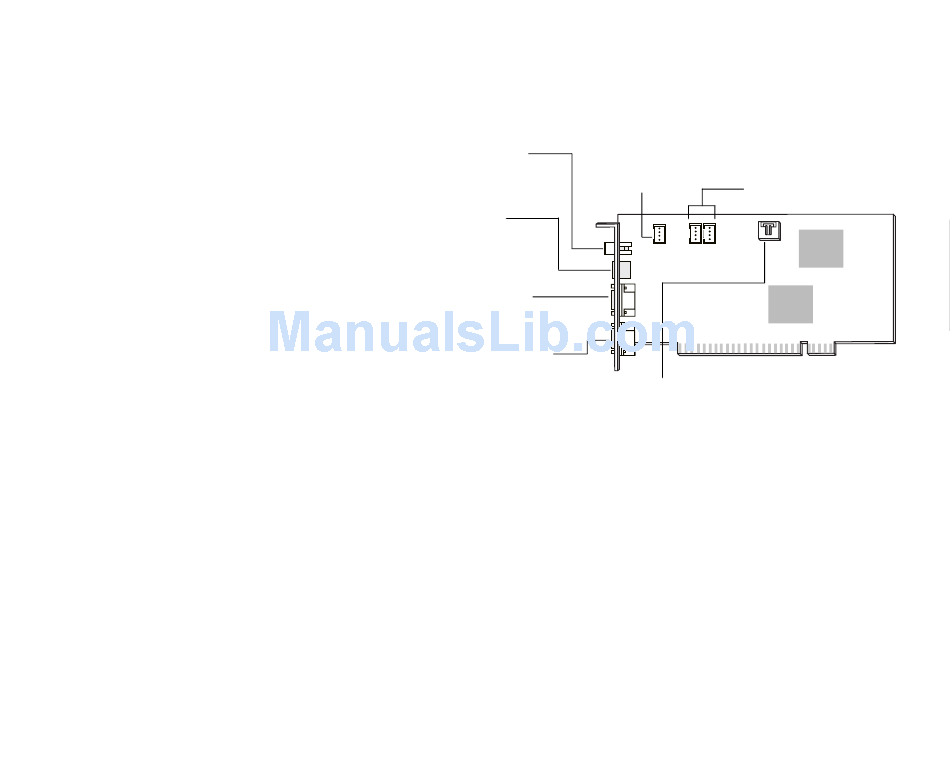

Your Dxr2 decoder card has the jacks and connectors shown below.
Dolby Digital (AC-3) S/PDIF jack
connects an external Dolby Digital device that
supports AC-3 specifications.
TV Out jack
connects to your television monitor
using the TV Out cable provided.
VGA In connector
connects to the VGA card in your computer
using the VGA loopback cable. The
loopback cable sends video signals from
the VGA card to the Dxr2 decoder card.
Monitor Out connector
connects to the VGA monitor using the VGA
monitor cable, allowing you to send video signals
from the Dxr2 decoder card to the VGA monitor.
Audio Out connector
connects to the CD Audio In connectors
audio connector of your
connects to your PC-DVD
audio card.
drive and/or CD-ROM drive.
DIGITAL_OUT
Digital Out connector
2
connects to the I S connector on your audio card. NOTE:
Your Dxr2 decoder card may not have this connector.
Your audio card may not have this connector. Refer to
your audio card manual for more information.
Getting Acquainted with PC-DVD Encore 3
