– The lower bay top shelf tape drive (tape drive 2, SCSI ID 5) is on
SCSI Port A and is terminated on the tape drive.
– The lower bay middle shelf tape drive (tape drive 1, SCSI ID 4) is on
SCSI Port B and is terminated on the tape drive.
– The lower bay bottom shelf tape drive (tape drive 0, SCSI ID 3) is on
SCSI Port C and is terminated on the tape drive.
– The tape drive terminators are 68-pin differential terminators (part
number 0415619).

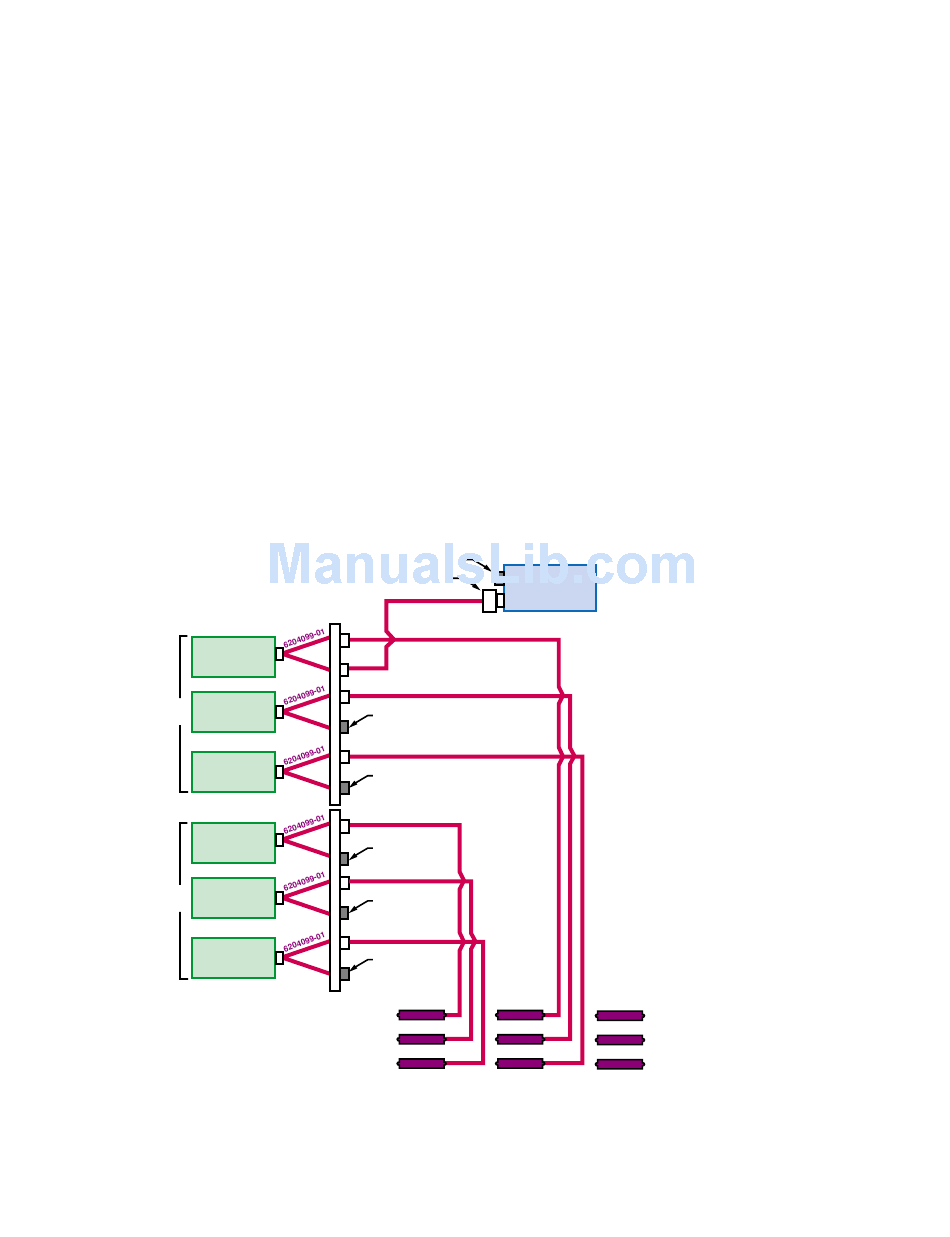

Figure 8–15: TL896 Six-Bus Configuration
TZ89 Drive 5
SCSI Address 5
(top shelf)
TZ89 Drive 4
Upper
SCSI Address 4
Bay
(middle shelf)
TZ89 Drive 3
SCSI Address 3
(bottom shelf)
TZ89 Drive 2
SCSI Address 5
(top shelf)
TZ89 Drive 1
Lower
SCSI Address 4
Bay
(middle shelf)
TZ89 Drive 0
SCSI Address 3
(bottom shelf)
8–46 Configuring a Shared SCSI Bus for Tape Drive Use
0415498 (50-Pin Micro-D Terminator)
0425031 (SCSI Diff Feed Through)
0425017 (Cable)
0415619
(68-pin Terminator)
0415619
(68-pin Terminator)
0415619
(68-pin Terminator)
0415619
(68-pin Terminator)
0415619
(68-pin Terminator)
SCSI Port A
(Rear Connector Panel)
SCSI Port B
SCSI Port C
MUC
SCSI Address 2
SCSI Port D
SCSI Port G
SCSI Port E
SCSI Port H
SCSI Port F
SCSI Port I
ZK-1327U-AI
